Product Specifications
| Prod Model: |
GST800\GST900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color & Page: |
Multi-Colour Printing Press |
| Structure: |
Stop-cylinder Press |
| Style: |
Screen-process Printing Press |
| Type: |
Automatic Screen Printing Machine |
| Print Interface: |
USB3.0 |
| System Supported: |
Windowsxp32 |
Product Description

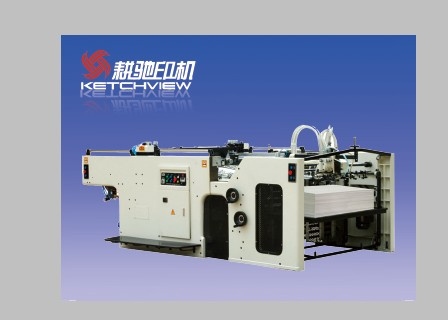

GST 800 Automatic？Stop-cylinder？Screen？Printing？Machine
GST？Series？Automatic？Stop-cylinder？Screen？Printing？Machine？are？upgrade？models？from？Rotary？Cylinder？Printing？Machine？recent？years.？This？kind？of？machine？has？adopted？classical？"Stop-cylinder"？printing？movement？instead？of？the？original？"reciprocating？movement".？Therefore,？it？not？only？ensures？the？paper？accurate？position？before？scratch-？print,？but？also？reduce？the？producing？waster？rate.？Besides,？there？is？little？impact？with？such？high？speeds？and？revolving,？which？also？improves？the？register？precision.？？
？
Technical？Parameters:
？？？？？？
MODELGST-720GST-800GST-1020GST-1050
Max.Paper？Size(mm)720×520800×6001020×7201050×750
Min.Paper？Size(mm)350×270350×270560×350560×350
Max.Printing？Area(mm)720×510800×5901020×7101050×740
*Paper？Thickness(g/m2？)90-25090-250120-350120-350
*Printing？Speed(p/h)1000--36001000--33001000--30001000--3000
Screen？Frame？Size:？(mm)880×8801070×10701280×11401300×1170
Total？Power:(kw)9111515
Total？Weight:(kg)3500400055005500
Figure？Dimension(mm)4100×2400×15004280×2480×17104800×2800×18004800×2800×1800
？*:？The？figures？may？be？changed？depending？upon？the？printing？materials？and？printing？conditions.
？ ？ ？ ？ ？ ？ ？ ？ ？ ？？
Shanghai Ketchview Printing Machinery Co, Ltd. Is located in Shanghai, established in 2004. Providing quality products, excellent services, competitive prices and prompt delivery, Especially, we have sveral experienced engineers. We are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more information.
