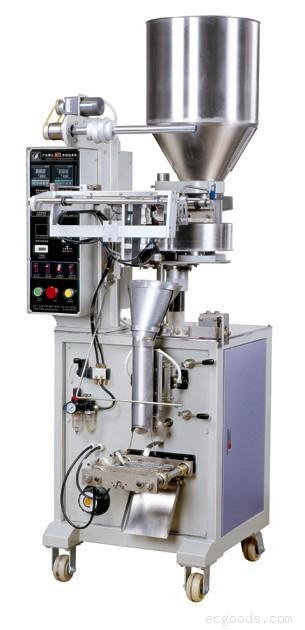

The HTGFseries Automatic Granule Packaging Machine is designed and manufactured by advanced science and technology in the world. It has reliable quality, high efficiency and beautiful shape. As regards its automatic control system, we have adopted advanced photo electricity track planet differential compensating mode and automatic constant-temperature control mechanism, which makes our machine has very fast packaging speed. Moreover, our machine can carry out step less speed adjustment, and automatically finish the processes of bag making, computation, filling, sealing, cutting, counting and printing number on the bag. It can be used for various compound packaging materials.
Scope of application:
Applicable to the pharmaceutical, food, chemical and other industries the loose of cohesionless granular materials packaging. For example: Pharmaceutical granules, plant seed, monosodium glutamate, coffee powder, washing powder,
Instant noodles seasoning, drying agent, sugar etc...
Model |
H100 |
H300 |
H500 |
Size of Bag(mm) L |
50-150 |
50-300 |
100-500 |
Size of Bag(mm) W |
25-120 |
70-190 |
260-600 |
Film Width (mm) |
60-240 |
160-380 |
260-600 |
Filling Volume (ml) |
5-100 |
50-500 |
200-1000 |
Production Capacity(bags/min) |
40-80 |
40-80 |
30-60 |
Power(kw) |
1.6 |
1.65 |
3.5 |
Weight (kg) |
300 |
480 |
800 |
Air Pressure (Mpa) |
0.6 |
0.65 |
0.65 |
Air Consumption L/Min |
100 |
100 |
200 |
Dimension (L×W×H)(mm) |
760X980X1700 |
900X1120X23600 |
900X2000X2040 |
