Product Specifications
| Prod Model: |
HY-U |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension(L*W*H): |
6600*2000*2230mm |
| Weight: |
Weight: 2000kg |
| Power(W): |
7.5kw |
| Consume Water: |
800kg Circle |
| Consuming Air Tolerance: |
1.5 M3 |
| Volume Of Storing Fluid Vessel: |
50L |
| Single Dosage: |
0.5-5ml |
| Output: |
8000-1000 Granulations/H |
| Automatic Grade: |
Fully Automatic |
| Material Type: |
Liquid |
| Dosing Device: |
Capacity Cup |
| Filling Principle: |
Atmospheric Pressure |
| Structure: |
Linear |
| Packaging Material: |
Plastic |
| Type: |
Suppository Filling and Sealing Machine |
Product Description

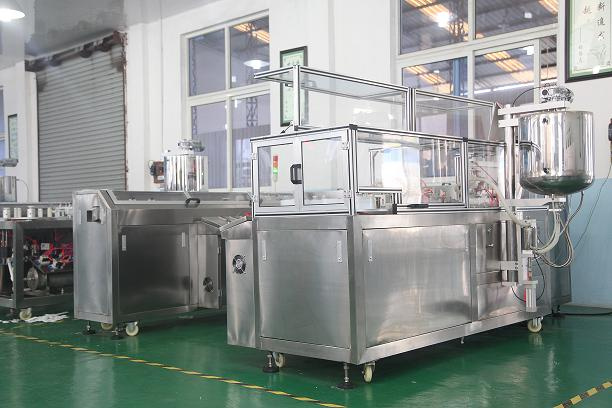

HY-Z automatic suppository filling machine
Main application:
The full-automatic suppositories production unit is a use of PLC do the whole control and use of pneumatic mode for the automatic production line source of power. This equipment combining foreign advanced technology and domestic actual situation, the design is novel, the operation is simple, is a highly efficient and stable production unit of automatic suppositories. Its leading position in domestic technical content. In the process of development, we need to consider the user everywhere, adjustable and accuracy can confirm the work, with different parameters, the equipment can mold production of different shapes and specifications of the suppositories can sue different packing material(PVC, PE, PVC/AL/PE Compound film), eliminating unqualified products etc.
Working Principle:
The rolled plastic sheet material(PVC or PVC/PE) is pressed positively to blow and make a statue to take shap,and enter into filling procedure automatically,stirred equally drug fluid to nul nutshell automatically through high precise dosing pump,and is sheard into multi-stripiso -segment.Then it will become solid cork granulation through much time cryo-stereotypia which will realize conversation from fluid to solid.At last,it will be produced to end product suppository by mending form,sealing,beating batch number and shearing working procedure.
Mian Technical Parameters:
Production capacity |
8000-12000 pieces/hour |
Dose per unit |
0.5-5 ml |
Deviation |
±1% |
Adapting base material |
Emi-synthesis fatty acid lipo-glycerol, glycerol gelatin, carbowax |
Suppository shape |
Bullet, torpedo, duck-mouth
|
Storing vessel volume |
50 L |
Air pressure |
0.6Mpa |
Water consumption |
800KG/h |
Air consumption |
1.5m3/min |
| Working voltage | 50Hz AC 380V |
| Total powder | 7.5kw |
| Machine weight | 1500kg |
| External dimension | 3470*3480*2230mm |
External dimension | 3470*3480*2230mm |
Technical characteristic:
1,Using insert filling,accurate in position,non-dribbling drug,non-hanging wall,high precise in counting.
2,Be wide in suitability,can be used to fill high gluing degree gelation group and the traditional Chinese medicine ware.
3.Using PLC written formula control and industry grade person-machine interface operation,possessing characteristics of high degree automation/convenience in adjustment/high precise thermo-control/reliability in action and steady in runing etc.
4,Having big volume storing fluid vessel,laying homeothermia/stirring and fluid surface autocontrol assemblly
5.Relieving worker's physical labor strength for lower position of filling drug fluid ,laying cycling to supply fluid and keeping thermo equipment of channel pathways,and it will ensure drug fluid not be coagulated when machine stop.
6.One side operation and better sight.
Our advantages :
1, Our suppository equipment bring in the Italy Sharon technology.
2, The equipment same type of Italy Sharon costs about $ 1.2 million.
3, After decades of technological improvements and market feedback, equipment performance become more mature and more stable
4, We present the highest market share in China
5, Most accessories use international imported brands
6, There are a number of independent research and development of technology to extend the life of wearing parts
7, Pass through a number of domestic and foreign certification authority
8, Among similar exported products, ours accounting for 90%.
9.We are factory near Shanghai Pudong international airport, very convenient to visit our factory.
