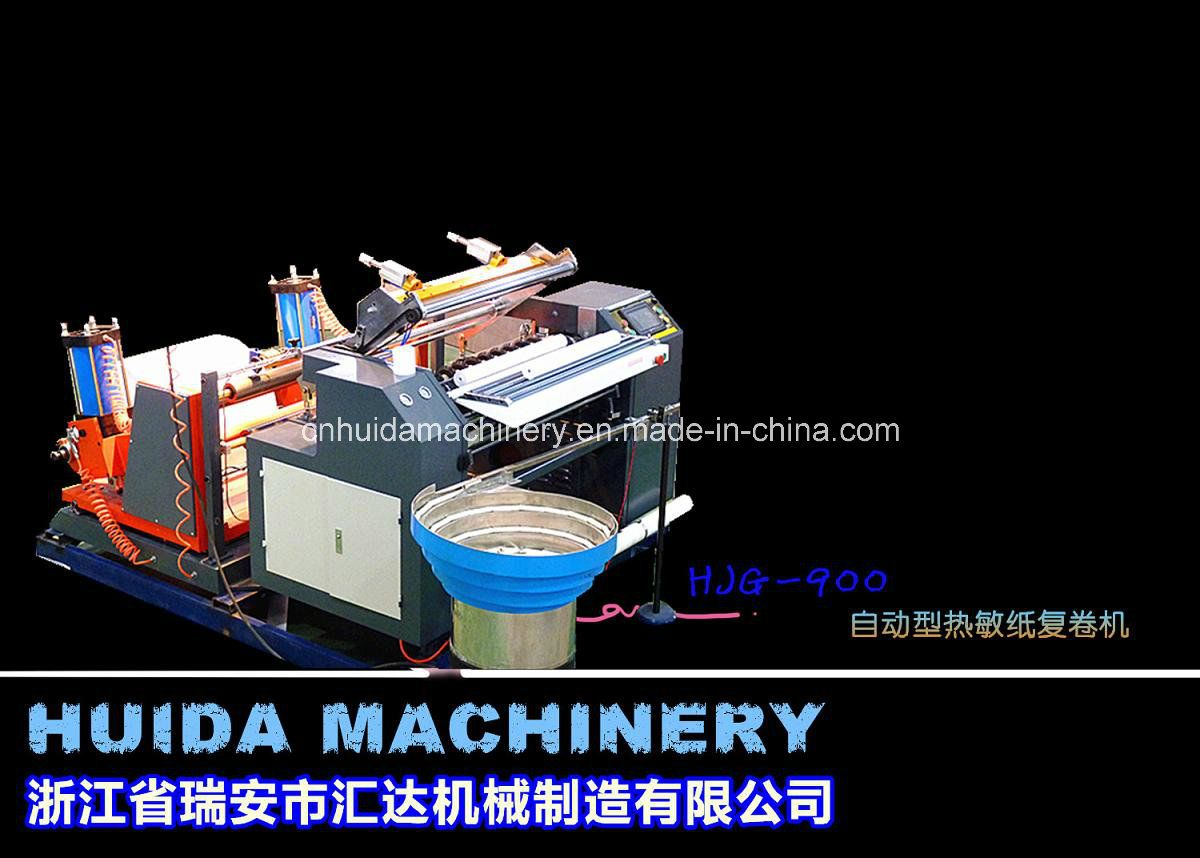

Automatic Thermal Paper Cutting Machine with Core Inserting Device
Product Specifications
| Prod Model: |
HJG-900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Width Of Machine: |
900mm |
| Work Method: |
Round Knife Cutting |
| Type: |
Small Coil Paper Slitting Machine |
| Classification: |
2 |
Product Description
This is new type thermal paper slitting machine which designed by our technician group in 2014 year.
This thermal paper slitting machine assemble one automatic paper core inserting device which can let the paper cores or plastic cores to insert the shaft automatically.
Before this step are made by operator with hand, it will waste too much time. More and more client reply to improve this point, after many years working, we have resolve this problem.
This automatic paper core inserting device's speed can be matched with thermal paper slitting machine operating speed, only push the cores into the device, the cores can be inserted to the shaft one by one with driven by the device's shaking.
The specification of this new thermal paper slitting machine as below
1. Material: 45-200g paper, thermal paper, cash register, ATM roll etc
2 The maximum width of the jumbo thermal paper reel: 900mm
3.The width of the small slitted reel by the machine: 30-900mm
4 Working speed: 120m/min
5 Slitting speed: 5-150m/min
6 The maximum unwinding diameter: ¢1200mm
7 The unwinding shaft: locked ¢3" air expanding shaft
8 Unwinding tension force 10N
9 The maximum rewinding diameter: ¢220mm
10 The rewinding shaft: the locked¢3" air expanding shaft
11 The main motor: 2.2 KW frequence inverter control
12 The fan motor: 0.55 kw single phase motor
13 The transimmission way: chain, gear and synchronization strap.
14 Slit: round cutter(the size is according to the machine)
15. Shaft: ¢80 hard aluminium alloy
16. Length of guide rod: 920mm
17 Machine material: steel board and cast iron
18. Working voltage: three phase four line, 380V, 50HZ
19. Total power: 4.5 kw
Ruian Huida Machinery Manufacturer Company Ltd. We registered in 2003 year but we started to produce the automatic thermal paper slitting machine since 1995. Then we have cumulated more than 20 years experience to produce the machinery.
We mainly produce the thermal paper slitting machine, cash register paper roll slitting machine, FAX/ATM/POS paper roll slitting machine, fully automatic slitting rewinding machine, fully automatic roll to sheet cutting machine, automatic paper sheet cutting machine, paper tube machine, paper tube cutting machine, paper core machine etc
Besides, we also produce some machine parts, like blades, shafts, all kinds of springs etc
We know more about thermal paper rolls produce process. Besides we are one professional thermal paper slitting machine manufacturer, we also know the correspond thermal paper cores, thermal paper package etc.
Automatic roll to sheet cutting machine is our another main product. We can not only produce semi-automatic simple roll sheet cutting machine, but also we can produce the fully automatic rotary type roll sheet cutting machine with four or six jumbo rolls. It adopt the advanced technology to guarantee the roll sheet cutting machine's working stable.
About detail, please browse our website: HTTP: // www.dragon-machine.com
Another paper tube machine is one of our major products, we can produce different type paper tube machine and paper tube cutting machine.
For detail paper core machine, please view: HTTP: // www.paper-core-machine.com
Our factory located in Ruian City which has many printing machine manufacturer, plastic machine manufacturer, pharmaceutical machinery manufacturer etc. It is convenience to arrive our factory. There is Wenzhou Yongqiang airport near our city. Warmly welcome the customer from all over the world to visit our factory and see our thermal paper slitting machine and roll sheet cutting machine.
