Automatic Transformer Coil Winding Machine (SS600)
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,EXW,others |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union |

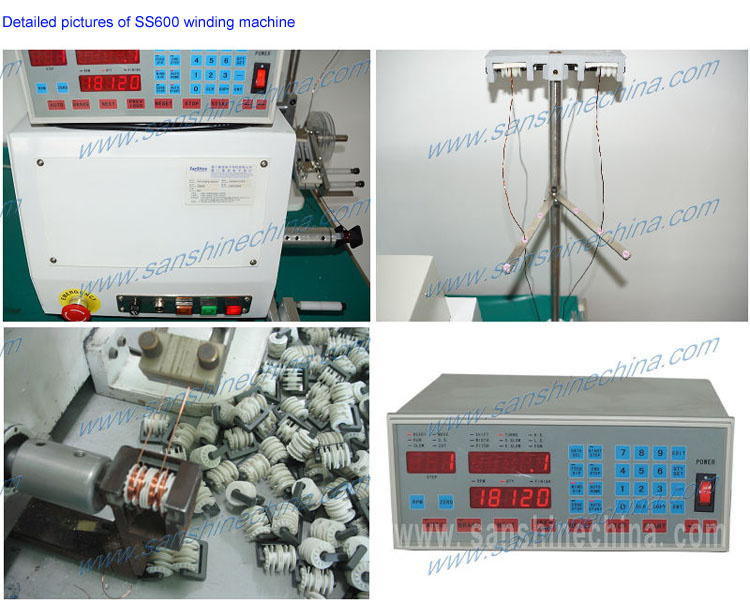

SS600 Automatic Transformer Coil Winding Machine
Description :

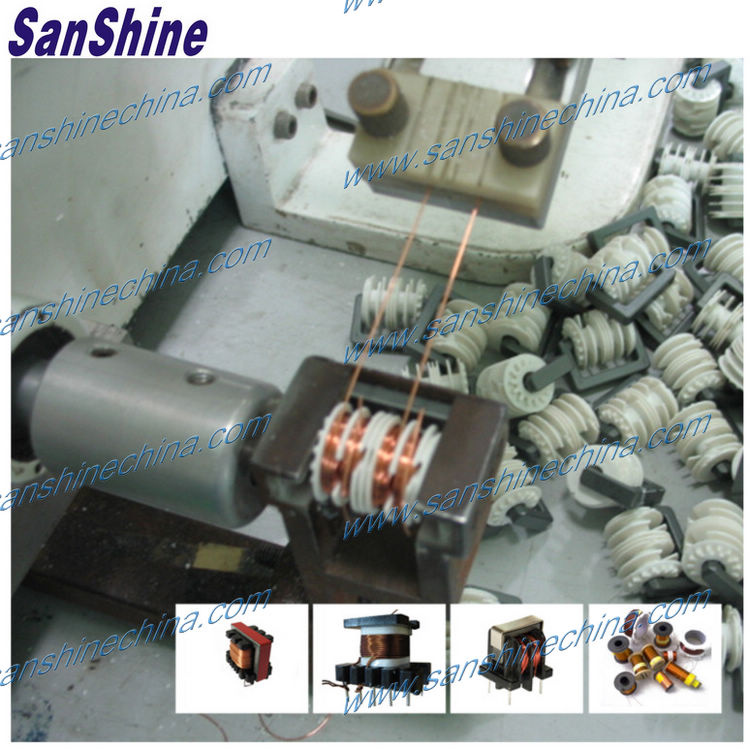

Automatic Transformer Coil Winding Machine
SS-600 digital coil winding machine is digital programmable
Coil winding machine, there is insulation tape device and margin tape device with the machine.

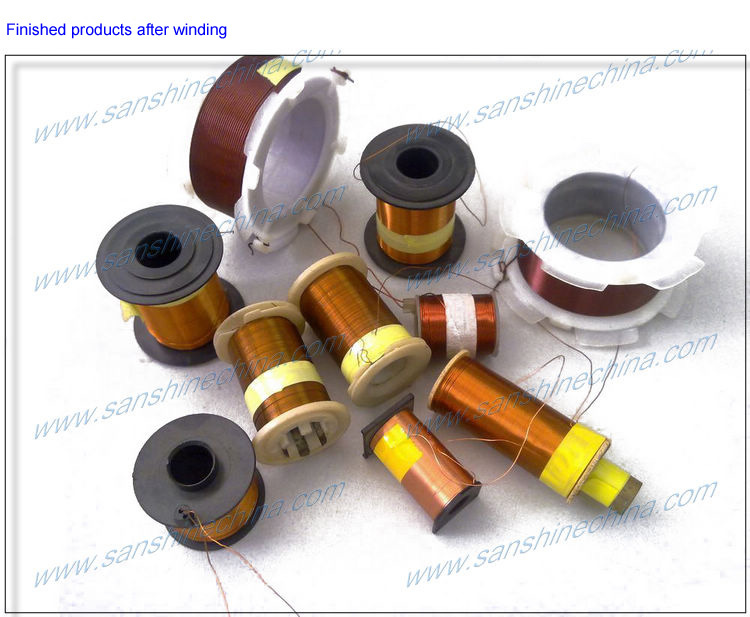

It's the best choice for winding transformer, relay, inductors, contactor coil, ignition coil, etc.. Features: 1. Spreading head of SS-600 can install four different wire size at the same time. 2. Winding and taping can be done by one machine. 3. Step motor driven by constant-current power supply, high Spreading speed precise winding. 4. "Start Point" could set by key panel or with teachable function. Display will show the position of spreading head while setting. 5. Small wire diameter products of spreading by nozzle type spreading head. 6. Wire passing through ceramic rollers prevent enamel from high temperature. 7. Foot-switch connection for better efficiency. 8. Winding parameters and options can be set independently for each step. 9. Memory capacity accommodates 999 steps of parameters with Off-power memory retention.
Model
|
SS-600
|
Spindles
|
1
|
Wire size
|
0.08~ 1.0mm
|
Spread pitch
|
0~ 9.999mm
|
Spread width
|
100mm (Max. )
|
Coil diameter
|
110mm (Max. )
|
Main motor
|
Brushless Motor
|
Spread motor
|
2-Phase Stepper Motor
|
MAX. speed
|
6000rpm
|
Memory
|
999 Steps
|
Power source
|
AC220V/110V + 10%, 50/60 Hz
|
Dimension(CM)
|
76x68x72
|
Net weight(KG)
|
37
|
| Prod Model: |
SS600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic Grade: |
Semiautomatic |
