Product Specifications
| Prod Model: |
GE-BKA01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Golden Eagle |
| Coatings: |
Copper,Nickel,Chromium,Zinc,Tin,Gold,Silver |
| Operation: |
Automatic |
| Max. Dimension Of Samples: |
700mml*500mmw*500mmh |
| Max.Lifting Weight: |
>300kg |
| Heating Method: |
Electrical Heating |
| Hanging Fixture Quantity: |
Customized |
| Production Line Dimension: |
30m*6m*4.5m(Customized) |
| Electricity Consumption: |
180kw |
| OEM: |
Yes |
| Precision: |
Precision |
| Certification: |
FCC |
| Demoulding: |
Automatic |
| Heating System: |
Electric |
| Function: |
Anti-Corrosion |
| Mould Life: |
>1,000,000 shots |
| Automatic Grade: |
Automatic |
| Condition: |
New |
| Customized: |
Customized |
| Warranty: |
12 Months |
Product Description
Products Description:

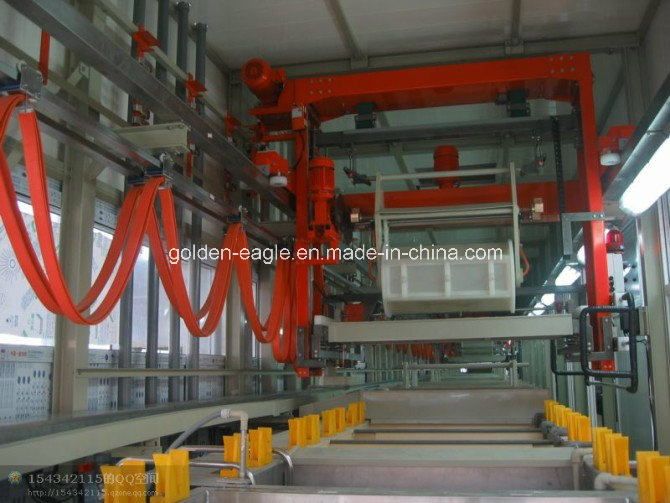

Automatic Vertical Copper, Nickel, Chromium Plating Production Line are widely used in hardware electroplating, ABS plastic electroplating, Car parts electroplating, decorative electroplating, furniture electroplating and others.
Golden Eagle could supply many kinds of coatings, like Zinc Electroplating, Nickel Electroplating, Tin Electroplating, Chormium Electroplating, cooper Electroplating, gold Electroplating, silver Electroplating and so on.
Why Electroplating with Golden Eagle Plating Production line?
1. Electroplating, Scientific name Electro-deposition, which is the mainly method to get surface coating on metal or plastics materials.
2. Electroplating will increase the anti-corrosion ability of metal materials;
3. Electroplating will increase decorative effect.
4. Electroplating could repair the wear and tear of metal parts.
5. Electroplating will increase wear-resisting property of materials.
Application:
1. Anti-corrosion
2. Protect and decorative
3. Wear-resisting property
4. Supply conductive or insulating coatings
5. Process requirement
Electroplating method of Golden Eagle Automatic Vertical Copper, Nickel, Chromium Plating Production Line
1. Hanging plating
2. Barrel plating
Advantages:
1. Special design for all parts of the Nickel-Copper-Nickel-Chromium production line.
2. Industrial Computer Control system: Fast and easy operation, more than 100 process storage; Friendly operation interface
3. High production efficiency
4. Good quality
Configuration
1. Electrical control system
2. Rectifier Control system
3. Temperature control system
4. Power supply sytem
5. Plating tanks
6. Production line frame
7. Moving truck
8. Pipes
9. Exhaust system
10. Working flat
Service:
What are the strengths of Golden Eagle?
We provide OEM/ODM Services, from products line design to any details.
100% products quality guarantee, full refund for detective products or free repair services.
All inquiries and emails will be replied within 24hours.
Accurate delivery time.
Various ways of payment and delivery.
What is the warranty of Golden Eagle production line?
1 year warranty and three years after sales service.
| Max. dimension of the sample | 700mmL*500mmW*500mmH |
| Process requirement | Electroplating Nickel-copper-Nickel-Chromium |
| Operation method | Automatic |
| Lifting weight | >300kg |
| Heating method | Electrical heating |
| Heating up to defined temperature | <1-1.5hours |
| Hanging fixture quantity | Customized |
| Water consumption | Approx. 2000kg/hour |
| Electricity consumption | 180kW(Without rectifier electricity consumption ) |
| Exhaust air | 26000CBM/hour |
| Production line dimension | 30m*6m*4.5m H (Or customized) |
Plating Process:
| Plating tanks | Process | Time(min) | Temperature(Degree) |
| 1 | Loading station |
|
|
| 2 | Electrolytic degreasing | 5-10 | 50-60 |
| 3 | Hot water cleaning | 0.5 | 40-80 |
| 4 | Cold water | 0.5 | Room temperature |
| 5 | Hydrochloric acid | 1~3 | Room temperature |
| 6 | Cold water(Double) | 1 | Room temperature |
| 7 | Dark nickel plating | 10~15 | Room temperature |
| 8 | Cold water | 0.5 | Room temperature |
| 9 | Activation | 1 | Room temperature |
| 10 | Cold water | 0.5 | Room temperature |
| 11 | Bight copper plating | 10~15 | Room temperature |
| 12 | Water recycle | 0.5 | Room temperature |
| 13 | Cold water(Double) | 1 | Room temperature |
| 14 | Sulfuric acid | 1~2 | Room temperature |
| 15 | Cold water(Double) | 1 | Room temperature |
| 16 | Bright Nickel Plating | 10~15 | 40~48 |
| 17 | Cold water | 0.5 | Room temperature |
| 18 | Hot water cleaning | 1 | 60-80 |
| 19 | Activation | 1 | Room temperature |
| 20 | Bright Chromium Plating | 3~5 | 50-60 |
| 21 | Water recycle | 1 | Room temperature |
| 22 | Hot water cleaning | 1 | 60-80 |
| 23 | Off loading station |
|
|
