Product Specifications
| Prod Model: |
XTQ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Type: |
Industrial Washer |
| Fuel: |
Electric |
| Clean Type: |
High Pressure Cleaner |
| Cleaning Process: |
Cold Water Cleaning |
| Certification: |
CE, ISO |
Product Description

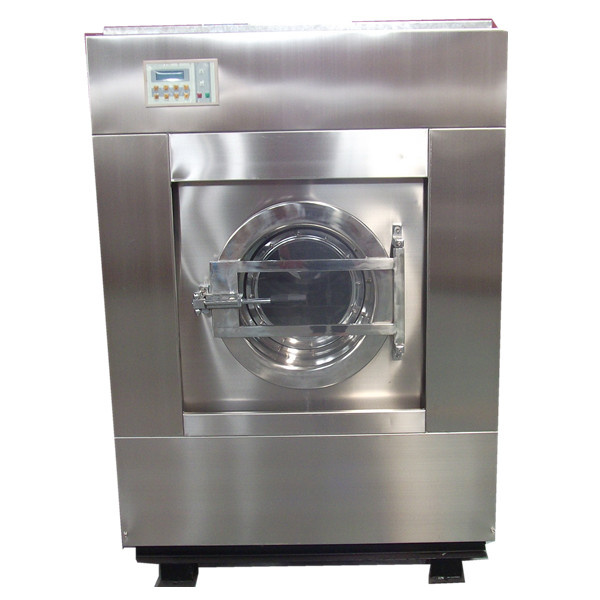

Full automatic washing machine product introduction:
Full automatic washing machine is my factory successful developed washing equipment.
The equipment of the performance indicators has reached advanced domestic level. Hotel, guest house,
Hospital, army, washing industry, colleges and other institutions, washing cotton, wool, hemp, chemical fiber and
Other clothing fabrics ideal equipment, this equipment has the washing capacity, good effect, low energy consumption,
Low noise, beautiful appearance, reasonable design. Be welcomed by the majority of users, and hope that the majority of users to provide more reasonable suggestions for improvement, in order to improve the performance of equipment and quality.
|
Type |
XTQ-15/XTQ-20 |
XTQ-30 |
XTQ-50 |
XTQ-70 |
XTQ-100 |
XTQ-130 |
|
Rated capacity |
15Kg/20kg |
30Kg |
50Kg |
70Kg |
100Kg |
130Kg |
|
MIN |
10Kg/15kg |
25Kg |
45Kg |
50Kg |
90Kg |
110Kg |
|
MAX |
15Kg/20kg |
30Kg |
50Kg |
70Kg |
100Kg |
130Kg |
|
Size |
|
|
Diameter |
700mm/800mm |
900mm |
1080mm |
1080mm |
1200mm |
1300mm |
|
Diameter deep |
450mm |
470mm |
580mm |
680mm |
820mm |
820mm |
|
Volume |
149Lit/199Lit |
332Lit |
531Lit |
718Lit |
995Lit |
1337Lit |
|
Outline dimensions |
|
|
Height |
1600mm |
1700mm |
1900mm |
1900mm |
2000mm |
2100mm |
|
Long |
1100mm/1100mm |
1400mm |
1700mm |
1850mm |
2050mm |
2100mm |
|
Width |
1000mm/1150 |
1400mm |
1650mm |
1650mm |
1750mm |
1880mm |
|
Rotor speed |
|
|
Washing speed |
50r/min |
50r/min |
36r/min |
36r/min |
35r/min |
31r/min |
|
Uniform speed |
90r/min |
90r/min |
72r/min |
75r/min |
70r/min |
65r/min |
|
Take off(M) |
450r/min |
450r/min |
420r/min |
380r/min |
350r/min |
310r/min |
|
Take off(H) |
900r/min |
900r/min |
780r/min |
760r/min |
680r/min |
680r/min |
|
Drain valve |
|
|
Drain valve |
Φ60mm |
Φ76mm |
Φ89mm |
Φ110mm |
Φ110mm |
Φ110mm |
|
Water inlet pipe |
|
|
Hot water pipe |
3/4″ |
3/4″ |
11/2″ |
11/2″ |
11/2″ |
11/2″ |
|
Cold water pipe |
3/4″ |
11/2'' |
11/2″ |
11/2″ |
11/2″ |
11/2″ |
|
Steam pipe |
|
|
Steam pipe |
3/4 |
3/4 |
3/4 |
1 |
1 |
1 |
|
Each cylinder air consumption |
15Kg |
18Kg |
20Kg |
30Kg |
45Kg |
50Kg |
|
Washing water consumption |
300Kg |
400Kg |
500Kg |
750Kg |
1200Kg |
1500Kg |
|
Power |
|
|
Power |
380V+N-3PH-50Hz |
|
Moto Power |
1.5kw/2.2kw |
3kw |
4kw |
5.5kw |
7.5kw |
11kw |
|
Heating Power |
10kw/15kw |
20kw |
30kw |
45kw |
60kw |
60kw |
|
Machine weight |
|
|
Weight |
950Kg/1100kg |
1500Kg |
2300Kg |
2500Kg |
3000Kg |
3500Kg |
Jiangsu Hanting Machine Manufacture Co., Ltd is a solely foreign-owned enterprises.
It is professional in washing equipment production. Our factory's products contain horizontal type industrial washing machine, spin dryer, tumble dryer, industrial ironing machine, dry cleaning machine, leather crinkle machine, ironing table, and steam presser, which are widely applied in textile factory, hotel, hospital, schools and colleges, restaurants, leather factory, professional washing factory and so on. Our products have been sold to world wide, such as Philippines in the southern Asia, Iran in the Middle East, Bangladesh in the middle Asia, Namibia in the Africa, and Italy in the Europe, getting good remark and reputation Our products are of class one quality, because we have advanced production line, and to control the quality from choosing the material supplier to testing the finished machines, according to ISO9001 quality management system A group of talented worker work for us, to manager the team, to design the machines by CAD and UG, to offer good service to our customs. etc.
We will insist the enterprise static of "live with quality and relay on science and technology development. " Also, we will focus on heightening the production capacity, constructing modern enterprise management system, exploiting the market, consolidating the domestic and overseas sales network.
Our products are sales to southeast Asia, Africa and other regions. Our products have one year guarantee yield and for life service. We can supply kinds of accessories and mending service. We kindly welcome new and old customer to our company for guidance. And we always have the belief that we can create the beautiful further together.
