Product Specifications
Prod Model: |
HSG24-24-8 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Control System: |
PLC and Touch Screen |
Automatic Grade: |
Automatic |
Structure: |
Rotary |
Feed Cylinder Structure: |
Single-Room Feeding |
Material Type: |
Liquid |
Type: |
Volumetric Filling Machine |
Filling Valve Head: |
Multi-Head |
Packaging Container Lifting Structure: |
Pneumatic Lifting |
Filling Principle: |
Negative Pressure |
Packaging Type: |
Bottle |
Dosing Device: |
Plunger |
Packaging Material: |
Plastic |
Product Description

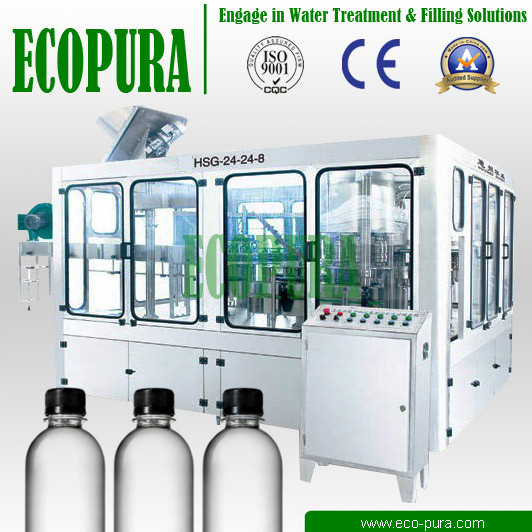

EcoPura HSG series Washing-filling-capping 3-in-1 Monobloc Machinery is used for filling mineral water, purified water, alcoholic beverage and other non-gas beverage
Bottled Water Filling Machine, Bottling Machine, Mineral Water Filling Line, Small Bottle Filling Plant
Characteristic of the Monobloc Filling machine,Mineral water bottling machine,filling line
1. The bottle-necks are cramped and bottles are suspended during the operation process. This avoids many malfunctions caused by thinner bottle body or different highness of bottles. This design also reduce dramatically the required number of changeable parts, make it more convenient and quickly to change to another type of bottles. 2. The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.
3. Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180* along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
4. The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
5. Horizon swirl air power caps sorting device is used to avoid damaging the surface of caps, and when there is a shortage of caps in the caps storage tank, an alarm signal will be generated and the caps will be fed automatically.
6. The whole machine is controlled by PLC. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.
7. The frequency changing technology is used to adjust the operation speed steplessly. The production capacity can be displayed digitally and can be adjusted conveniently.
8. The frame is made of high quality stainless steel, covered by S. S. 304, the filling valve parts direct contact with water are made in SS316 stainless steel. The critical electronic components are from Mitsubishi, Omron, etc., the pneumatic devices are also from international famous brand.
Model |
HSG16-12-6 |
HSG18-18-6 |
HSG24-24-8 |
HSG32-32-12 |
Capacity |
3000-5000B/H |
6000-8000B/H |
8000-10000B/H |
10000-12000B/H |
Suitable bottle |
φ=50-110mm, H=170-340mm, Up to 2L PET or Glass Bottle |
Spraying pressure |
0.2-0.25Mpa |
0.2-0.25Mpa |
0.2-0.25Mpa |
0.2-0.25Mpa |
Motor power |
2.2kw |
2.5kw |
3kw |
5.5kw |
Electric voltage |
380V50Hz |
380V50Hz |
380V50Hz |
380V50Hz |
PLC / Touch Screen |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Frequency converters |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Circuit contactor |
Siemens |
Siemens |
Siemens |
Siemens |
Dimension |
2400*1600*2500mm |
2500*1800*2500mm |
3100*2300*2800mm |
3800*2800*2900mm |
Weight |
2500kg |
3500kg |
4500kg |
6500kg |
Shenzhen EcoPura Water Equipment Co., Ltd was founded in 2007, specialized in Water Treatment/Dispenser, bottled water/beverage filling line, Blow molding machine & packaging solutions over 18 years experiences, In China, ECOPURA commands more than 60% of Water and Beverage Process Machine market. Covering all segments. Highly acclaimed for their user-friendly, tailor-made designs and customized solutions for various customer needs
As a leading manufacturer, we can supply the following solutions:
1, Water Treatment Solutions based on different raw water quality
Municipal or Mountain water treatment / Brackish Water Purification / Sea water desalting
2, Automatic Bottled Water Production Line
Accuracy filling, position due to PLC application and photoelectricity technology, neck spraying nozzle for cleaning completely, avoid the 2ND pollute. Adjusting and setting data make machine suitable to various bottles.
A)PET 250 ml - 2000ml Bottled Filling Line
B)PET/PP 3 liters - 6 liters Bottled Filling Line
C)5Gallon Bottled Filling Line
3, Blow molding machine with mould design and Post packaging machinery to be fully synchronized with the bottled water filling line.
4, High Quality Water Dispenser with 15years OEM experience for abroad client demand
With the support of advanced technique, mature experienced engineers and customer-oriented after sales service, So far, ECOPURA has close cooperation with hundreds of customers all over the world from USA, Canada, Russia, Mexico, Brazil, Panama, Sudan, Nigeria, Angola, Iraq, Jordan, Indonesia and so on. We won enormous credit by carry out business and confirmation based on carefully understood acts and detailed requirement from every customer.
Providing ' Quality Products, Customized services, Competitive Prices and Timely Delivery', . We are now looking forward to even more cooperation with overseas customers based on mutual benefits, Please feel free to contact us if you are interested in our products, Sincerely welcome to visit our company!
