Product Specifications
| Prod Model: |
TB980C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control: |
Software |
| Cooling: |
Has Cooling System |
| Solder Capacity: |
Max. 500kg (Sn63pb37); 430kg ( Sn100%) |
| Weight: |
1050kg |
| Dimension: |
4120 *1280 *1630m |
| Power Supply: |
380v |
| Current: |
Alternating Current |
| Model: |
Tb980c |

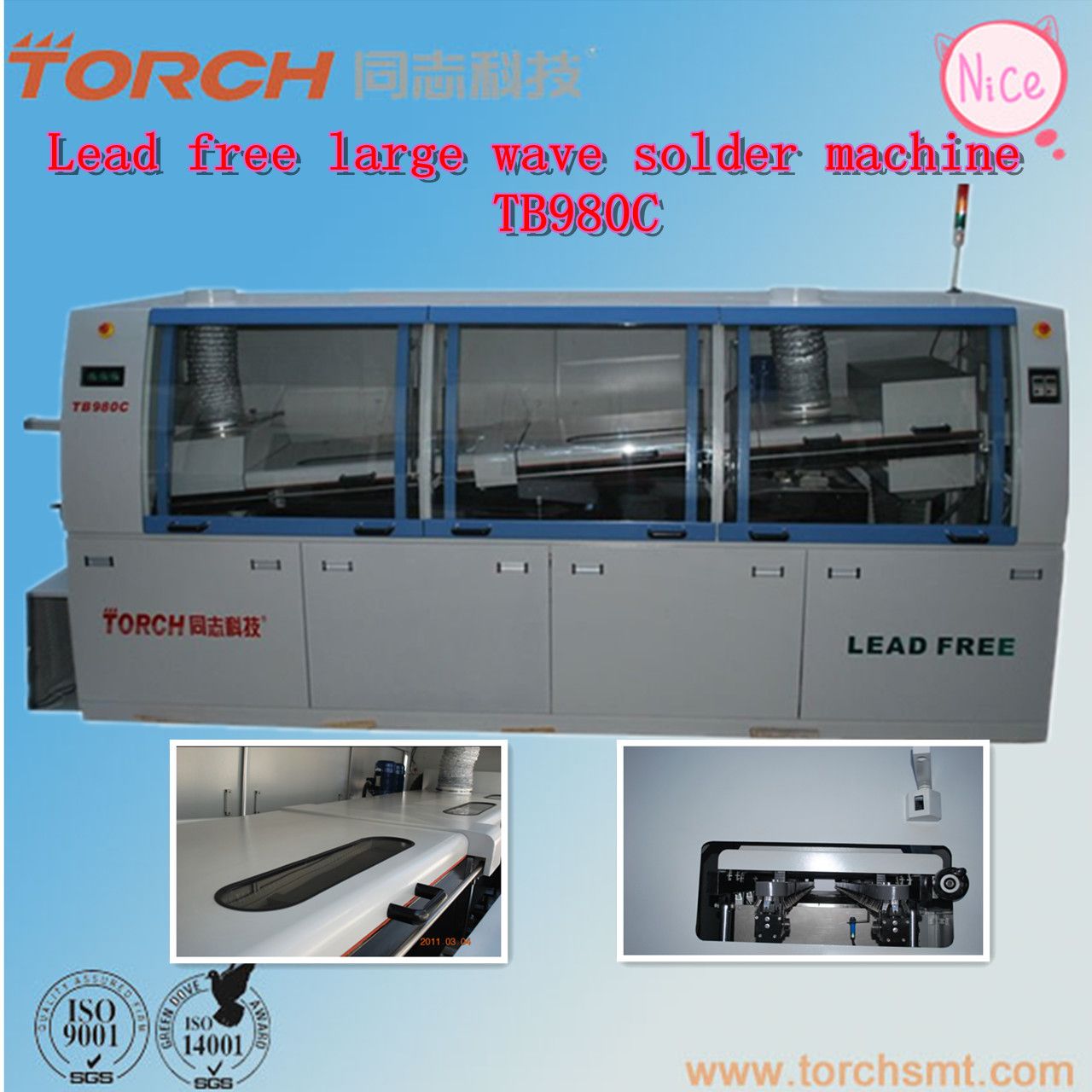

Product Description
1, Streamlined design, using spray process does not paint, beautiful and durable.
2, Three sections separating 1.6 m warm-up area, all hot air preheat to provide the good welding results.
3, Titanium alloy chain, claw ( finger), non-stick tin, never deformation, long life.
4, Two observation windows, elegant appearance, easy operation and maintenance.
5, Tin stove up-down and in-out by auto and manual adjustment
6, Equipped with a cooling module, the temperature compensation module, suitable for lead-free solder and a variety of process requirements
7, Tin furnace using an adjustable nozzle design; Low amount of tin oxide slag, the use of liquid tin-flow design principle to reduce the impact of tin oxide volume, peak width can be adjusted with the PCB board, which is greatly reducing the small PCB board soldering tin oxide volume, 80-350MM adjustable.
8, Driving structure adopts high precision modular design, transmission accuracy, long life, easy maintenance.
9, Rosin spray device can be pulled out, and removable, easy cleaning and maintenance.
10, Isolated spray device, flux smoke discharged from air duct.
11, Powerful parameter database function, various types of PCB process parameters can be called on demand operation.
12, The use of brand computer + PLC control system to ensure reliability and stability.
13, The user can set the date, time and temperature parameters to turn on /off the machine automatically.
14, Self-diagnosis system, fault reason automatic displays, troubleshooting can be checked any times.
15, Heating temperature uses PID closed-loop control, temperature stable and reliable.
16, Closed loop automatic tracking spray systems, spray width and spray time adjusts automatically, and set in advance or extend the spray time by requires.
17, wave automatically cross over the plate to minimize the amount of tin oxide.
18, Transportation system uses force limiters to ensure the stability and transport security.
19, Short circuit and over-current protection system to protect electrical components of equipment.
20, Transportation system closed-loop control. Variable speed, precise control of PCB preheating and welding time.
1, Streamlined design, using spray process does not paint, beautiful and durable.
2, Three sections separating 1.6 m warm-up area, all hot air preheat to provide the good welding results.
3, Titanium alloy chain, claw ( finger), non-stick tin, never deformation, long life.
4, Two observation windows, elegant appearance, easy operation and maintenance.
5, Tin stove up-down and in-out by auto and manual adjustment
6, Equipped with a cooling module, the temperature compensation module, suitable for lead-free solder and a variety of process requirements
7, Tin furnace using an adjustable nozzle design; Low amount of tin oxide slag, the use of liquid tin-flow design principle to reduce the impact of tin oxide volume, peak width can be adjusted with the PCB board, which is greatly reducing the small PCB board soldering tin oxide volume, 80-350MM adjustable.
8, Driving structure adopts high precision modular design, transmission accuracy, long life, easy maintenance.
9, Rosin spray device can be pulled out, and removable, easy cleaning and maintenance.
10, Isolated spray device, flux smoke discharged from air duct.
11, Powerful parameter database function, various types of PCB process parameters can be called on demand operation.
12, The use of brand computer + PLC control system to ensure reliability and stability.
13, The user can set the date, time and temperature parameters to turn on /off the machine automatically.
14, Self-diagnosis system, fault reason automatic displays, troubleshooting can be checked any times.
15, Heating temperature uses PID closed-loop control, temperature stable and reliable.
|
technology parameter |
TB980C |
|
Preheating Section (Infrared+ hot air) |
4Kw * 2 |
|
Preheating temperature |
Room-temperature ~180 |
|
Preheating control mode |
PID Mode |
|
Power of tin stove heating tube |
2KW*8 |
|
Jointing control mode |
PID Mode |
|
Wave crest motor |
imported high temperature resistant motor |
|
Soldering tin capability |
Max. 500kg (Sn63Pb37); 430Kg(Sn100%) |
|
PCB width |
Max. 250mm |
|
PCB Transmission speed |
0.5~1.8m/min |
|
Transmission motor power |
90W |
|
Gross power |
36Kw |
|
Working power |
18Kw |
|
Power supply |
Three-phase, 380V, 50Hz |
|
Air supply |
above 5Mpa |
|
Gas pressure of spray |
0.25Mpa~0.4Mpa |
|
Spray gun driving type |
need a spraying machine outside |
|
Cooling system |
wind cooling system. |
|
Dimension (L*W*H) |
4120 *1280 *1630MM |
|
Weight |
about 1050kg |
Beijing Torch Co., Ltd. Found in 2001, has strong force on R&D and manufacture of SMT and PCB equipments and Semiconductor production line.
Torch has unique understanding of SMT technology for long-term providing professional services to domestic and foreign electronic company. It always lead SMT equipment technologies and trends in domestic market.
To meet the require of electronic environment protection in international market, we produce a series of lead free Reflow Oven, Wave Soldering from mini-type to large size type.
At present, we cooperates with Germany Termway Co. Ltd, produce a series of automatic high-speed mounter. Our product features as good quality, competitive price, easy to operate and energy saving. They enjoy great welcome in domestic and oversea market.
A lot of our products got the patents and our company passed ISO9001 and IQNET, CE certificates and we are SGS Audited Supplier.
Since found, we gained a good reputation and remarkable achievement from our customers, like Spaceflight, Aviation, Arms Force, Information industry, College, Scientific Research and so on. You can see our products from the producing line of fire alarm, instruments, computer display, telephone appliance. At present, our products are already sold in many countries such as USA, Brails, India, Japan, Australia, Mexico and Southeast Asian area. We will continue to make great efforts to satisfy the customers' requirement.
