Product Specifications
| Prod Model: |
DP-160AC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Period: |
12 Months |
| Cutting Width: |
1-160mm |
| Cutting Thickness: |
0.01-5mm |
| Cutting Length: |
1-9000mm |
| Cutting Diameter: |
8mm Max |
| Certification: |
CE |
| Type: |
Accessories |
| Automatic Grade: |
Automatic |
| Over-Lock Stitch: |
Belt Cutting Machine |
| Nailcatcher Machine Stitch: |
Automatic Webbing Cutter |
| Buttonholing Machine Type: |
Automatic Webbing Cutter |
Product Description

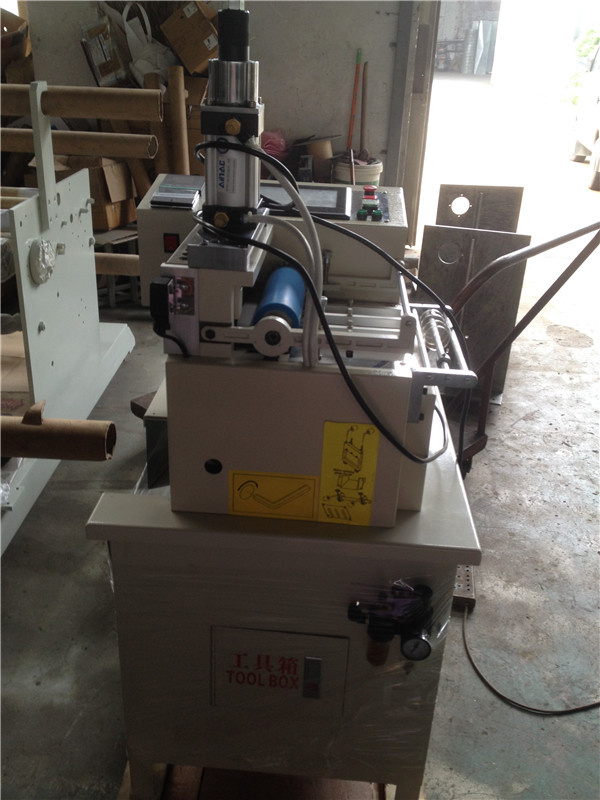

Leather webbing Strap Hot Cutting Machine
The machine is electronic air-pressure cutting machine with temperature controller
Applications of the machine :
Cutting of color Straps ,Nylon Straps , Safety Belts , And the towing straps , thicker belt
Features of the machine :
Stats of the Art Computer Control Design . Cutting length of work pieces as well as cutting pressure / Time Of the Air pressure Especially suitable for thicker beelt . The machine can be easily achieve high efficiency with Zero Waste And complete cutting up , seal and cut in one action .
Function : Right Angle Cutting Purpose
Cutting Length : 1mm-100,000mm
cutting width : 1-160mm
Feeding speed:20,000mm-120,000mm
Net weight : 60kg
Power : 1/2HP
,
EDSCRIPTION &SPECIFICATIONMEASVOL QUANTITY G.W N.W.
LWHCBM
mmmm3
KGS KGS
belt cutting machine0.8250.6851.3750.77705116090
model | voltage | power | net weight | gross weight | volume | cutting length | cutting width | feeding speed |
| dp105 | 110v220v | 1/2HP | 85kgs | 150kgs | 65*80*120cm | 1mm~100,000mm | 1-75mm | 20.000mm~120,000mm |
| dp-101a | 110v220v | 1/2HP | 80KGS | 150KGS | 65*80*120CM | 1MM~100,000MM | 1-160MM | 20.000~120,000MM |
Kunshan Dapeng Precision Machinery Co., Ltd is specialized in manufacturing high precision die cutting machine, sheet cutter, slitting machine, laminating machine, belt cutting machine and related machinery equipment. Our products are widely applied in laminating, slitting and die cutting for shield materials, sticky materials, insulating materials, conductive materials, electronic materials. Sizing cutting for strings, belts, rolls in bag line, shoe and cap line and plastic and rubber line.
We pride ourselves in our quality manufacturing processes and professional designs. With strong technology, international quality control system and perfect after-service, our products enjoy a Good reputation at domestic and international market. We own professional technical staffs, engineers, sales and after-service employees to be a Young and high caliber team.
At "Dapeng", we are confident that our hands on approach and direct involvement with out manufacturing assures our customers' Will get the best quality products available on the market today.
