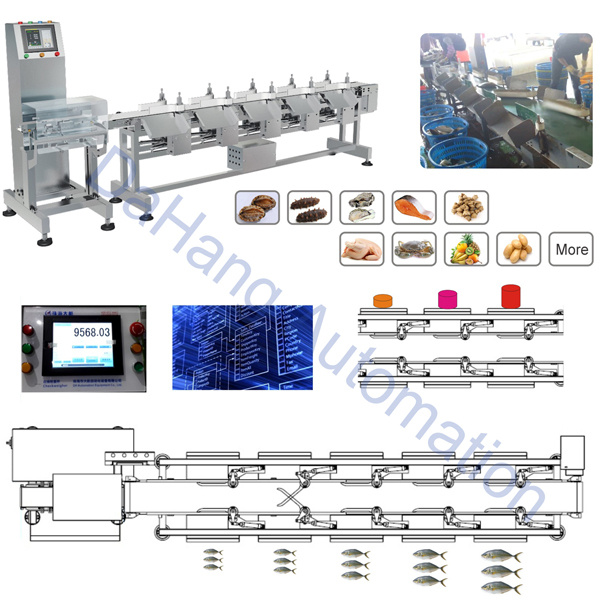

Automatical Check Weigher for Bean Sorting
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
T/T,Money Gram,Western Union |
Product Specifications
Prod Model: |
DHWS_8 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Operation Panel: |
8 Inch Touch Screen |
Condition: |
New |
Frame: |
SUS 304 ,Polishing |
After Sale Service: |
Engineers Available to Service Machines Oversea |
Product Description
DaHang is the leading brand manufacturer of online check weigher , weight sorter , metal detector in china. Regardless of which branch you belong to,our products stand for 100% in-line control in your production. Weighing capacity(Max) | 3kg | Weighing range | 100g~3kg | Minimum graduation | 1g | Weighing speed* | 120items/min (max.) (adjustable speed) | Weighing accuracy(3σ)* | ±3g | Weigh sensor | Double-beam load cell (high output) | Product dimensions (mm) | Length | 10mm~250mm | Width | 10mm~300mm | Height | 10mm ~300mm | Belt speed | 50m/min (max.) | Belt Size | 500(L)mm*300(w)mm | Construction | Waterproof :IP30 (International standard) Waterproof :IP65 (International standard) | Power supply | Single phase AC100 ~ 120V, Single phase AC200 ~ 240V(customize) | Construction | SUS ,polishing | Material | Stainless steel | display / operation | 8 inches color touch screen |
|
Sorting Type: Pusher Type / Flipper Type / Air Jet Type / Drop down Type
Special features:
1. High precision and digital weighing sensor system
2. High speed digital filter processing and automatic zero tracking function
3. Unique dynamic weighing anti jamming technology, high speed with high accuracy.
4. 40 kinds of product preset, free to switch
5. Rejecting/Sorting Type : pusher, Lever, Air Jet, slide available for choice
6. Humanized operating system, easy to learn and operate, a variety of language versions available
7. Data storage and output printing capabilities
8. Additory multiple protocol ports to be embeded in a variety of production/transportation lines and conveyor systems
Remarks:
1. Weighing accuracy and speed depend on product's shape and other conditions
2. Customized size and weighing capacity are accepted
After-sale Service:
one year warranty, life-long maintenance. With engineers serving overseas available.
Packing & Shipping
Wooden case, 22 working days delivery

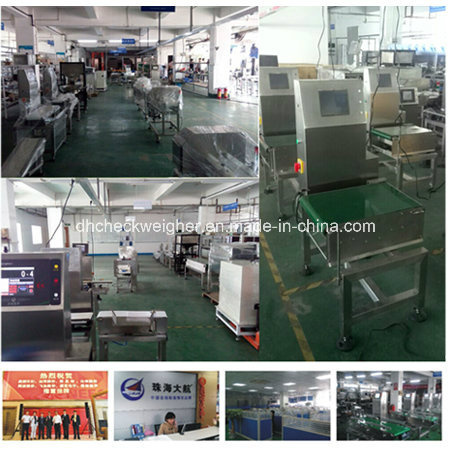

Working Shop:
Trader:
MOQ: 1set
Trade Terms: FOB, CIF, EXW
Payment Terms: T/T, 60% in advance, 40% balance before shipping
Delivery Time: Within 22~25 workdays since payment receipt
Packing: Plastic film and wooden case
Shipping: By sea delivery (Small Size by air is acceptable )
ZhuHai DaHang was established in 2005. In 2014 the company name changed to ZhuHai DaHang Automation Equipment Co., Ltd with 10 million RMB registered capital, it is a branch of Zhuhai KangDing Electronics Co., Ltd which is a listed company (Stock Name: K. D Electronics, Stock Code: 830928).
Zhuhai Dahang is an integrated high-tech enterprise which includes research and development, production, sales and service in the industry of weight sorting, check weight, non-standard automatic technology and equipment with 10 year industry experience.
Core Competitivenes:
1. Leader brand in industry, occupied 80% of Chinese marketing
Dahang equipment widely be used many fields and were validated by many leading enterprises, Dahang have the largest and most stable customers resource in China, market share and excellent rate were the first one in industry, Dahang occupied 80% of Chinese marketing
2. The biggest professional research center and production base
Zhuhai Dahang have the strongest team of technology research and development in domestic, including the general engineer Mr. Yangcheng who is the leader of online weighing industry reported by CCTV10. Dahang is SGS supplier passed the SGS authentication, existing plant area of 3000 square meters.
3. Technology leading in industry, The first one of several technical indicators in domestic
Zhuhai Dahang Self-help develop unique dynamic weighing control system with high stability andpracticability. The weighing sorting accuracy can reach ± 0.05g, sorting speed can reach 200 times/min, the top sorting rank can reach 16 levels, the technical indicators always keep the first position in domestic industry.
4. Inventing patents
Zhuhai Dahang got 9 Technology Licensing Patents and 4 Computer Software Copyrights. Dahang invented
Seafood Weight Sorting Machine and Rotating Disc Weight Sorting Machine. Dahang is the inventor of weigh
Sorting company special reported by CCTV10 scientific channel.
5. Strong Scientific research support, cooperate with 3 high universities
Zhuhai Dahang cooperated with 3 Chinese high universities to sure strong research support, including Jilin University of Electric design and research Institute, Beijing University of Aeronautics and Astronautics of Mechanical Engineering and Automation Institute, Zhangjiajie Aeronautical Engineering Institute of Aviation electrical and information engineering department.
