The unit is mainly done to packaged pouch products (150 to 1000 grams) required (arranged in the form: A single-chamber, single or double row) neatly into the bag, sewing bag out of the automatic packaging process. In order to achieve a small package from the bulk material to a fully automated bag packaging operations, saving manpower, material and financial resources invested, as customers reduce production costs, improve production efficiency, the unit is widely used in washing powder, salt, seeds, milk powder, particle packing is achieved after a major packaging company of choice for fully automated machine.
Of facilities include: Double-inclined conveyor, conveyor speed, counter manager charter, woven bags, automatic packaging machines, sewing machine, conveyor and other products.

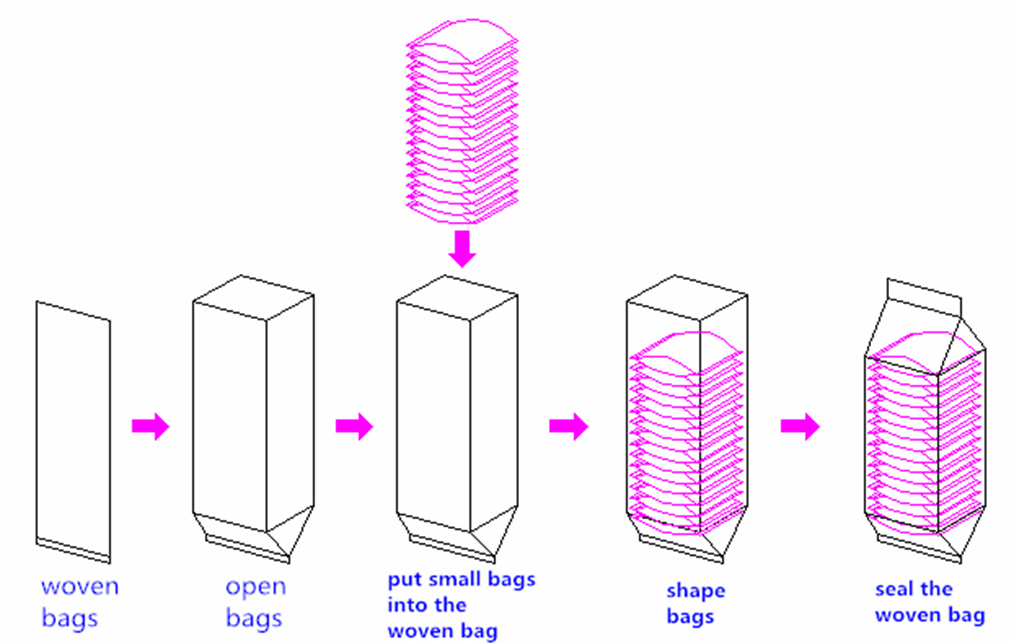

Production process: The level of conveyor pouch products --Double inclined conveyor speed conveyor charter management --count bag sewing machine automatic packaging machines --woven product output.
The unit has the following advantages:
1. Automatic bag packaging machine can be automatically on the bag, open bag, counting, filling, moving out, into automatic sewing automatically sewn bag. Packaging process to achieve unmanned.
2 The unit uses touch-screen control, operation, switch specifications, maintenance is very convenient, safe and reliable.
3 can be arranged to achieve a variety of forms to meet customer to demand.
Main technical parameters:
1. This unit applies to packaged product range: 150g ~ 1000g bagged products;
2. Packaging materials: Paper bag, woven bag (film);
3. Speed: 4 to 14 large bags of bags / minute, pouch: 40 to 90 packages / min; Different depending on the product packaging speed;
4. Arranged in the form: A single-chamber blanking, separate horizontal;
5. Compressed air: 0.5 ~ 0.7MPa, the maximum air consumption 0.8 m3/min;
6. Power: 5Kw 380V 10% 50Hz
|
This unit applies to packaged product range |
150g ~ 1000g bagged products;
|
|
packaging material |
paper bag,PP woven bag |
|
Packaging speed |
4-14large bags/min,pouch:40-90/min |
|
arranged in form |
a single-chamber blanking ,separare horizontal |
|
compressed air |
05-0.7mpa,the max air consumption is 0.87m³/min |
|
power supply |
380V 5kw 10% 50HZ |
