Automaticr Poultry Farm Equipemnt for Chicken
Product Specifications
| Prod Model: |
SHFN-006 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Super Herdsman |
| Dringking Nipple Capacity: |
8-12birds/Nipple |
| Quantity Of Nipple Drinker: |
16PCS/ 4meters |
| Delivery Time: |
20days After Deposite |
| Delivery Port: |
Qingdao ,China |
| Power Source: |
Electric |
| Type: |
Poultry Farm Equipment |
| Usage: |
Waterline for Chicken and Egg Production |
| Epidemic Prevention Equipment: |
Mobile Disinfecting Car |
Product Description

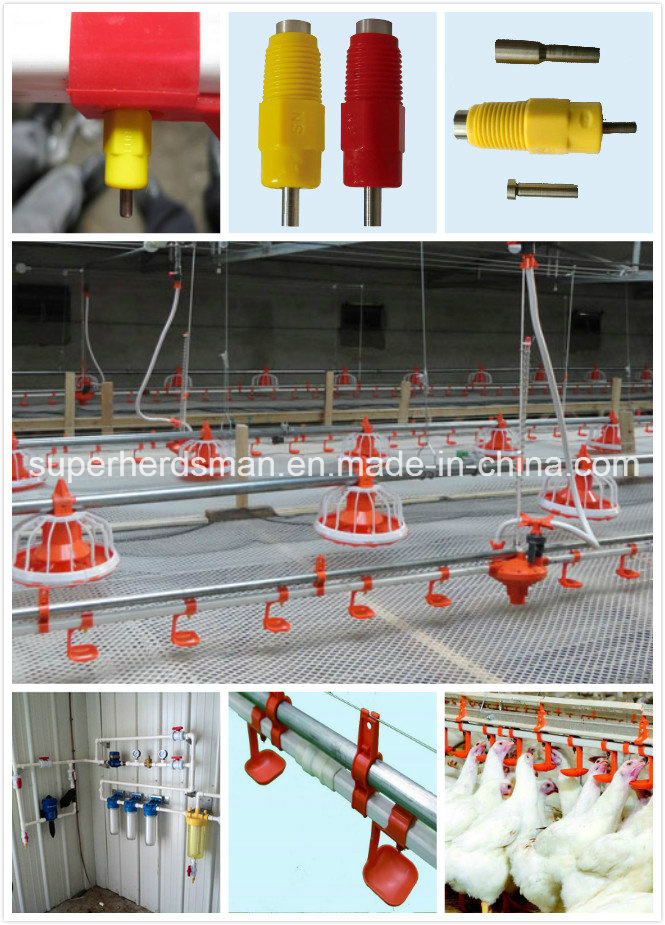

1 Automatic nipple drinking system
Nipple drinking system composed of water front parts ,drinking system ,hanging system ,regulator ,water end parts .
Water front parts | 1. Including filter , water meter ,and dose .
2. Function : adjust water supply and stabilize drinking volume ,dose medicine , wash sediment
|
Water pipe and nipple drinkers and drip cup | 1. Water pipe : transparent PVC material
2. Nipple drinker:
a. double-sealing structure, good seal performance and never leak water
b. Chicken could freely drink from 360 degree.
c. outer engineering plastic and inner stainless steel

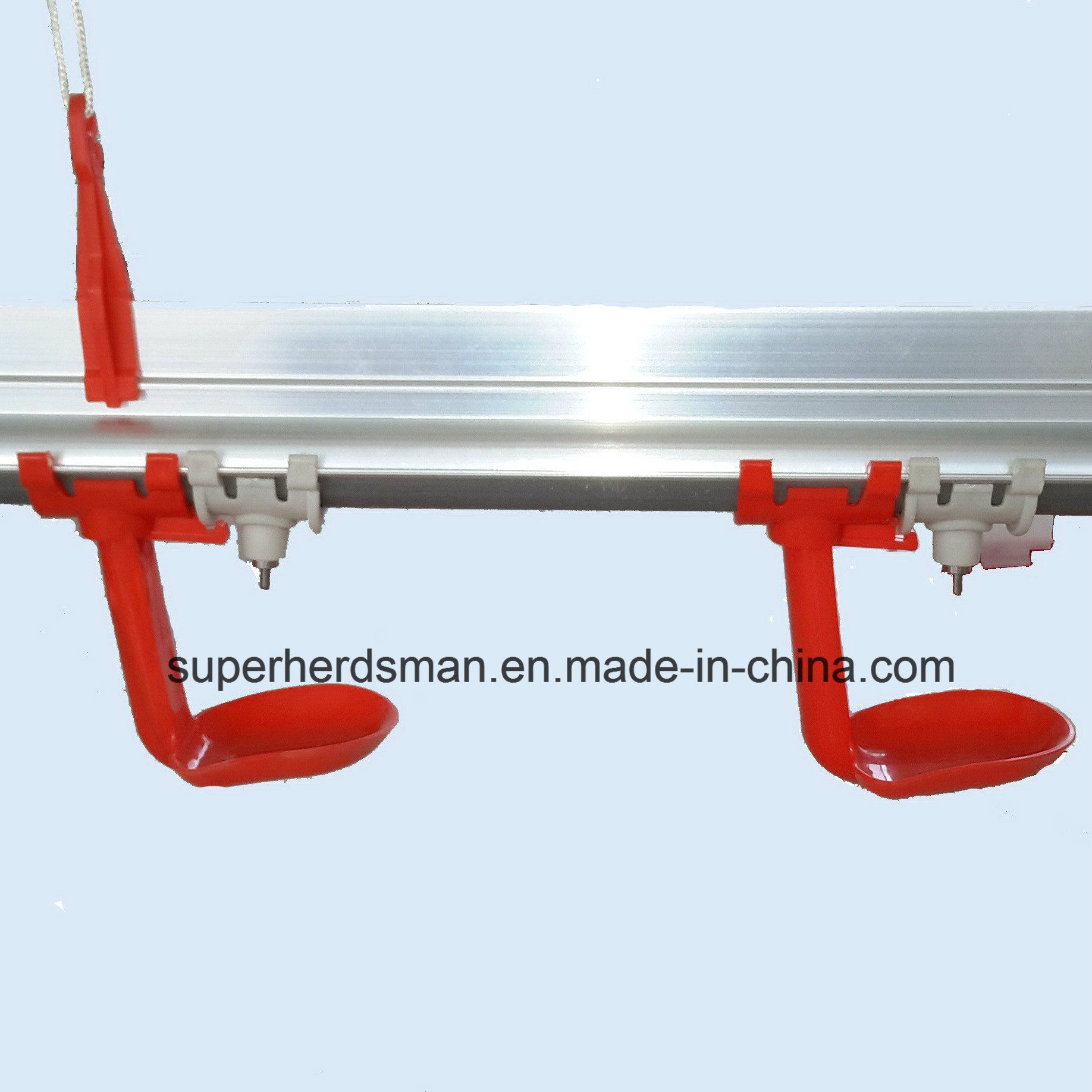

3.drip cup : single-arm drip cup with a reasonable structure
|
Regulator and indicating tube | 1. Regulator :stable running , high dexterity , sufficient and even liquidity .
2. Transparent indicating tube to observe the water level
Poultry Days Water Level Height(mm)
1~ 7 days 50~80mm
8~14 days 80~200mm
≥ 15 days 200~350mm
|
Hanging system | Eeasy to adjust height of this drinking system in different
poultry growth. It is very important to keep a right and appropriate height for poultry in different growth period
|
| Seamless G.I. Water Line Supporting Pipe | more rust-resistant and longer service life compared with welded pipe |
feeding capacity
broile:8-12 birds/nipple
birds in cage:12 birds/nipple
turkey:20 birds/nipple
duck:10 birds/nipple
Breeder 10 birds/nipple
Medical dose
It can dose the water solubility medicine automatically to prevent the disease.
By using water pressure as power source instead of electricity, it is economical and reliable.
It can regulate precisely the amount of additive and water ratio.
Easy and convenient operation, anti-rust and anti-corrosion.
Technical data
Flow rate: 10 L / h - 2.5 m3/h
Working pressure: 0.3bar- 6bar
Dosing rate: 0.02L / h - 50 L/ h
Maximum working temperature: 40
Adjustment ratio: 0.2% to 2%(1: 500- 1: 50)
Connecting size: External thread G3/4
Water flow: 0.45L every other 'kata'click soundAbout usOur company is a leading Manufacturer of husbandry machinery in China. Our featured poultry equipments as follows:1. Main feeding system
2. Broiler feed system
3. Nipple drinking system
4. Ventilation system
5. Environment control system
6. Cooling pad system
7. Spraying system8. Curtain system 9.heater and brooder hover We also can provide you overvalue services :( one -stop service for poultry farm needs )1. Poultry House site Selection
2. Poultry House Design and Construction Preparation Guidance.
3. poultry house construction
4. Breeding Equipment Installation
5.After-sale Services
Qingdao Super Herdsman Machinery Co., Ltd. is located in Qingdao City, Shandong Province, China. The company takes promoting advanced husbandry equipment, improving the industry healthy and sustainable development as its own duty, focusing on the development and using of livestock and poultry machinery.
As a professional manufacture of the poultry house equipment, the company combines product development, project designing, installation and after sale service together to provide a comprehensive service. Our main products cover the environment control system, automatic drinking system, automatic feeding system, cooling pad system etc. The rich products line can meet different requirements of customers, and can provide customized services according to the special needs. The company can provide international advanced level ground feeding and cage feeding equipments for broilers, breeders and layers.
The company's products sell well all over the Chinese market. We have established good strategic partnership with COFCO group, Chia Tai Group, Liuhe Group, WENS Group and Huadu Group, and our products have been exported to more than 30 countries and regions in Central Asia, South Asia, the Middle East, Africa and so on. Our Perfect sales and after-sales service network, not only provides the customers with first-class products and also provides professional and thoughtful technical services.
Keep moving forward, even a far destination will be arrive. We are willing to cooperate with you for a beautiful future.
