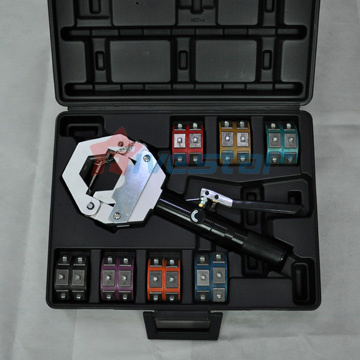

Product Specifications
| Prod Model: |
FS-7842 |
| Crimp Assembly: |
7sets |
| Power Source: |
Hydraulic |
| Blade Material: |
Carbon Steel |
| Application: |
Repair Air Conditioner Pipes |
| Type: |
Hydraulic Crimping Tools |
| Package: |
Black Plastic Kits |
Product Description
PRE-OPERATION SET-UP
Open the relief valve to fully recess the piston, and then close tightly.
Rotate the yoke fully counter clock-wise to bottom out the adapter seat.
OPERATING INSTRUCTIONS
Warning: DO NOT actuate the piston without having a hose and fitting in place to crimp. This could damage the tool Also be careful not to place hands near any pinch points while using the tools.
*Remove pin and open top yoke.
NOTE: It may be necessary to turn the body counter clock-wise until top yoke can be rotated away from piston.
*Select correct die set:
Standard Hose Reduced Barrier Hose
#6(5/16")-Purple #6(5/16")-Black
#8(13/32")-Red #8(13/32")-Purple
#10(1/2")-Yellow #10(1/2")-Orange
#12(5/8")-Green #12(5/8")-Blue
NOTE: Be sure to correct size die set! Failure to do so could cause leakage or failure of the crimp!
*Insert dies into yoke.
*Position fitting and hose in crimper and close top yoke.
*Insert pin securely.
Note: Make sure pin snaps securely into place before crimping process is started
*Turn body of tool clockwise until dies are snug against hose fitting.
*Turn hydraulic value to CLOSED position.
*Pump handles to crimp fitting onto hose. Continue pumping until handle comes to a stop.
Note: Place the body of the tool against a solid body to create more leverage during the crimping process.
*Once crimp is complete, turn hydraulic valve to OPEN position.
*Turn body of tool counter clockwise until top yoke can be rotated away from piston portion of yoke.
*Remove holding pin and open yoke.
*Remove hose assembly.
Part# |
Description |
71500-001 |
Hydraulic-Crimp Assembly |
71500-6 |
Die Set #6(5/16” )& #8 Reduced Barrier (13/32” ) |
71500-8 |
Die Set #8(13/32” ) |
71500-10 |
Die Set #10(1/2” ) |
71500-12 |
Die Set #12(5/8” ) |
71500-6SRB |
Die Set #6(5/16” Reduced Barrier) |
71500-10SRB |
Die Set #10(1/2” Reduced Barrier) |
71500-12SRB |
Die Set #12(5/8” Reduced Barrier) |
71500-PB |
Die Set Plastic Box |
