Product Specifications
| Prod Model: |
L-EDR005 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accelerometer: |
WDR |
| TV-out: |
EV Compensation |
| Compression Format: |
JPG |
Product Description
Description

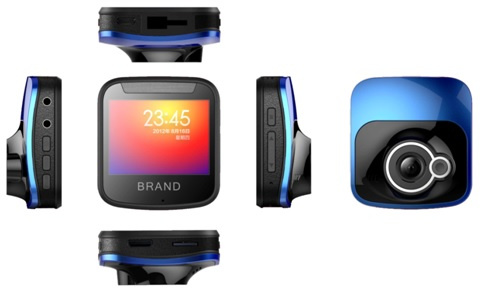

The device is used for videos & audios data recording when automobile travelling with multi-function such as taking HD photos, Webcam, sound recording, WDR, TV-OUT, Accelerometer, EV compensation and etc...And the device is also suitable for other travelling, outdoor leisure and recreation.
Performance
-- Turn on/off
Turn on and begin to record automatically once the car starts.
Set Time Delay in the menu that the device will keep on recording according to the delay time after the car stops.
-- Preview: Enter into Preview Mode, press Up or Down button to select the previewed file and click OK button to play and preview. And Up or Down button is also for rewind or fast-forward.
-- USB Port: Connect with PC to download/preview/copy/delete files and the device can be used as a webcam when connecting.
-- WDR function can be selected On/Off in the menu.
-- Accelerometer: Once car crash occurred, the device will keep on recording and saving the data continually, at the moment, the device will be locked as well that the current recording data will not to be covered.
-- SOS Function: Press "Page Down" button that the recording data will be locked and not be covered.
-- TV-OUT: Connect with TV set directly and view the recording file or videos on TV.
-- With EV compensation function.
-- Recycle Record: Set recycle type in the menu. For example, if setting 3 minutes, the device will save the videos every 3 minutes. If the memory card was full, the locked recording data would not be covered.
-- Two Power Supply options
Use Build-in Li-Battery that can be charged by USB port.
Connect with Car Charger that will begin to record automatically when the car starts and keep record during charging.
-- Camera Mode: Enter into Camera Mode to take photo by pressing OK button.
-- Motion Detection: Capture moving object and record automatically and save the data. Open this function in the menu.
-- Power Saving Mode: Turn off the display to work in low power consumption.
-- MENU: Simple and powerful menu system for setting multiply function.
Specification
CPU: NT96650BG
LCD Screen & Lens
- Imaging chip: Ar0330
- Focal length: 3.6mm
- Aperture: 2.4
- Visual Angle: 120 degree wide-angle lens
- LCD size: 2.0" inch
Power Supply & Interface
- Battery: 3.7 V 120mAh Li-battery
- Input voltage: USB 5V
- Power consumption: 2.8W
- Slot: TF / MIC(2)
- Connector Interface: USB / AVOUT / HDMI / GPS
Key Functions
- 6 Buttons: MENU / POWER / UP / DOWN / MODE
System Setting
- Playback: Normal videos / Emergency videos / Photos
- Time Setting: Year/month/day/minute/second
- Video Image resolution: Default: 1080HFD 1920× 1080 / 720P 1280× 720 / WVGA 84× 480 / VGA 640× 480
- Power Saving Mode: Set to turn off LCD automatically in 3 / 5 / 10 minutes after the car starts.
- Audio Recording: On/Off. Default is ON.
- Sound Volume setting: 8 levels sound size
- Recycle Record: 3 minutes (Default)
- Frequency: 50Hz / 60Hz
- Accelerometer (Crash Sensor): Turn off / Low sensitivity / Normal sensitivity / High sensitivity
- Delay Power-off: NO
- Language: Support multi-languages
- Format: Confirm / Cancel
- Reset back to the built-in settings
- EV compensation: -2 ~ +2
Memory card
- SD card capacity: Support 32GB Maximum
Prompt Tone
- Turn On/Off
- Press buttons
Alarm Function
- Battery is power off
- There is no memory card.
Other
- Working temperature: -5 degrees c ~ +60 degrees c
- Size: 26*60*55mm
- Weight: 45g
- 360 Degree rotating frame
-------
We provide: Standard product and Customized product
-- Many years of industrial design experience in digital, consumer electronics, accessories for smartphone and PC, media player and power supply products and etc...
-- Many years of production experience with stable production technology and production process.
Shenzhen Jinxun Electronic Technology Co., Ltd, founded in 2002, is a comprehensive manufacturer specialized in the research, development and production of digital products, small appliances, consumer electronics products and related components.
Through over ten years of our entire staffs' efforts, our company is obtained the trust and reputation with our clients and suppliers based on our professional experience. We have set up long-term and stable business relationship with many famous brand such as Newsmy and Aigo as nominated suppliers for many years. And our products is well-known for its diversification and fine quality. Most of our products comply with international quality standards and has already exported to Europe, Middle East, America and other countries and regions.
Our company insist High Quality, Best Price, Speedy Delivery, Good Service. Along with the development, more and more new products will be put on the market continually in the new years.
Our company is located in Shenzhen - a modernized costal city with beautiful sceneries and international influence.
Hope to build successful business relationship and cooperate with more customers for mutual development and benefits in the near future.
