Product Specifications
| Prod Model: |
ZJK5002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
Digital Sensor, Digital Sensor~@ |
| Usage: |
Pressure Sensitive Sensor |
| Theory: |
Magnetic Sensor |
| Material: |
Polymer |
Product Description

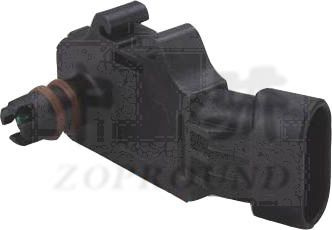

Automobile Intake Manifold Pressure Sensor (Absolute Pressure)
Working Pressure range 20kpA -102kpaA
Voltage DC 5v
Output signal 0.5-------4.5 V (with temperature signal out put)
Our company can produce various pressure sensor under 3Mpa with different specification, different pressure range and different signals according to the requirements of customers'.
For more products technical specifications, pls contact us directly.
MAME
|
Automobile Intake Manifold Pressure Sensor (Absolute Pressure) |
FEATURES
|
Working Pressure range 20kpA -102kpaA
Voltage DC 5v
Output signal 0.5-------4.5 V (with temperature signal out put)
precision 1.5%FS
Overpressure 1.2 times
The power supply can exceed to 24V
It has the function of power reverse connection protection
It has short circuit protection for 10-minute signal port and grounding port or power port
pretect grade IP55
EMI Protection
Response time ≤ 2.5ms
|
|
DISCRPTION
|
|
Zopround Industry Co., Limited Locates in rui'an city, zhejiang province.
As Applying adanced MEMS technology and computer bus system, using imported Si Piezoresistive chip, Zopround has mainly developed and produced following sensors such as automobile oil pressure sensors, automobile fuel steam pressure sensors, automobile manifold absolute pressure sensors(MAP), intake manifold pressure sensors/temperature absolute pressure sensors, air pressure sensor, automatic automobile air-conditioner refrigerating fluid special pressure sensors, hall-type position sensors, crankshaft speed sensors, water temperature sensors, and so on...these sensors also have a brilliant future in the industry of electronics, oil, chemicals, which have filled in the blank of like products in domestic market.
With the mind of innovation by technology, Zopround builds own famous brand, and promises the high level products& high effective service to meet all the demand of our clients from both home and abroad, so that hope to be the true Chinese proud.
Zopround sensors applying adanced MEMS technology and computer bus system, using imported Si Piezoresistive chip, Zopround builds own famous brand, and promises the high level products& high effective service to meet all the demand of our clients from both home and abroad, so that hope to be the true Chinese proud.
