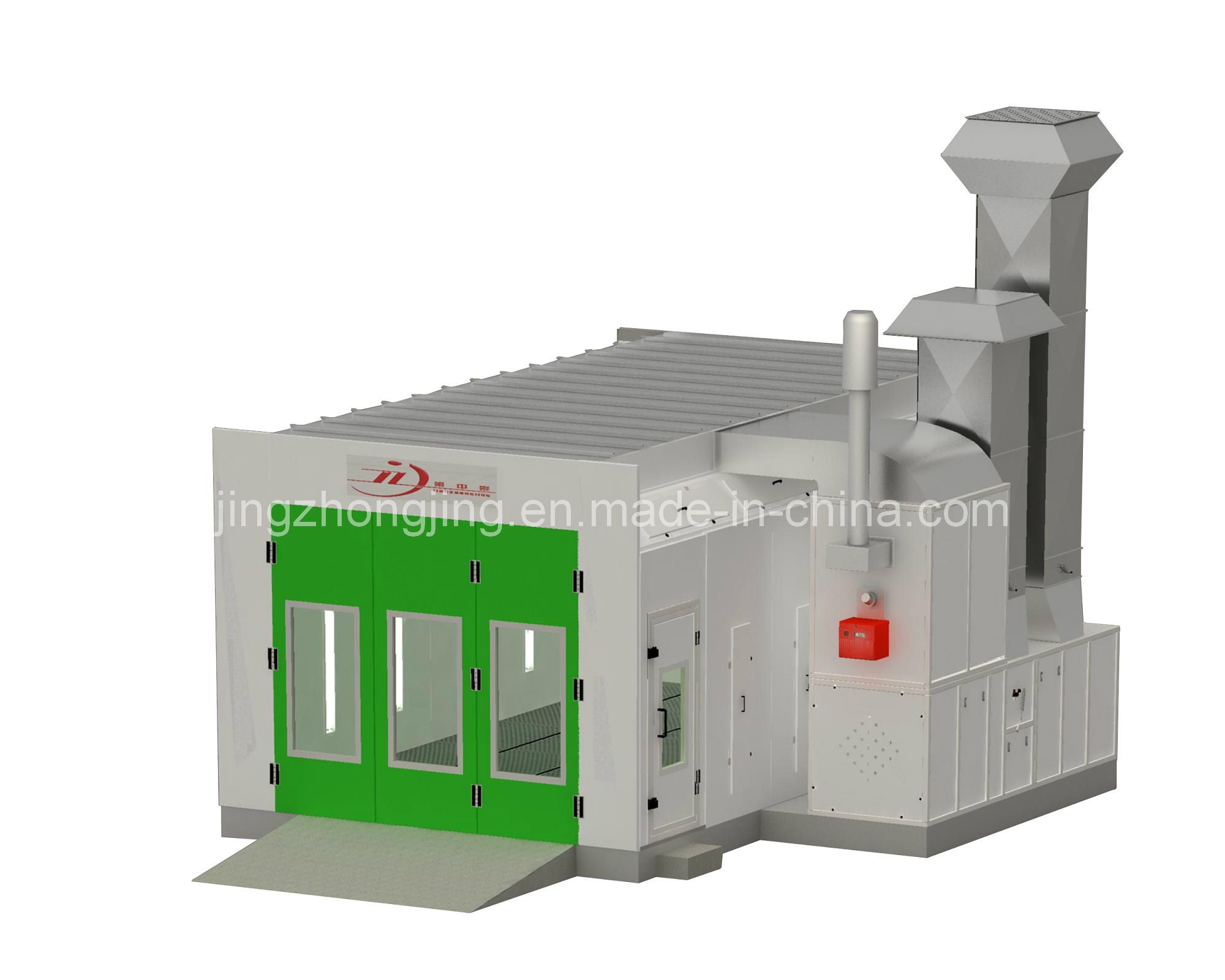

Automobile Paint Booth for Australian Market (Model: JZJ-8000-AU)

Name: Automobile Paint Booth for Australian Market (Model: JZJ-8000-AU)
Brand: china-manufacturer-directory.com
SKU: 735805635
Availability: InStock
Rating: 4.7 (84 reviews)

Supplier:	Jiangsu Jingzhongjing Industry Coating Equipment Co., Ltd.
Price:	US $ 6000-12000/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	JZJ-8000-AU
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Sea Blue, Red, Orange, White
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Certification:	ISO9001
Condition:	New

Product Description

1. Australia Standard.
2. External lighting.
3. Proof-explosion motors.

Outside Dimension (mm)	700660563450(LWH)	Inside Dimension(mm)	6900 * 4000 * 2650(LWH)
Front Door(mm)	30002600 (WH)	Service door (mm)	1800650( WH)
Total Power	17KW
Cabin system	Wall panel	50mmEPS panel, steel sheet thickness: 0.6mm
	Ceiling panel	Galvanized steel sheet.
	Basement	300mm depth, full grids.
	Ramp	three pieces 2000*900mm ramps
	Glass	6mmtoughened glass
	Windows	Squareglass windows
Air Make-up System	Air Inlet fan system	1 * 7.5kwBelt-drive fan, proof-explosion motor, Ex rated
	Exhausted fan system	1 * 7.5kw Belt-drive fan, proof-explosion motor, Ex rated
	Ai capacity	25000m3/h
	Air Flowing speed	0.3m/s in empty booth
	Air Control method	One manual damper for air exhausted system
	Exhausted ducting	4 meters air duct and one flop damper
Purification System	Pre-filter	G3 grade
	Ceiling filter	EU5 / F5
	Floor filter	green fiber glass filter / G3 grade
	Exhausted fan Filters	M green fiber glass filter.
Heating System	Infrared heating lamps	11Units. Each 3 * 1000W Infrared quartz tubes. Total: 33KW
	Max heatingtemperature	80degrees
Lighting System	Ceiling lights	8 Units, each 4 x 36W Philips lamps, Total 1152 W
	Side lights	8 Units, each 4 x 20W Philips lamps, Total 800 W
	Illumination	1200LUX
Controlling system	Switched control panel	Spraying&baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gauge

Jiangsu Jingzhongjing Industrial Paint Equipment Co., Ltd, is located in the Yangtze River Delta Economic Zone, China Industrial Painting Base, Yancheng city, Jiangsu Province. We have the plant area of 99000m2, garden-style industrial zone. We have the staff of 260, including 20 engineers with 15years designing experience. Our annual production capacity can achieve 2, 500 sets paint booth.
We adhere to the "heritage of big business style, classic gaming counterparts, - creating the world brand" core values. Pursuit high goals, has won wide recognition and praise from the government and the market.
Our products are JZJ Brand spray booth, sandblasting booth, shot blasting machines etc. our products have passed the ISO9001, EU CE, the products have been shipped in the domestic 34 provinces and more than 50 countries like Germany, Japan, Russia etc.
Our products are well-known in the industrial of the automobile, aviation, military, wind power, nuclear power, engineering machinery, machine tool manufacturing, and other industries.
Welcome the customers from China and all over the world to join us!
