Automotive Educational Equipment, Automobile Car Didactic Set Car Training Equipment Reversing Radar System Demonstrating Board

Product Specifications

Prod Model:	DLQC-FZ016
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Specifications

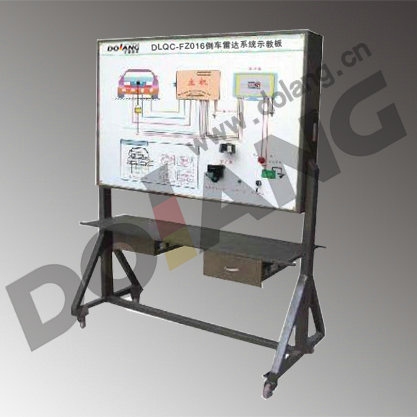

Reversing Radar System Demonstrating Board
Size: 1260 * 850 *1860mm.

DLQC-FZ016 Reversing Radar System Demonstrating Board

1. Introduction
The device is designed based on Passat B5 reversing radar system to holistically demonstrate structures and operation of system. All parts are original parts, before delivery through layers of inspection, production quality management according to ISO9001: 2008 standards implementation. The device applies to theoretical teaching and maintenance training of reversing radar system in secondary and senior vocational skill schools, normal education and training institutions.




2. Basic Configuration


Reversing radar control unit assembly, speakers, radar detector, liquid crystal displays, alarm systems, relays and fuse box, training panel, ignition switch, ignition key, the power switch, DC12 power, movable framework (with self-retention wheels), supporting manual and training guide book and other components.

.

3. Features

1. Real and operable automobile reversing radar system are used to illustrate structures and works of system.

2. The instruction board is installed reversing radar system color circuit diagram with detection terminals to detect electric signals, for example, resistance, voltage, current, and frequency, of circuit components.

3. Fault setting and appraisal system (see fault setting and appraisal function introduction).

4. The teaching board's base frame is made of steel and the surface is paint-coated. Self-retention wheels are installed and a 40cm2 tabletop is fixed on the base frame to place materials and light testing devices.


4. Training content

1. Reversing radar system structure composition and working principle project training.

2. Reversing radar system each circuit element voltage, resistance, signal detection project training.

3. Reversing radarsystem circuit diagram analysis project training.

4. Reversing radar system troubleshooting and exclusions training.

5. Technique feature

1. Bracket adoped imported luxury car paint, sprayed at high temperatures, with anti-corrosion function.

2. Support frame material select GB high quality (40 * 60 * 3mm) square tube welding.
3. Dimensions: . 1260 * 850 *1860mm.
We are in a good position to offer series of training set as follows:


1) Electrical technology Know-how Training Set


2) Innovative E-skills&Technology Training Series


3) MCU Technology Training Series


4) Machine Tools Electrical Control Training Series


5) Machine Tools Electrical Control Training Series(Model-type)


6) CNC Machine Tools Maintainance Training Series(Model-type)


7) Building Automatic Training Series


8) PC Training Series


9) Innovative industrial Automatic Control Technology Training Series


10) Pneumatic Training Series


11) Hydraulic Training Series


12) Sensor Training Series


13) Motor Training Series


14) Mechatronic Training Series


15) MPS Training Series


16) FMS Training Series


17) Mechanical Training Series


18) Engrave machine series


19) Automobile training series

8. Packaging And Delivery Details:


Packaging Detail:


1). Packaging for training kit: Plastic package + carton + plywood pallets


2). Packaging for training equipment: Plastic package + plywood pallet


Delivery Detail: 40 to 50 days after Received advanced payment.


9. After-sales Service And Training for Foreign User


1) For our exported equipments, the Warranty is one year, within one year, if there is any problem for spare parts(except damage by man-made) We can supply and replace free of charge. And if after one year, we also supply the service. The difference is user need to pay it.

2) We dispatch our professional and experienced engineer to install equipments and make training for the end users
