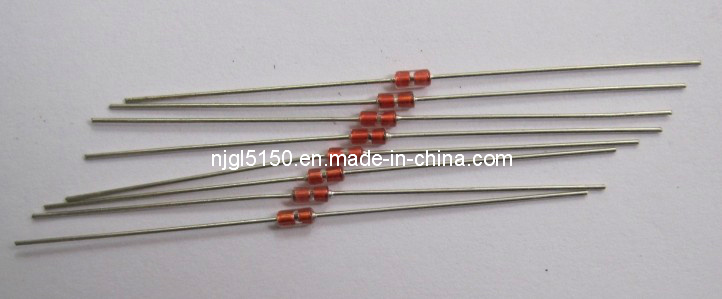

Axial Glass Encapsulated Series of Ntc Thermistor

Product Specifications

Type:	Thermal Resistor
Function For Resistance:	Protective Resistor

Product Description

Axial glass encapsulated series of ntc thermistor are manufacturered to press the thermistor chips and two axial leads together and being encapsulated in glass,they have :

1. Good stability and security

2. Broad range of resistance

3. Small size, light weight, strong frame

4. Fast response to the temperature, high delicacy


Main Electrical Specifications
.Rated Zero-Power Resistance(R25):1~2000KΩ;
.ResistanceTolerance:±1%;±2%;±3%;±5%;±10%;
.Beta Value Range 25/50ºC:3200~4300K;
.Beta Tolerance:±0.5%;±l%;±2%;
.Dissipation Constant(Still Air):≥1.3mv/ºC;
.Thermal Time Constant(still Air):≤20s;
.Operating temperature range:-50ºC~+200ºC.

part number	(R25)		B value	operating temperature	(mW/ºC)	(S)
	(KΩ)	(± %)	(K)
MF58-202-3435	2	±1% ±2% ±3% ±5%	3435	-40ºC  ~ +250ºC	≥2.0   in the air	≤12   in the air
MF58-502-3470	5		3470
MF58-103-3435	10		3435
MF58-103-3600	10		3600
MF58-103-3700	10		3700
MF58-103-3950	10		3950
MF58-103-4100	10		4100
MF58-203-3950	20		3950
MF58-233-3950	23		3950
MF58-303-3950	30		3950
MF58-40.27-3979	40.27		3979
MF58-473-3950	47		3950
MF58-503-3950	50		3950
MF58-503-4050	50		4050
MF58-104-3899	100		3899
MF58-104-3950	100		3950
MF58-104-3990	100		3990
MF58-104-4050	100		4050
MF58-104-4200	100		4200
MF58-204-4260	200		4260	-40ºC   ~ +300ºC
MF58-504-4260	500		4260
MF58-504-4400	500		4400
MF58-105-4400	1000		4400
