Xuchang Chengrui Insulation Material Co., Ltd. >> B Class 6630 DMD Electrical Insulation Paper

B Class 6630 DMD Electrical Insulation Paper

Name: B Class 6630 DMD Electrical Insulation Paper
Brand: china-manufacturer-directory.com
SKU: 702421452
Availability: InStock
Rating: 4.5 (83 reviews)

Supplier:	Xuchang Chengrui Insulation Material Co., Ltd.
Price:	US $ 3kg
Min Order:	300kg
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	6630
Markets:	Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Thickness:	0.15mm 0.17mm 0.20mm 0.23mm 0.25mm 0.30mm 0.45
Width:	1000mm
Applications:	It Is for B- Grade Motors, Generators or Other Ele
Package:	in Roll
Application:	Motor
Type:	Solid
Chemistry:	Organic Insulation
Material:	Paper
Thermal Rating:	B 130
Maximum Voltage:	10KV~20KV
Brand:	Chr

Product Description

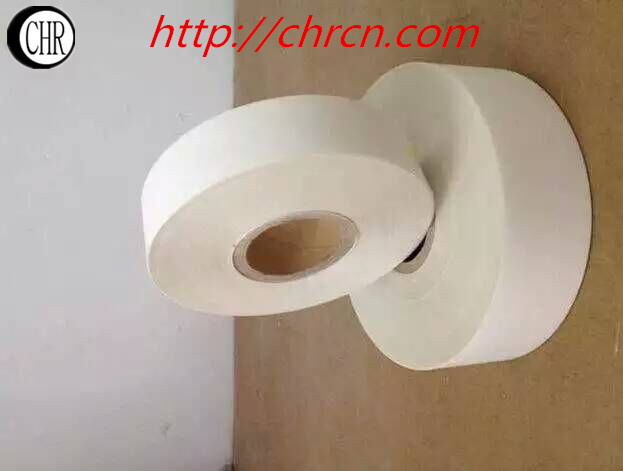

High quality 6630 DMD electric motor insulation paper

1. Composition/ process:

6630 DMD INSULATION PAPER consists of two-layer polyester fiber non-woven fabric and a single layer of polyester film in the center.

Heat-resistance: B class 130°C F CLASS 155 °C

2. Applications:

It is for B-F grade motors, generators or other electric appliances, as slot ,interurn,phase and liner insualtion.

3. Specifications:

Thickness: 0.15mm 0.17mm 0.20mm 0.23mm 0.25mm 0.30mm 0.40mm

Width: 1000m

Color: white or customized

Packing:50+/-5kg/roll

Main parameters:

Properties			Units	Values
Nominal thickness			mm	0.15	0.17	0.20	0.23	0.25	0.30	0.35
Thickness tolerance			mm	±0.02	±0.03	±0.03	±0.03	±0.03	±0.03	±0.04
Grammage and tolerance			g/m2	140±20	190±28	220±33	260±39	300±45	350±52	425±63
Film Nominal Thickness			mm	0.050	0.075	0.10	0.125	0.15	0.19	0.25
Tensile Strength	MD	No bending	N/10mm	≥80	≥120	≥140	≥180	≥190	≥270	≥320
	MD	After bending		≥80	≥105	≥120	≥150	≥170	≥200	≥300
	TD	No bending		≥80	≥105	≥120	≥150	≥170	≥200	≥300
	TD	After bending		≥70	≥90	≥100	≥120	≥130	≥150	≥200
Elongation	MD	No bending	%	≥15					/
	MD	After bending		≥10					≥5
	TD	No bending		≥20					/
	TD	After bending		≥10					≥5
Breakdown Voltage No bending			kV	≥6	≥7	≥9	≥10	≥12	≥15	≥18
Bonding property at room temp.			/	No delamination
Bonding property at 155±2°C, 10 min			/	No delamination, no blister, no adhesive flow
The quality warranty period			Twelve months(under 40°C)

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
