B Class Electrical Insulation Paper DMD 6630

Name: B Class Electrical Insulation Paper DMD 6630
Brand: China-Manufacturer-Directory.com
SKU: 701956662
Availability: InStock
Rating: 5 (122 reviews)

Supplier:	Xuchang Chengrui Insulation Material Co., Ltd.
Price:	US $ 3kg
Min Order:	300kg
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	6630
Markets:	Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Thickness:	0.15mm 0.17mm 0.20mm 0.23mm 0.25mm 0.30mm 0.45
Width:	1000mm
Applications:	It Is for B- Grade Motors, Generators or Other Ele
Application:	Motor
Type:	Solid
Chemistry:	Organic Insulation
Material:	Paper
Thermal Rating:	B 130
Maximum Voltage:	10KV~20KV
Brand:	Chr

Product Description

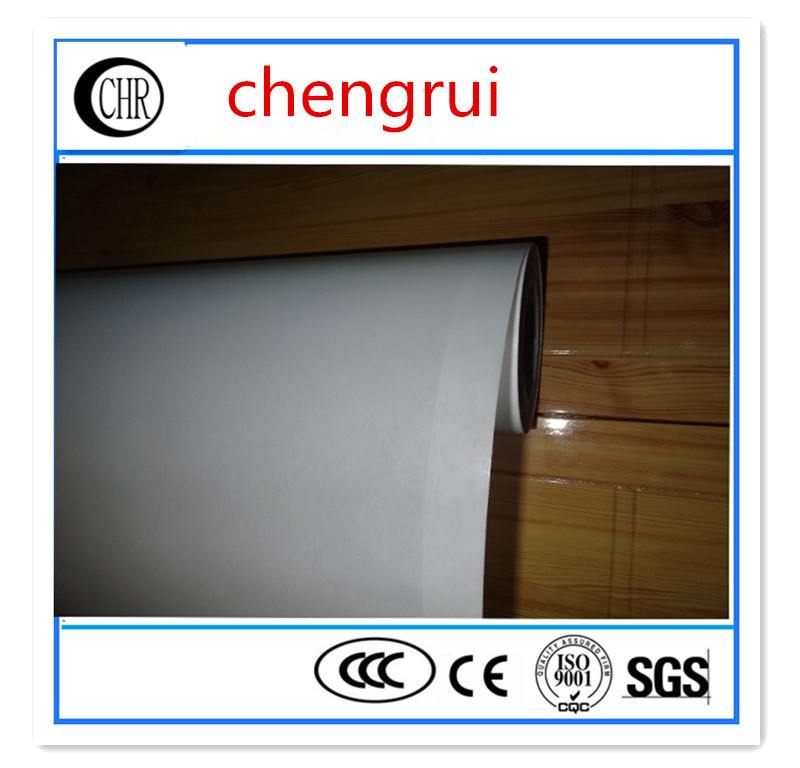

6630 DMD Flexible composite Material-insulation paper
1. Composition/ process:
   6630 DMD INSULATION PAPER consists of two-layer polyester fiber
   non-woven    fabric and a single layer of polyester film in the center.
   Heat-resistance: B class  130°C

2. Applications:
   It is for B- grade motors, generators or other electric appliances,
   as slot ,interurn,phase and liner insualtion.

3. Specifications:
   Thickness: 0.15mm 0.17mm  0.20mm  0.23mm  0.25mm  0.30mm 0.45mm
   Width: 1000m
   Color: white or customized

4. Why not choose CHENGRUI ?
  - Enviroment-friendly products
  - High cost-efficiency
  - Super quality
  - Customer- oriented service

Technical Parameters for Electrical  DMD insulation  paper

Product Name

Properties

Value

6630

Thickness(mm)

0.15

0.17

0.2

0.25

0.30

0.35

DMD composite paper

Tolerance(mm)

±0.02

±0.025

±0.03

±0.04

Breakdown Voltage(kv)

Bong Strength AT ROOM Temp

No Delamination

Bong Strength at
(155±2)ºC,10min

No Delamination, no blister, no adhesive flow

NO.	Item	Unit	Normal value
1	Nominal thickness	mm	0.15	0.17	0.20	0.25	0.30	0.35
2	Nominal weight and tolerance	g/m2	140±20	190±28	225±33	300±45	350±52	425±63
3	Nominal thickness of film	um	50	75	100	150	190	250
4	TensileStengt MD no bending MD after bending TD no bend TD after bending	N/10mm	≥80 ≥80 ≥80 ≥70	≥120 ≥105 ≥105 ≥120	≥140 ≥120 ≥120 ≥100	≥190 ≥170 ≥150 ≥130	≥270 ≥200 ≥200 ≥150	≥320 ≥300 ≥300 ≥200
5	Elongation MD no bending MD after bending TD no bending TD after bending	%	≥15 ≥10 ≥20 ≥10	≥15 ≥10 ≥20 ≥10	≥15 ≥10 ≥20 ≥10	≥15 ≥10 ≥15 ≥10	≥5 ≥5	≥5 ≥5
6	Breakdown voltage Normal	KV	≥6	≥7	≥9	≥12	≥15	≥18
7	Bonding strength at room temperature	-	No delamination
8	Bonding strength at 155±2ºC for 10 min	-	No delamination,blister and drainage

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
