Product Specifications
| Prod Model: |
B3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

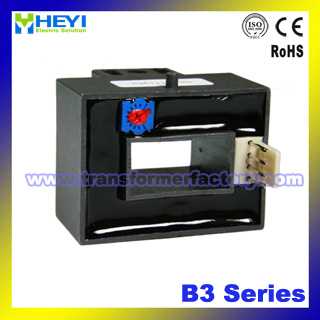

B3 series current sensor is a closed loop device based on the principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.
| Electrical data (Ta=25ºC±5ºC ) |
| Type | B3-50A | B3-100A | B3-200A | B3-300A | Unit |
| Rated current(Ipn) | ±50 | ±100 | ±200 | ±300 | A |
| Measure range(Ip) | 0- ±75 | 0- ±150 | 0- ±300 | 0-±400 | A |
| Turns ratio(Np/Ns) | 1:1000 | 1:2000 | 1:2000 | 1:3000 | T |
Measure resister
with±15V | @ ±50Amax
0(min)500(max) | @ ±100Amax
0(min)245(max) | @ ±200Amax
0(min)75(max) | @ ±300Amax
0(min)52(max) | Ω |
@ ±75Amax
0(min)245(max) | @ ±150Amax
0(min)118(max) | @ ±300Amax
0(min)33(max) | @ ±400Amax
0(min)20(max) | Ω |
| Coil resister | 10 | 42 | 42 | 75 | Ω |
| Rated output | 50 | 50 | 100 | 100 | mA |
| Supply voltage | ±12, ±15, ±18 | V |
| Power Consumption | ≤20+IpX(Np/Ns) | mA |
| Offset current | @Ip=0 ±0.15 | mA |
| Offset drift | @ -40~+85ºC ≤±0.4 | mA |
| Linearity | @Ip=0-±Ipn ≤0.1 | %FS |
| Response time | @50A/μS, 10%-90% ≤1 | μS |
| Galvanic isolation | @ 50HZ,AC,1min 3 | KV |
| di/dt | >100 | A/us |
| Bandwidth | @ -1dB 0~150 | KHZ |
·Variable speed drives
·Welding machine
·Battery supplied applications
·Uninterruptible Power Supplies (UPS)
·Electrochemical
Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.
3. Elucidation: 1:+15V 2:-15V 3:I0UT 4:NC
1. When the current will be measured goes through a sensor, the current will be measured at the output end.(Note: The false wiring may result in the damage of the sensor)
2.Custom design in the different rated input current and the output current are available.
·UL94-V0.
·EN60947-1:2004
·IEC60950-1:2001
·EN50178:1998
·SJ 20790-2000
| Value | Unit |
| Operating temperature(TA) | -40 to +85 | ºC |
| Storage temperature(TS) | -40 to +125 | ºC |
| Mass(approx) (M) | 40 | g
|
