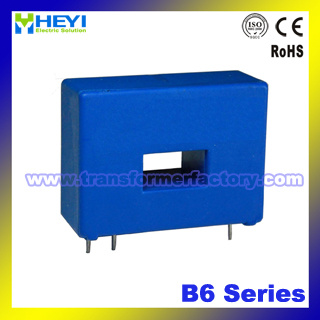

(B6 Series) Closed Loop Mode Hall Effect Current Sensor for Battery Supplied Applications
Product Specifications
| Prod Model: |
B6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
B6-50atb6-100A |
| Power Supply: |
+-12,+-15 |
| Internal Resister: |
400 Ohm |
| Supply Voltage: |
+-12V, +-15V |
| Power Consumption: |
Less Than 20+ Ipx(Np/Ns) |
| Linearity: |
Less Than 0.1 |
| Galvanic Isolation: |
@ 50Hz,AC,1min 3kv |
| Courier: |
DHL, TNT, FedEx... |
| Bandwidth: |
@ -3dB 0~200kHz |
Product Description
B6 series current sensor is a closed loop device based on the principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.| Electrical data (Ta=25ºC±5ºC) |
| Type | B6-50A | B6-100A | Unit |
| Rated current(Ipn) | ±50 | ±100 | A |
| Measure range(Ip) | 0-±75 | 0-±150 | A |
| Turns ratio(Np/Ns) | 1:1000 | 1:2000 | T |
Measure resister
with±15V | @±50Amax
50(min)160(max) | @±100Amax
0(min)110(max) | Ω |
@±75Amax
50(min)90(max) | @±150Amax
0(min)33(max) | Ω |
| Coil resister | 35 | 120 | Ω |
| Rated output | ±50±0.5% | ±50±0.5% | mA |
| Supply voltage | ±12,±15 | V |
| Power Consumption | ≤20+IpX(Np/Ns) | mA |
| Offset current | @Ip=0 ±0.2 | mA |
| Offset drift | @ -40~+85ºC ≤±0.5 | mA |
| Linearity | @Ip=0-±Ipn ≤0.1 | %FS |
| Response time | @50A/μS, 10%-90% ≤1 | μS |
| Galvanic isolation | @ 50HZ,AC,1min 3 | KV |
| Bandwidth | @ -3dB 0~200 | KHZ |

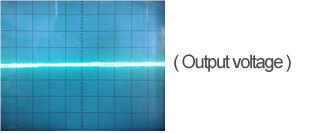

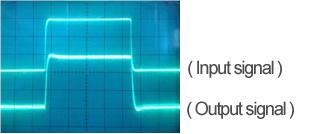

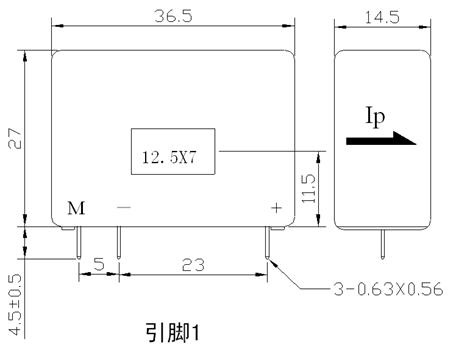

·Variable speed drives·Welding machine·Battery supplied applications·Uninterruptible Power Supplies (UPS)·Electrochemical | Mechanical dimension(for reference only) |
Remarks:1. All dimensions are in mm.2. General tolerance ±1mm.3. Elucidation: 1:+15V 2:-15V 3:I0UT1. When measure current flows according to the direction of the arrowhead, Output terminal gets the same phase current.2. The primary conductor should be≤120ºC.3. The dynamic performance (di/dt and the response time) is the best when the primary hole is fully filled with the bus bar.4. The primary turns should be at the top of the sensor for the best magnetic coupling.5. When the current will be measured goes through a sensor, the voltage will be measured at the output end.(Note: The false wiring may result in the damage of the sensor)6. Custom design in the different rated input current and the output current are available.·UL94-V0.·EN60947-1:2004·IEC60950-1:2001·EN50178:1998·SJ 20790-2000
| Value | Unit |
| Operating temperature(TA) | -40 to +85 | ºC |
| Storage temperature(TS) | -40 to +125 | ºC |
| Mass(approx) (M) | 20 | g |
