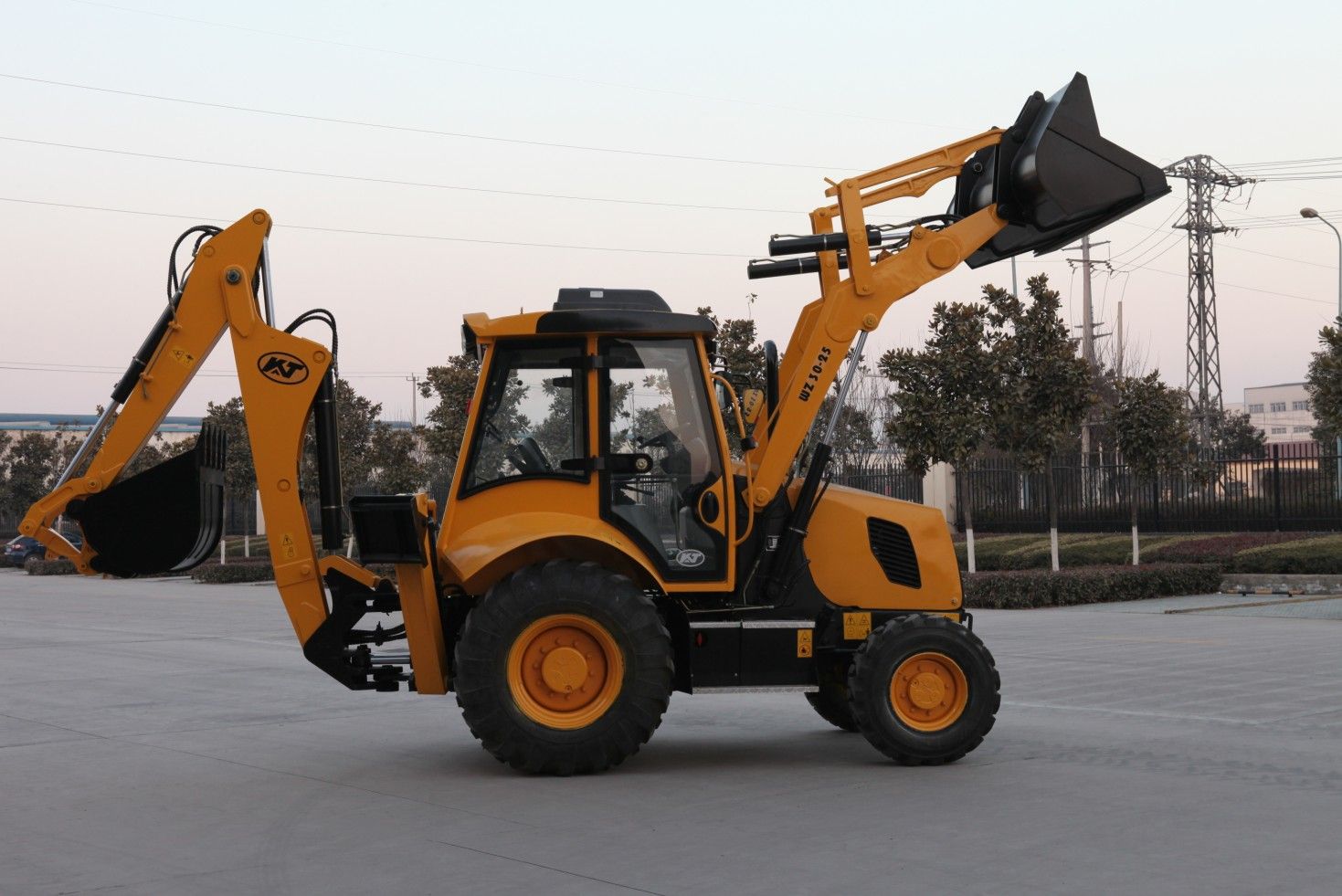

Main Performance:
Backhoe loader's exclusive use chassis, compact structure, rationally distributed.
Equipped with totally enclosed ROPS cab with broad vision and attractive outline design, it is comfort and reasonable to control the machine with its full range and humanization design in control system.
Adopt the Cummmins engine, which is green environmental protection, high power, less fuel consumption, high working efficiency, low use cost.
The imported professional digging/loading transmission system from Italy, and Chinese top brand hydraulic systems enable the high stability, and the machine's performance could reach the international advanced level.
Excellent digging/loading performance brings the best return on customer's investment.
The imported driving axle with differential lock and wet-type brake ensure the hauling ability and safety performance. Big steering angle and big oscillating angle of swing steering axle ensure the high steering ability. Driving brake and parking brake system adopt the self-regulating, full-regulating wet-type brake with free-maintenance.
Optional two-wheel drive or four-wheel drive could meet customer's requirement.
Various optional tools could be equipped according to customer's requirement.
Loading Performance
Mono lever controls boom's rise and fall overturn of the loading bucket and the clutch's shift.
Automatic leveling system of loading bucket avoids material drops out, automatic reposition after dumping.
In-line arrangement double cylinder of the loading system has the superior breakout force. The loading bucket could completely turnover.
Digging Performance:
Spread wing style outriggers and mid-type excavating gear, with superior working stability.
Attached with different attachment, it could accomplish different operations, such as excavating, crumbling, skiving, etc.
Excavating control valve with six jumper valves, special designed buffer system, ensure the working process smoother and steadier.
Item |
Unit |
Parameter |
Backhoe bucket capacity |
m 3 |
0.3 |
Rated loading bucket capacity |
m 3 |
1 |
Rated Lifting Force |
KN |
25 |
Engines rated power/rated speed |
KW/r/min |
82/2200 |
Total operating weight |
kg |
7400 |
Backhoe turning angle |
Left |
º |
90 |
Right |
º |
90 |
Backhoe parameter |
Max. digging radius |
mm |
5150 |
Max. dump height |
mm |
3738 |
Radius at the max. dump height |
mm |
1084 |
Max. digging radius at ground level |
mm |
5105 |
Digging buckets max. rotating angle |
º |
180 |
Max. digging depth |
mm |
4340 |
Max. digging force |
KN |
>50 |
Loading parameter |
Max. dump height |
mm |
2612 |
Dump reach at max. dump height |
mm |
727 |
Bucket drawback angle |
Transportation position |
º |
43 |
Ground position |
º |
34 |
Dump angle |
º |
43.5 |
Digging depth |
mm |
191 |
Max. breakout force |
KN |
>40 |
Max. grade ability |
% |
16.7 |
Max. traction power |
KN |
70 |
Gear and travel speed |
Forward/Backward gear I |
km/h |
5.9/5.9 |
Forward/Backward gear II |
9.8/9.8 |
Forward/Backward gear III |
21.2/21.2 |
Forward/Backward gear IV |
39.8/39.8 |
Min. turning radius |
mm |
3795 |
Total length |
mm |
7077 |
Total height (Cab) |
mm |
2700 |
Max. height for transportation |
mm |
3424 |
Total Width |
mm |
2350 |
Bucket width |
mm |
2315 |
|
|
|
|
|
|
Loading Operation Parameter |
Rated Bucket Capacity |
1.0m³ |
Max. Dumping Clearance |
2612 mm |
Max. Dump reach |
727 mm |
Dig depth |
191 mm |
Bucket upward angle at max. working height |
63° |
Drawback angle at ground pos. |
40° |
Max. breakout force |
>40KN |
Rated Lifting Force |
25KN |
Rise Time |
≤5.5s |
Fall Time |
≤4.5s |
Tilting Time |
≤1.5s |
Excavating Operation Parameter |
Rated Backhoe Bucket Capacity |
0.3 m³ |
Max. Digging Depth |
4340 mm |
Max. Digging Force |
>50KN |
Max. Digging Radius |
5150 mm |
Max. Dump Height |
3738 mm |
Max. Outreach from mid. of Rear Axle |
6583 mm |
Max. Outreach at the max. dump height |
1084 mm |
Turning Angle |
180° |
Xuzhou KAT Machinery Co., Ltd. is a Sino-Foreign joint venture, focusing on the manufacturing agricultural machinery and multipul purpose construction machinery. With the design concept of construction machinery and the advantage of XCMG Research Institute, KAT adopts the advanced design method and chooses the mature parts of vehicle and construction machinery, featuring integrated frame and modularized power train. KAT has the proprietary intellectual property rights, and gains the national patent. The tractor adopts the structure, which is convenient to equip with various construction equipments and other devices to enhance the functions and efficiency of the tractor.
The company takes the large horse tractor as the product development direction, and the manufactured KAT1104, KAT1204, KAT1304, KAT1404, KAT1604 and KAT1804 has been launched in the market. With the unique integrated frame and modularized power train, the product could adapt to the highly efficient work in farmland, transportation, digging, shoveling, hoisting, and road building, which improves the utilization ratio of the tractor to build New Socialist Countryside.
