Product Specifications

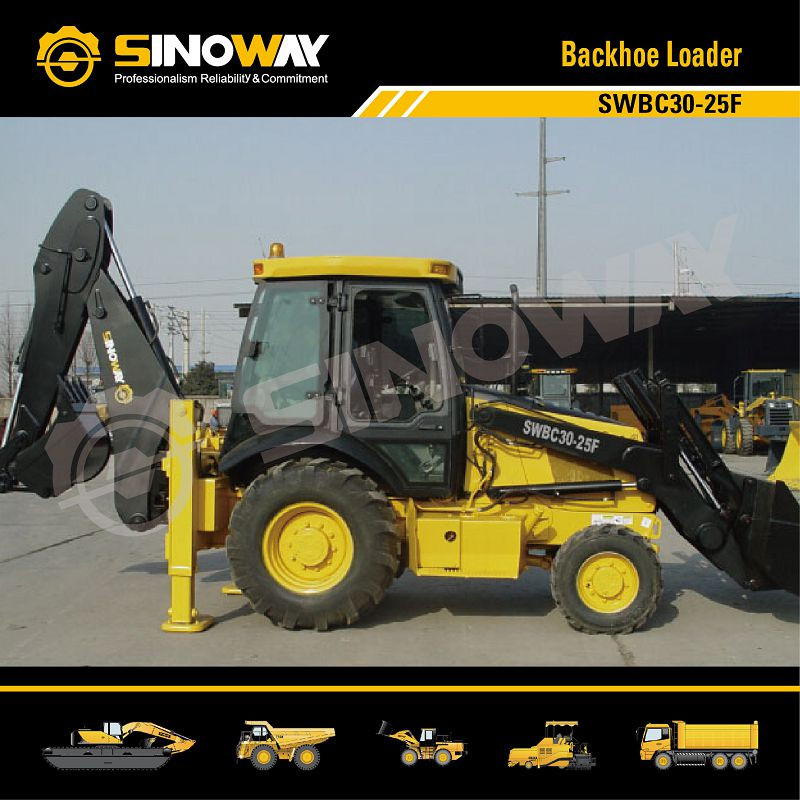

| Prod Model: |
SWBC30-25F |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Walking Mode: |
Wheeled |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
| Type: |
Backhoe Loader |
| Scraper Type: |
Front Loader & Backhoe |
| Load And Unload Method: |
Front Loader & Backhoe |
Product Description
Loader Capacity 1.0 m³
Backhoe Capacity 0.2 m³
Rated Power Perkins 74 kw
Operating Weight 7800 kg
| Overall Dimension |
| Overall length(with bucket on ground) | 5840(mm)(Standard bucket) 5800(mm)(Four in one bucket ) |
| Overall width(at stabilizer ) | 2240mm) |
| Width (to outside tyre) | 2057(mm) |
| Width of load Bucket | 2313(mm)(Standard bucket) 2100(mm)( Four in one bucket) |
| Height of cab | 2720 (mm) |
| Max. operating height of digging boom | 3548 (mm) |
| Wheelbase | 2155.5(mm) |
| Back wheel Tread | 1557(mm) |
| Fore wheel Tread | 1714(mm) |
| Min. ground clearance | 355(mm) for 2WD 275(mm) for 4WD |
| Traveling speed(Km/h), 4 forward and 4 reverse |
| I gear forward/reverse | 5.8/7.0 |
| II gear forward/reverse | 10.5/12.6 |
| III gear forward/reverse | 20.1/24.3 |
| IV gear forward/reverse | 40.2/48.6 |
| Main Loading Technical Specification |
| Rated load | 1700(Kg(Standard bucket) 1500(Kg)(Four in one bucket) |
| Operating weight | 7800 Kg(Standard bucket) 8200 Kg |
| Lifting capability to full height | >2500 Kg |
| Capacity of load bucket | 1.0(m3)(Standard bucket) 0.9(m3)( Four in one bucket) |
| Max. breakout force | >40kN |
| Max. dump clearance | 2611(m(Standard bucket) 2550(mm)(Four in one bucket ) |
| Max. Dump reach | 726(mm)(Standard bucket) 744(mm) |
| Dumping angle at full height | 43.5o(Standard bucket) 45.5o(Four in one bucket) |
| tilting angle of bucket | 40.20 (On ground position) |
| 43.50 (In the transportation position) |
| Max. digging depth(with bucket bottom horizontal) | 191mm |
| Min. turning radius |
| Outside of bucket | 5280(mm) for 2WD 5670(mm) for 4WD |
| Center of front wheel | 3795 (mm) for 2WD 4300(mm) for 4WD |
| Lifting time of loading bucket | ≤5.1(sec.) |
| Lowering time of loading bucket | ≤4.9(sec.) |
| Dumping time | ≤0.9(sec.) |
| Main Digging Technical Specification |
| Rated digging bucket capacity | 0.2(m3) |
| Max. digging depth | 4365(mm) |
| Max. digging force | >56.6 10%kN |
| Max. digging radius | 5390(mm) |
| Max. dumping height | 3510(mm) |
| Central offset | 550mm |
| Swing angle | 1800 |
| Max. rollback angle of digging bucket | 2010 |
| Diesel engine |
| Model | Perkins |
| Type | Direct injection. Turbocharged. Water cooling |
| Rated output | 74 kW / 99HP |
| Rated speed | 2200rpm |
| Total exhaust of cylinder | 4.5(L) |
| Compression ratio | 18.5:1 |
| Inter-bore of cylinder/stroke | 4X102/138(mm) |
| Model of Alternator | Delco Remy 23SI |
| Parameter of alternator | 24V/50A |
| Voltage of starting motor | 12(V) |
| Model of starting motor | Denso R2.5 |
| Max. Torque at specified speed | 414N.M@1500rpm |
| Starting type | Electric |
| Min. specific fuel consumption | 225(g/Kw.h) |
| Net weight | 338Kg |
| Transmission System |
| Torque Converter |
| Model | CARRARO |
| Cooling type | Pressure oil circulating |
| Transmission case |
| Model | CARRARO |
| Type | Synchromesh mechanical shift |
| Gear shift position | 4 Forward and 4 reverse gears |
| Axle and Tire |
| Model | CARRARO |
| Type of main reducer | spiral bevel gear, single stage |
| Type of final reducer | Single stage planetary |
| Max. steering angle | 550 |
| Grade ability | >30% |
| Max. drawing force | 70±10%(kN) |
| Tire type | Rear tire 19.5L-24R4-12PR |
| Working Device Hydraulic System |
| Model of oil pump | P257A467PRZA12-6 |
| System pressure | 215(kgf/cm2) |
| Model of priority valve | WALVOIL SD16/2, SD16/6 |
| Steering System |
| Type | Fore wheel Steering |
| Model of steering pump | P257A467PRZA12-6 |
| Model of steering gear | 150-1219 |
| System pressure | 140(kgf/cm2) |
| Oil Capacity |
| Fuel(diesel) | 151(L) |
| Engine lubricating oil | 11(L) |
| Oil for converter and gear box | 18.5(L) |
| Oil for hydraulic system | 110(L) |
| Oil for driving axles(F/R) | 7.6+17(L) |
