Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Wheel Excavator |
| Size: |
Small-Scale |
| Certification: |
CE |
| Condition: |
New |
Product Description

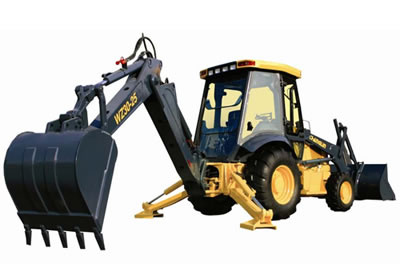

WZ30-25 Backhoe Loader
Is a new multi-function engineering machine which gathering the loading and excavating in the integral whole machine, it is the new generation model of the development based on the same kind product technique in domestic and international.
Having adopted four wheel drive, hydraulic torque converter, hydraulic steering system, hydraulic. It is extensively used in the road maintenance, farml and developments, getting clay for making brickiln, piping builds, the cable builds, park virescence and the excavating of the road opens to dig, broking up etc.
This machine has below characteristics:
The Yucai engine: Low noise, low exhaust gas, low west, green environmental protection, driving motive, good reliability the spirit valve control take type brake system and parking brake system move two unite as one, when there is trouble in the gas brake system, it can make in time brake automatically, so it is more safety;
Humanization designs: The hand handle layout reasonable, manipulating is portable; Steer device, gauge dish and the chair all can be adjusted in up-down and front-back directions according to your sense, so it is comfortable;
The back wheel bridge can swing up and down round the center, it make wheels has well clinging, so the machine has good span and cross capability,
Optimized load work device: Reasonable joint layout, dependable position limit function, lavelling bucket automatically in unload position, lacenning labor intensity, and the work range is larger, workforce is more sturdy and steady,
Special middle placed backhoe and wing-spread support leg. When the machine break up stones and do deeper dig work. It has stronger stability than other kind backhoe, of the craft brother the machine take the lead in using hydraulic scale forerunner valve control, manipulating is portable and orientation is exact.
|
Category |
Items |
Value |
|
Description |
Unit |
Specification |
|
Bucket capacity |
m3 |
1.0 |
|
Digger capacity |
m3 |
0.3 |
|
Dumping clearance |
mm |
2700 |
|
Dumping reach |
mm |
950 |
|
Max. stering angle |
% |
35 |
|
Max. steering angle of dig working device |
% |
85 |
|
Rracing speed I(F/R) |
km/h |
0-6.2 |
|
Traceing speed II(F/R) |
km/h |
0-12 |
|
Traceing speed III(F/R) |
km/h |
0-20 |
|
Traceing speed IV(F/R) |
km/h |
0-33 |
|
Back I speed |
mm |
0-8 |
|
Back II speed |
mm |
0-28.5 |
|
Disel engine |
kn |
YC4110 |
|
Style |
kg |
4 cylinders in-line wartering cooling |
|
Rated power |
kW |
65 |
|
Rated speed |
r/min |
2500 |
|
Tread |
mm |
2600 |
|
Tires |
|
16/70-24 |
|
Max. digging depth |
mm |
4400 |
|
Max. digging radium |
mm |
5471 |
|
Overall dimention |
mm |
8000x2200x3350 |
|
Operating weight |
kg |
9500 |
