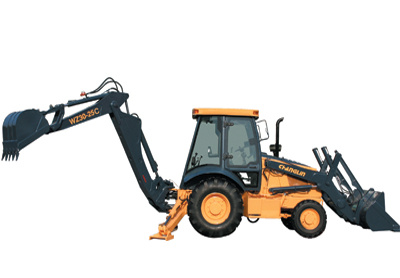

Backhoe Loader (WZ30-25C)

Name: Backhoe Loader (WZ30-25C)
Brand: china-manufacturer-directory.com
SKU: 700293855
Availability: InStock
Rating: 4.4 (94 reviews)

Price:	Negotiable
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Wheel Excavator
Type2:	Backhoe Loader

Product Description

machinery/construction equipment. The backhoe loader commonly composes a tractor, fitted with a shovel/bucket on the front and a small backhoe on the back.

Features of Backhoe Loader WZ30-25C:
1. Equipped with WD DETUZ engine
2.4 forward & 4 reverse synchromesh mechanical shift transmission
3. Combined seal cylinder obtains high seal performance and more reliability
4. Improved loader and backhoe performance
5. CARRARO wet type rear axle with multi-disc brake& CARRARO front axle
6. New-type cab with more space, increases comfort and visibility
7. With 2 wheel driving or 4 wheel driving for option

Item				Unit	WZ30-25C
Backhoe bucket capacity				m3	0.3
Rated loading bucket capacity				m3	1
Rated Lifting Force				kN	> 25
Engines rated power/rated speed				kW	70/2200
Total operating weight				kg	7400
Backhoe turning angle		Left		? /P>	90
		Right		? /P>	90
Backhoe parameter	Max. digging radius			mm	5481
	Max. dump height			mm	3737
	Radius at the max. dump height			mm	1084
	Max. digging radius at ground level			mm	5437
	Digging buckets max. rotating angle			? /P>	163.2
	Max. digging depth			mm	4338
	Max. digging force			kN	5010%
Loading parameter	Max. dump height			mm	2626
	Dump reach at max. dump height			mm	726(at dumping angle
	Bucket drawback angle		Transportation position	? /P>	43.5
			Ground position	? /P>	36.5
	Dump angle			? /P>	43.5
	Digging depth			mm	191
	Max. breakout force			kN	> 40
Max. grade ability				%	> 30
Max. traction power				kN	42
Gear and travel speed	Forward/Backward gear I			km/h	5.8/7.0
	Forward/Backward gear II				10.5/12.6
	Forward/Backward gear II				20.1/24.3
	Forward/Backward gear IV				40.2/48.6
Min. turning radius				mm	4300
Total length				mm	7077
Total height				mm	3424
Max. height (Cab)				mm	2735
Max. Width(outrigger)				mm	2250
Bucket width				mm	2328 (with attachment) 2313 (bucket max. width

Loading Operation Specification
Rated Bucket Capacity(m)	1.0
A. Max. Dumping Clearance(mm)	2612
B. Max. Dump reach(mm)	727
C. Dig depth	191
D. drawback angle at ground pos.	40∑
E. Bucket upward angle at max. working height	63∑
Max. breakout force	40
Rated Lifting Force	25
Rise Time	5.1
Fall Time	4.9
Tilting Time	0.9

Excavating Operation Specification
Rated Backhoe Bucket Capacity	0.3
F. Max. Digging Depth	4340
Max. Digging Force	5010%
G. Max. Digging Radius	5482
H. Max. Dump Height	3738
I. Max. Outreach from mid. of Rear Axle mm	6583
J. Max. Outreach at the Max. Dump Height (mm)	1084
Turning Angle	180∑
