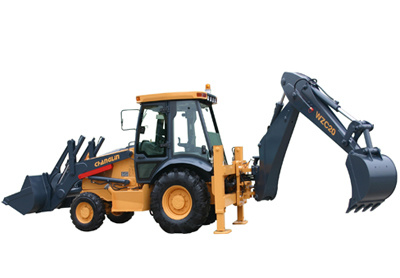

Backhoe Loader (WZC20)

Name: Backhoe Loader (WZC20)
Brand: china-manufacturer-directory.com
SKU: 700292455
Availability: InStock
Rating: 4.7 (49 reviews)

Supplier:	Shanghai Longji Construction Machinery Co., Ltd.
Price:	Negotiable
Min Order:	1/Set
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Wheel Excavator
Type2:	Backhoe Loader

Product Description

Features of Backhoe Loader WZC20:
1. Equipped with reliable genuine Cummins engine
2.4 forward & 4 reverse synchromesh mechanical shift transmission
3. Full-closed ROP/FOPS Cab with more space, increases comfort and visibility
5.4 wheel driving and CARRARO wet-type rear axle with multi-disc brake & CARRARO front axle
5. Multi-purpose 4 in. 1 bucket has extended application range including loading, scraping, shoving, blade, clamping, paving and lifting.
6. The bucket is controlled through electrical- hydraulic mode.
7. Adopted Pilot valve controlling loader and backhoe valve, easy and flexible operation.
8. Extendible dipper upgrades productivity by reducing the number of travel movements.
9. The mechanical quick coupler attachment is available.
Applications of Backhoe Loader WZC20:
The backhoe loaders' versatility and compact size makes them one of the most popular construction machinery/construction equipment. These backhoe loaders are widely used for larger projects such as building a house, fixing city roads, mining, etc.

Overall Dimension
1	Overall length(with bucket on ground)	5840(mm)(Standard bucket) 5800(mm)(Four in one bucket )
2	Overall width(at stabilizer )	2240mm)
3	Width (to outside tyre)	2057(mm)
4	Width of load Bucket	2313(mm)(Standard bucket) 2100(mm)( Four in one bucket)
5	Height of cab	2720 (mm)
6	Max. operating height of digging boom	3548 (mm)
7	Wheelbase	2155.5(mm)
8	Back wheel Tread	1557(mm)
9	Fore wheel Tread	1714(mm)
10	Min. ground clearance	355(mm) for 2WD 275(mm) for 4WD
11	Traveling speed(Km/h),4 forward and 4 reverse
	(1) gear forward/reverse	5.8/7.0
	(2) gear forward/reverse	10.5/12.6
	(3) gear forward/reverse	20.1/24.3
	(4) gear forward/reverse	40.2/48.6
Main Loading Technical Specification
1	Rated load	1700(Kg(Standard bucket) 1500(Kg)(Four in one bucket)
2	Operating weight	7800 Kg(Standard bucket) 8200 Kg
3	Lifting capability to full height	>2500 Kg
4	Capacity of load bucket	1.0(m3)(Standard bucket) 0.9(m3)( Four in one bucket)
5	Max. breakout force	>40kN
6	Max. dump clearance	2611(m(Standard bucket) 2550(mm)(Four in one bucket )
7	Max. Dump reach	726(mm)(Standard bucket) 744(mm)
8	Dumping angle at full height	43.5º(Standard bucket) 45.5º(Four in one bucket)
9	tilting angle of bucket	On ground position	40.20
		In the transportation position	43.50
10	Max. digging depth(with bucket bottom horizontal)	191mm
11	Min. turning radius
	(1) Outside of bucket	5280(mm) for 2WD 5670(mm) for 4WD
	(2) Center of front wheel	3795 (mm) for 2WD 4300(mm) for 4WD
12	Lifting time of loading bucket	≤5.1(sec.)
13	Lowering time of loading bucket	≤4.9(sec.)
14	Dumping time	≤0.9(sec.)
Main Digging Technical Specification
1	Rated digging bucket capacity	0.2(m3)
2	Max. digging depth	4365(mm)
3	Max. digging force	>56.6 + 10kN
4	Max. digging radius	5390(mm)
5	Max. dumping height	3510(mm)
6	Central offset	550mm
7	Swing angle	1800
8	Max. rollback angle of digging bucket	2010

Diesel engine
1	Model	Cummins 4BT4.5-C99
2	Type	Direct injection. Turbocharged. Water cooling
3	Rated output	74 kW / 99HP
4	Rated speed	2200rpm
5	Total exhaust of cylinder	4.5(L)
