| Price: | US $ 5000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
Advantages:
1. Short working cycle and high efficiency: high pressure squeezing, can greatly reduce the water content in cake in a short time,
2. Low operation cost: wholly Automatic program-controlled. This membrane filter press can be working unattended, and saving the operation cost.
3. Simple operation: Adopt upper washing device, with few actions and synchronous with auto plate shifting machine. The washing cycles can be set according to requirements (can be regulated on site)
4. Low power consumption: the diaphragm squeezing function, in a very short time to complete this process, save the power consumption.
5. Widely application: corrosion resistance is strong; basic applies to all solid-liquid separation projects
6. High pressure squeezing: the TPE elastomer makes the filter plate with good quality and can achieve maximum pressure filter 25 MPA, so that the moisture content is reduced greatly, save drying cost and improve the yield.
7 Automatic drip trays: drip tray also can be added according to customer's needs and auto open & close can be controlled by PLC system
We have many kinds of plates, from 150,250,390,520,700,800,870,1000,1250,1500,2000mm!
For any equipments,we can manual, semi-auto, full auto type, based on customers's requirements.
This is a type 1250 size with 200 m2 filtering area machine, made for an USA customer.
It is with auto compression, auto pull-plate system, auto bomb door, auto washing cloth, belt conveyor,working plant. Need only one worker to do inspection work.
1. pressing device dribe pressing plate forward to push all media plates together till thust plate
2. stop pressing and feed solution mixed solution mixed solid and liquid, when find liquid coming out become less, stop feeding
3. start to make pressing plate backward
4. separate each media plate and the cake down

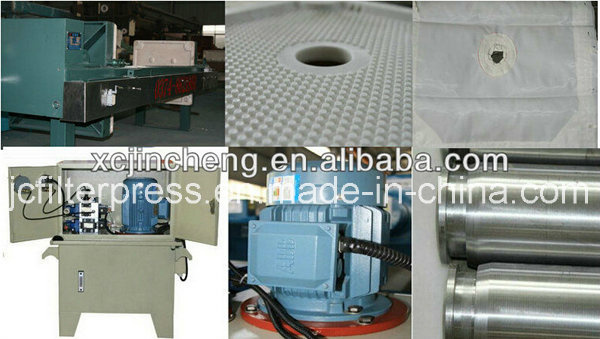

Spare Parts:
The automatic hydraulic device is used for pressing and releasing the filter plate. The electrical contract pressure gauge is available to automatically maintain pressure. The operation of automatically pushing and pulling filter plate can realized by the automatic pulling plate which is driven by Integrating motor with fluid power.
The supporter is manufactured by welded steel structure with high intensity ,featuring high intensity. stable structure ,long useful life ,so it can support the maximum pressure from filtration.
Various kinds of filter cloth which suit for different kinds of slurry, improving the filtering accuracy; the highest filtration accuracy can be 0.2micron.
Rising Star, Promising Future for China's Filter Press Industry
Automatic Dewatering Membrane Filter Press Features:
Automatic dewatering diaphragm filter press
1 fully automatic control system
2 low dewatering cost
3 low maintenance cost
Slurry treatment from mineral and metallurgical processes - filtration of concentrates:
The filter presses used in these installations allow the slurry treatment for the recovery and recycling of economically important substances and waste disposal. we have been designed to maximize the performance of metal beneficiation (filtration of concentrates) and refining processes. Filtration has gained a thorough experience in the treatment of slurries produced in mines and in the metallurgical industry from the following processes:
Flotation (filtration of concentrates):
Flotation is a process of solid-solid separation used to separate the gangue (waste mineral) from the pulp (desired mineral), exploiting the different surface properties of minerals. The several outlet currents from flotation, composed of concentrated minerals, are filtrated through filter presses.
Hydrometallurgical:
lixiviation, is the process of separating one or more soluble elements from a solid substance using a solvent which can be chemical (acid), biological (bacterial strains) or organic (solvents containing carbon atoms)
purification through active carbons used in gold refining
Pyrometallurgical:
it concerns the refining and working of metals through fusion from which oxides and sulphides are produced. filter presses are fundamentally used for the treatment of slurries obtained from fume-control processes.
Electrolysis:
it concerns the decomposition reactions caused by continuous electric current in order to produce extremely pure metals and recover precious metals.
Service:
Our goal is to add value to your business and contribute to your success:
You get fast delivery
You get first rate technical care
You get the most from your investment.
Technical Support:
24*7 hotline service
Strict product inspection before delivery
Supply the professional technology support online
Service Hot Line:
Tel: +86 371 86610609
24 hotline service for you
Fax: +86 371 866108068
If you read all this introduction, please give me an enquiry, We give total solution , not just a machine,.
This is Arnold from Henan Jincheng.
I am talent to serve you for the filtering technology.
For my factory is largest in the middle China, and we control the core-technology.
| Prod Model: | XMY120/1250 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Filtering Area: | 120m2 |
| Filter Plate Specification: | 1250*1250mm |
| Number Of Plate: | 44 |
| Cubage Of Chamger: | 1800L |
| Filtering Pressure: | 0.5-1.6MPa |
| Structure: | Filte Press |
| Filter Material: | PP |
