Shanghai Qianyu Heavy Industry Machinery Co., Ltd. >> Ball Mill for AAC Block Production Line Grinding Mill

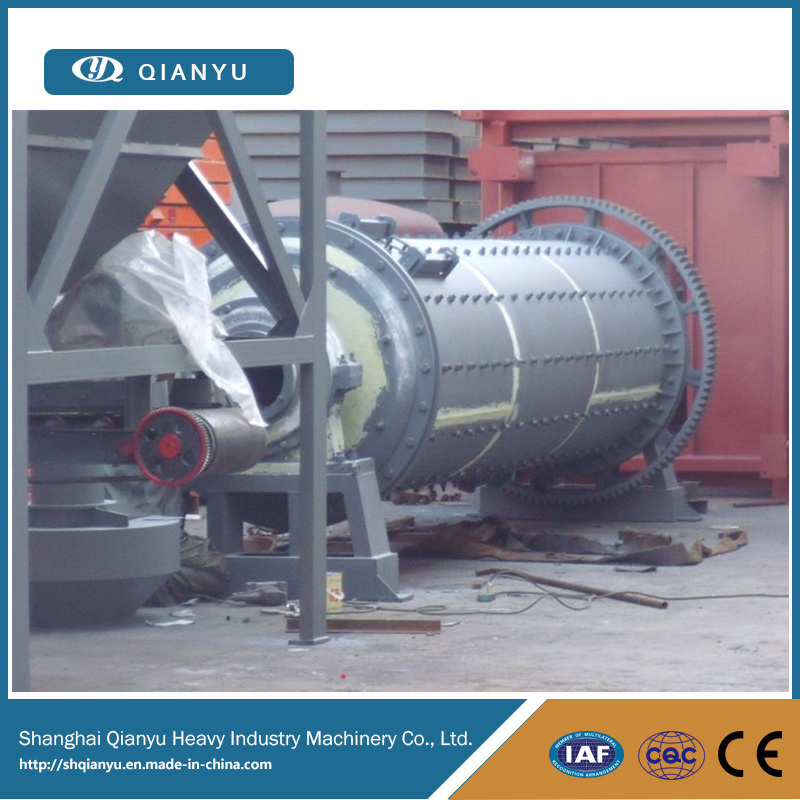

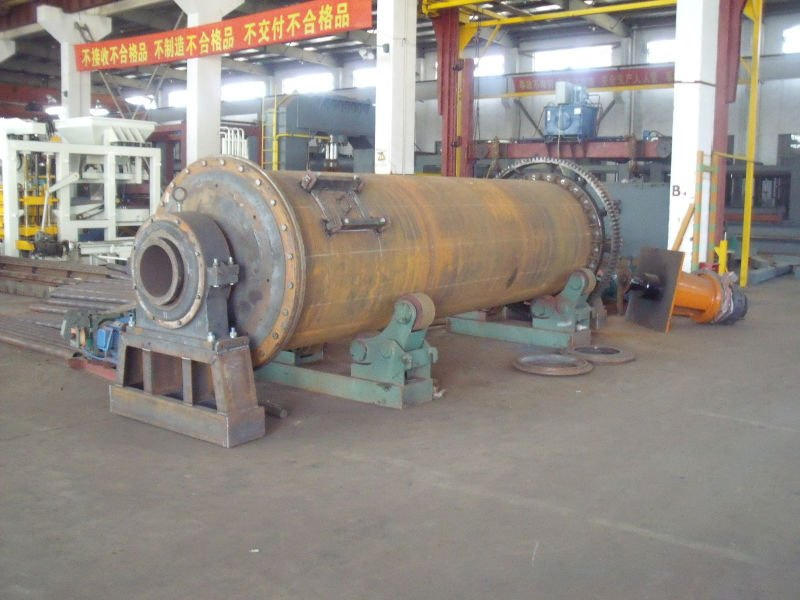

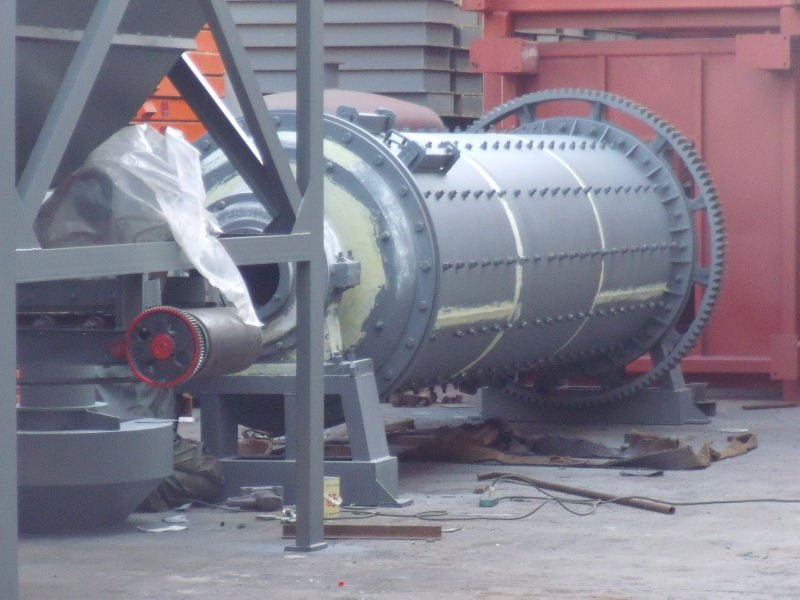

Ball Mill for AAC Block Production Line Grinding Mill

Name: Ball Mill for AAC Block Production Line Grinding Mill
Brand: china-manufacturer-directory.com
SKU: 765195445
Availability: InStock
Rating: 4.5 (137 reviews)

Supplier:	Shanghai Qianyu Heavy Industry Machinery Co., Ltd.
Price:	US $ 10000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	φ 2200x7000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Speed Of Bucket(R/Min):	21
Feed Inlet Size(mm):	≤25
Weight Of Ball(T):	31
Capacity(T/H):	16-18
Power(Kw):	380
Weight(Kg):	62

Product Description

This ball mill machine is widely used for powder-making prodution line including silica sand, cement ,building material,chemical raw material,fertilizer ,ore dressing of ferrous metal and non-ferrous metal ,etc.

Main Technical Parameters:

Model(mm)	Speed of Bucket(r/min)	Feed Inlet Size(mm)	Weight of Ball(t)	Capacity(t/h)	Power(kw)	Weight(kg)
φ1200x4500	32	≤25	5	2-5	55	13
φ1500x5700	28	≤25	10	4-12	130	36
φ1830x6400	22.8	≤25	21	6-17	210	45
φ2200x7000	21	≤25	31	16-18	380	62
φ2700x9000	18	≤25	50	42-50	950	150

Shanghai Qianyu Heavy Industry Machinery Co. Ltd. Is a professional manufacturer of autoclave aerated concrete equipment, autoclaved lime sand brick equipments and mining equipments

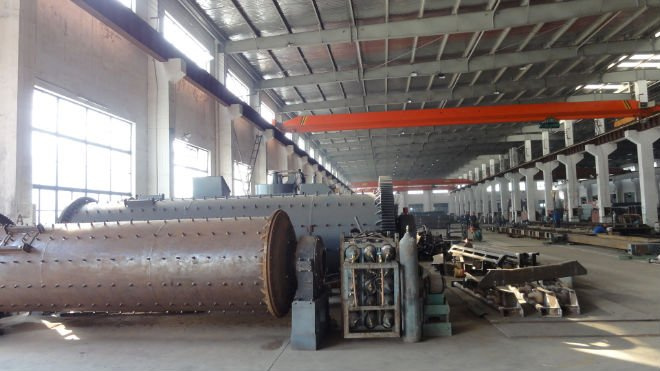

Qianyu is located at No. 398 Xiexin Road, Fengxian District of Shanghai, near to the outer ring expressway A30 and national highway G320, it is only 40 km away from Shanghai Pudong and Hongqiao International Airport, which has the advantage of strategic location and convenient traffic. Qianyu covers an area of 18, 600m2, including 10, 000m2 building area, and also has 70 sets processing equipments.

Through conversion mechanism, talent introduction, equipments investment, working with scientific research institutes, and carefully committed to new wall materials and equipments research and development, Qianyu has become a modern enterprise with advanced technology, excellent equipments, sandard management, good quality and first-class service. And our equipments have been sold to Indonesia, Kazakhstan, Saudi Arabia, Iraq, Iran, Russia India and many other countries.

We have more than 300 staffs, including 36 medium and high level technical experts. The super self-responsibility and social responsibility makes our products on top of the building materials equipments field.

Based on the honest belief, we sincerely cooperate with new and old friends, to promote the development of Chinese building material industry and building material equipments.
