Product Specifications
| Prod Model: |
UV-5R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimensions: |
100 X 52 X 32 Mm |
| Frequency Range: |
136-174MHz and 400-520MHz |
| Storage Channel: |
128 Channel |
| Talk Range: |
5-10km |
| RF Power Output: |
5W |
| Battery Capacity: |
1500mAh Battery |
| Li-ion Battery: |
12.5, 25kHz |
| Frequency Stablity: |
±5ppm |
| Battery Life: |
About 14hrs(5-5-90 Duty Cycle) |
| Color: |
Black |
| Type: |
Wireless |
| Information Content: |
Voice |
| Usage: |
Walkie Talkie |
Product Description

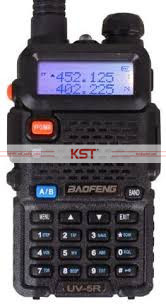

BAOFENG UV-5R UHF VHF Two Way Radio
Baofeng UV-5R two way radio Specification:
1.Frequency Range: 136-174 / 400-480MHz
2.Dual-Band Display, Dual Freq. Display, Dual-Standby
3. Output Power: 5 /1Watts
4. 128 Channels
5. 50 CTCSS and 104 CDCSS
6.Built-in VOX Function
7. 1750Hz Brust Tone
8. FM Radio (65.0MHz-108.0MHz)
9.LED Flashlight
10.Large LCD Display
11. Hight /Low RF Power Switchable
12. 25KHz/12.5KHz Switchable
13. Emergency Alert
14. Low Battery Alert
15. Battery Saver
16 Time-out Timer
17. Keypad Lock
18 Monitor Channel
19. Channel Step: 2.5/5/6.25/10/12.5/25KHz
Item numberBaofeng UV-5R Two Way Radio
General
Frequency Range65-108MHz(FM Receive only)
136-174MHZ and 400-480HZ (TX/RX)
Channel No.128
Frequency Stability2.5ppm
AntennaHigh gain DualBand antenna
Antenna Impedance50Ω
Operating VoltageDC 7.4V
Mode of operationSimple or semi-duplex
Dimension(W x H x D)100 x 52 x 32 mm
Weight250g(including battery, antenna)
Transmitter
Output power4W / 1W (Max 5W)
Modulation Mode16kΦF3E / 11kΦF3E
Maximum deviation<5kHz(Wide) /<2.5kHz(Narrow)
Spurious Radiation<7μW
Adjacent Ch. power≤-65dB(Wide) /≤-60dB(Narrow)
Pre-emphasis characteristics6dB
Current≤1.6A(5W)
CTCSS/DCS deviation0.5+0.1kHz(Wide) / 0.3+0.1kHz(Narrow)
Intermediation sensitivity8-12mv
Intermediation distortion<10%
Baofeng UV-5R Two Way Radio Function:
-Dual band handheld transceiver with display function menu on the display "LCD"
-DTMF encoded
-Lithium-ion battery with high capacity
-FM Radio (65MHz-108MHz)
-105 DCS 50 CTCSS
-Alarm function
-Function "VOX"
-Dual Watch Dual reception
-Selectable Frequency Step 2.5/5/6.25/10/12.5/25 kHz
-Battery Save
-Timer transmission "TOT"programmable
-PC programming
