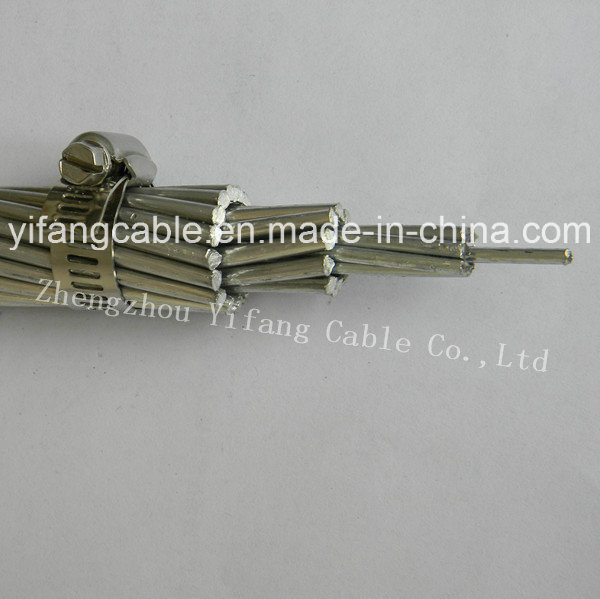

Bare Conductors. AAC, AAAC. ACSR

AAC-All aluminum conductors:
    All aluminum conductors are the most favored type for use in the construction of relatively short span distribution schemes and are in common use on lines for voltage up to 60 kV.
    Another frequent application for all aluminum conductors is in flexible busbar connections.
    Althou aluminum to copper connections can be made,it is better to use aluminum conductor for service connections,as varous forms of covered cable being available for this purpose.
    The data sheets show the most common sizes of conductors but other sizes,to any recognized standards or customer specification can also be supplied.
    AAC insulated with xlpe or pvc can be supplied as per the customers' requirement.
   Bare Conductor AAC All Aluminum Conductor AAC to DIN 48201

Size	Calculated area	Stranding and wire diameter	Overall diameter	Linear mass	Rated strength	Max. DC resistance at 20ºC
mm 2	mm 2	mm	mm	kg/km	daN	Ω/km
16	15.89	7/1.70	5.1	44	290	1.8018
25	24.25	7/2.10	6.3	67	425	1.1808
35	34.36	7/2.50	7.5	94	585	0.8332
50	49.48	7/3.00	9.0	135	810	0.5786
50	48.36	19/1.80	9.0	133	860	0.5950
70	65.82	19/2.10	10.5	181	1150	0.4371
95	93.27	19/2.50	12.5	256	1595	0.3084
120	117.00	19/2.80	14.0	322	1910	0.2469
150	147.10	37/2.25	15.2	406	2570	0.1960
185	181.60	37/2.50	17.5	501	3105	0.1587
240	242.54	61/2.25	20.2	670	4015	0.1191
300	299.43	61/2.50	22.5	827	4850	0.09650
400	400.14	61/2.89	26.0	1105	6190	0.07221
500	499.83	61/3.23	29.1	1381	7600	0.05781
625	626.20	91/2.96	32.6	1733	9690	0.04625
800	802.10	91/3.35	36.8	2219	12055	0.03611
1000	999.71	91/3.74	41.1	2766	14845	0.02897

ACSR=Aluminum conductor steel reinforced
    Construction:
         The mixed construction of ACSR makes it a very flexible medium from a design point of view.By varying the relative proportions of aluminum and steel the ideal conductor for any particular application can be produced.
    Protection against corrosion
         A coating of non-oxidizing grease is normally applied to the steel cores of all conductors,in addition to the protection offered by the galvanizing of the steel wires.One or more layers of the aluminum wires can if required,be supplied partiallly or fully greased.

Specifications
Aluminum conductor steel reinforced.
Biggest ACSR conductor supplier for China State Grid..
ACSR(Aluminum Conductor Steel Reinforced) is widely used in the overhead power distribution system of our country.
We can supply this conductor according to different recognized standards,such as IEC61089,BS215,ASTM B232,CSA C49,DIN48204,JIS C3110, customer special specification also can be satisfied.
The data sheets below show the most common standards,British standard.
British Sizes BS EN 50182:2001
STRANDARD:
BS 215 PART 2
code name: mole ,aquirrel ,gophel , weasel , fox , ferret , rabbit , minik , skunk , beaver , horse , racoon , otter , cat , hare , dog , coyote
ASTM B232
code name: turkey , swan , swanate , sparrow, robin , raven , quail , pigeon , penguin , waxwing , partridge , ostrich , merlin ,linner , oriole , chickadee , brant , ibis ,lark ,pelican , flicker , hawk ,hen ,osprey , parakeet , dove ,eagle ,peacock , squab , wood duck , teal , rook , grosbeak , swift ,scoter

Code Number	Stranding& Wire Diameter		Approx	Sectional Area			ApproxWeight	Breaking Load	DC Resistance
			Overall
	Al	Steel	Diameter	Al	Steel	Total
	mm	mm	mm	mm 2	mm 2	mm 2	Kg/km	KN	Ohm/km
16	6/1.84	1/1.84	5.53	16	2.67	18.7	64.6	6.08	1.7934
25	6/2.30	1/2.30	6.91	25	4.17	29.2	100.9	9.13	1.1478
100	6/4.61	1/4.61	13.8	100	16.7	117	403.8	34.33	0.2869
125	18/2.97	1/2.97	14.9	125	6.94	132	397.9	29.17	0.2304
160	18/3.36	1/3.36	16.8	160	8.89	169	509.3	36.18	0.18
250	22/3.80	7/2.11	21.6	250	24.6	275	880.6	68.72	0.1154
400	54/3.07	7/3.07	27.6	400	51.9	452	1510.3	123.04	0.0723
450	54/3.26	7/3.26	29.3	450	58.3	508	1699.1	138.42	0.0643
500	54/3.43	7/3.43	30.9	500	64.8	565	1887.9	153.8	0.0578
560	54/3.63	19/2.18	32.7	560	70.9	631	2103.4	172.59	0.0516
630	54/3.85	19/2.31	34.7	630	79.8	710	2366.3	191.77	0.0459
710	54/4.09	19/2.45	36.8	710	89.9	800	2666.8	216.12	0.0407
800	72/3.76	7/2.51	37.6	800	34.6	835	2480.2	167.41	0.0361
900	72/3.99	7/2.66	39.9	900	39.9	939	2790.2	188.33	0.0321

AAAC-All aluminum alloy conductors
    This section deals with heat-treatable magnesium silicon type aluminum alloys to BS EN 50182,the electrical and mechanical properties of which all fall within the values suggested by Publication 104 of the international Electro technical Commission.Conductors to all other recognized specifications can also be supplied.
    The alloys referred to have higher strength but lower conductivity than pure aluminum.Being lighter,alloy conductors can sometimes be used to advantage in place of the more conventional ACSR;having lower breaking loads than the latter,their use becomes particularly favorable when ice and win loadings are low.

Size	Calculated area	Stranding and wire diameter	Overall diameter	Linear mass	Rated strength	Max. DC resistance at 20ºC
mm 2	mm 2	mm	mm	kg/km	daN	Ω/km
16	15.89	7/1.70	5.1	44	290	1.8018
25	24.25	7/2.10	6.3	67	425	1.1808
35	34.36	7/2.50	7.5	94	585	0.8332
50	49.48	7/3.00	9.0	135	810	0.5786
50	48.36	19/1.80	9.0	133	860	0.5950
70	65.82	19/2.10	10.5	181	1150	0.4371
95	93.27	19/2.50	12.5	256	1595	0.3084
120	117.00	19/2.80	14.0	322	1910	0.2469
150	147.10	37/2.25	15.2	406	2570	0.1960
185	181.60	37/2.50	17.5	501	3105	0.1587
240	242.54	61/2.25	20.2	670	4015	0.1191
300	299.43	61/2.50	22.5	827	4850	0.09650
400	400.14	61/2.89	26.0	1105	6190	0.07221
500	499.83	61/3.23	29.1	1381	7600	0.05781
625	626.20	91/2.96	32.6	1733	9690	0.04625
800	802.10	91/3.35	36.8	2219	12055	0.03611
1000	999.71	91/3.74	41.1	2766	14845	0.02897
