Product Specifications
| Prod Model: |
XK3110-G1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

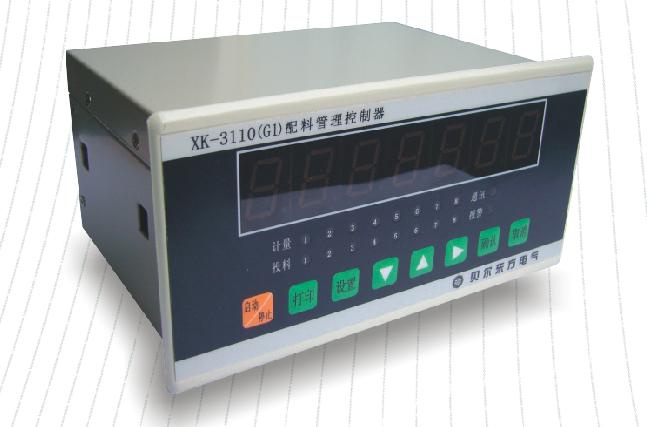

XK3110-G1 is management controller which can automatic control concrete production, it applies to mixing plant of different structure and productive. XK3110-G1 controls multi-scale automatically measuring and mixing, it prints production statistics in real-time and also prints historical production reports.
Product parameter
Brand: Oriental Nobel
Model: XK3110-G1
Structure: Embedded
Display: Digital
Dimention: 200mm(w)*100mm(h)*148mm(d)
Opening size: 188mm(w)*90mm(h)
Technical specification
Power: AC220V± 15%, 50Hz;
Power consumption: 9W;
DI: 8, optical isolation, internal power source;
On-off output: : 8, optical isolation, relay output, direct drive contactor without intermediate relay;
Communication mode: Serial EIA-RS485 standard;
Print interface: Serial and parrel port, microprinter and line printer both available.
Luoyang Oriental Nobel Electric Co., Ltd. was founded in 2004, and obtained China Metrology Certification in 2006. Luoyang Oriental Nobel Electric Co., Ltd. is a high-tech enterprise which is specialized in batch weighing instrument, batch weighing controller, industrial automatic control system designing and manufacturing.
We manufacture and supply standard products, such as XK3110 weighting indicator controller (series A, B^manage instruments of series G), ampere-voltage digital meter with RS232 communication, transmitter, sensor, junction box, level detector, PLD2008 series of automatic batch weighing control system etc.
We also offer customer specific weighing solutions, and complete sets of automatic control engineering.
