Product Specifications
| Markets: |
Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Size: |
1000mm*H1200mm |
| Film Can Be Coated: |
Tin and Tic, Zrn, Crn, Ticn, Tialn, Dlc |
| Occupy Space: |
3mm*3mm |
| Certificated: |
ISO9001: 2008 |
| Busniess Type: |
Manufacturer |
| Condition: |
New |
| Automatic Grade: |
Manual/Automatic Integration Mode, PLC or Computer |
| Packing Material: |
Wooden Case |
Product Description
1 Characteristics:
Anode layer ion source adopts the international advanced level and plane rectangular arc source adopts domestic leading level
Multi-channel feedback control system: The arc source control, pneumatic control, process control
Acquisition process archiving, alarm data, facilitate data collection and equipment maintenance
Unique octahedral chamber design, both to improve device utilization of space and easy to maintain and repair.
Can be coated superhard coatings: TiN and TiC, ZrN, CrN, TiCN, TiAlN, DLC, etc.
2 Field of use:
Tools, thermal mug, watch case, watch belt, cutting tools, drill bits, mills, high-grade mold, precision parts and electronics industry)
3 Main Technology Parameter
|

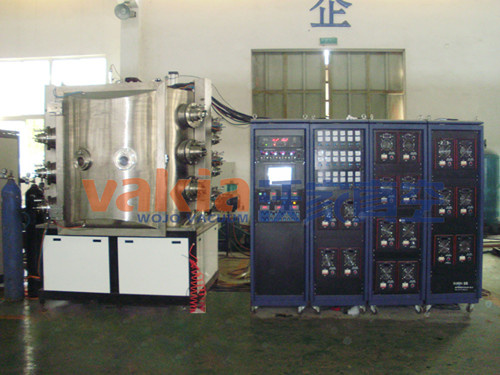

Model and Main Technical Parameters of Vakia-DAC Series Vacuum Multiple -Arc Ion Coating Machine |
|
Performance/Model |
Vakia-DAC-700 |
Vakia-DAC-900 |
Vakia-DAC-1000 |
Vakia-DAC-1250 |
Vakia-DAC-1400 |
Vakia-DAC-1600 |
|
Size of coating chamber |
700*H900mm |
900*H1100mm |
1000*H1200mm |
1250*H1350mm |
1400*H1600mm |
1600*H1800mm |
|
Power supply type |
Arc power supply, filament power supply, pulse bias power supply |
|
Structure of vacuum chamber |
Vertical front door structure, rear air exhaust system and double-layer water cooling chamber |
|
Material of vacuum chamber |
superior stainless steel vacuum chamber |
|
Limit vacuum |
6.0*10 -4 Pa(unload, clean vessel) |
|
Extraction time |
from atmosphere to 8.0*10 -3 Pa ≤ 15 minutes |
|
Vacuum acquisition system |
Diffusion pump or molecular pump + Roots pump + Mechanical pump + Holding pump (the specific model can be selected according to customer requirements) |
|
Arc source |
4 units or
6 units |
6 units or
8 units |
8 units or
10 units |
10 units or
12 units |
14 units or
16 units |
16 units or
18 units |
|
Bias power supply |
10KW/set |
20KW/set |
20KW/set |
30KW/set |
40KW/set |
50KW/set |
|
Rotating mode of workpiece turntable |
Planetary revolution and rotation, variable frequency speed regulation (controllable and adjustable) |
|
Workpiece baking temperature |
Controllable and adjustable from room temperature to 450° C (PID temperature control) |
|
Process gas |
3-path or 4-path process gas flow control and display system, selective automatic gassing system |
|
Cooling mode |
Water circulation cooling mode, cooling water tower or industrial water cooler or deep cooling system. (Provided by customers) |
|
Control mode |
Manual/automatic integration mode, touch screen operation, PLC or computer control |
|
Total power |
25KW |
30KW |
35KW |
45KW |
60KW |
75KW |
|
Alarm and protection |
Alarm water shortage, overcurrent and overvoltage, open circuit and other abnormal conditions of pumps, targets and so on and execute relevant protective measures and electric interlock function |
|
Equipment area |
W2m*L3m |
W2.5m*L3.5m |
W3m*L4m |
W4m*L5m |
W4.5m*L6m |
W5m*L7m |
|
Other technical parameters |
Water Pressure ≥ 0.2MPa, Water Temperature ≤ 25° C, Air Pressure 0.5-0.8MPa |
|
Remarks |
The specific configuration of coating equipment can be designed according to process requirements of coating products |
Shanghai Vakia Coating Technology Co., Ltd is the subsidiary of Shanghai Guangsu Machinery group company, established in 1992, located in Shanghai Songjiang sci-tech park, covers an area of 238 acres. The group company is composed by Guangsu injection machine, vakia vacuum, Songde cutting tool and active fountain pump valve. Group company always keep the operation philosophy of "quality product, star service", and well-known in the industry for its superior quality, high-efficient and energy saving.
Group company will follow the policy of "sci-tech oriented, management Innovation, quality first, customer first ", continue to increase new product Development dynamics, emphasis is develop a series of new products with the leading domestic level and catch up with the world's advanced level, Let it become a economic growth new luminescent spot of our company.
Meanwhile, our company brings out a series of new measures in terms of Management and quality control, strengthen the cooperation with scientific Research institute both at home and abroad and famous enterprises, meticulously build brand effect to improve the degree of customer satisfaction.
Shanghai Vakia Coating Technology Co., Ltd is a leading vacuum coating engineering integrated provider in China. We create maximum value for customers through our close dedication to customer-centric innovation. We have set up strong business relations with global partners, and established technological and service advantages in advanced energy and materials\architecture/automobile\precision manufacture\heavy industry/military project and so on. We committed to providing competitive comprehensive solutions and services for enterprises\science research institutes and coating centers.
The products we manufacture are as follows: Inline magnetron sputtering coating system\rectangle arc tooling coating machines\multi-arc combination with multi-functional medium frequency magnetron sputtering vacuum coater\medium frequency magnetron sputtering coating machines\multi-arc ion coating machines\optical thin-films coating machines and evaporation coating machine etc.
These products are widely used in solar energy\semiconductor\Low-E glass\photoelectricity\flat panel display\tools and cutters\watches\hardware\3C\plastic\ceramic etc. Our company have perfect R&D and manufacture system\customer service system. There are many domestic and foreign experts working with us. Our products and craft have been deployed all over the world.
At present, our products and craft have been deployed all over the world. We dedicated to the green solutions and recombine resources inside and outside of the company, increase the investment in R&D, launch new technologies and products continuously to cater to the demand of domestic and foreign market, contributing to the sustainable development of society\economy and environment.
