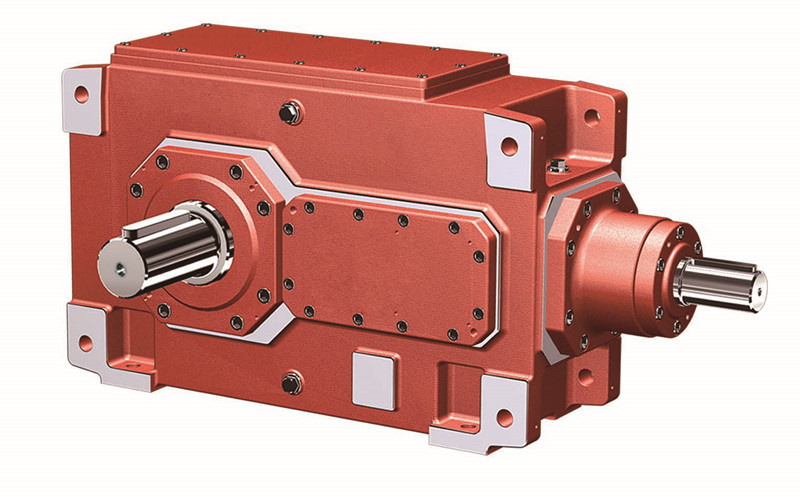

BC Series gearbox product features:
1. BC series gearbox is a right angle shaft heavy load industrial gearbox designed as hard teethface helical gear. The period of designing and manufacturing are shorter because of the blocking design.
2. The feature is compact construction, steady running. It can bear huge road of industry, insteaded of early international standard gearbox.
3. The material of gears is 20CrMnTi alloy steel and the hardness can reach to HRC58°~ 62° .after tempering, cementiting, quenching etc. heat treatment. All the gears are processed by accurate grinding and the precision can reach to grade 6~5.
4. The products have been mainly used in heavy industrial fields, such as mine, petrochemical, electric power, metallurgy etc.
Type and specification:
Stage: 1~4 stage, Type size: 03~26
Main Parameter:
Ratio: 1.25~450
Output torque: 0.8~470kNm
Motor power: 2.8~4823KW
Installation Form: Horizontal, Vertical, Shaft installation and shrink disk installation
The weight of main unit:
Model | BC2-01 | BC2-02 | BC2-03 | BC2-04 | BC2-05 | BC2-06 | BC2-07 | BC2-08 | BC2-09 | BC2-10 |
| Weight(KG) | 65 | 90 | 140 | 235 | 360 | 410 | 615 | 700 | 1000 | 1156 |
| Model | BC2-11 | BC2-12 | BC2-13 | BC2-14 | BC2-15 | BC2-16 | BC2-17 | BC2-18 |
|
|
| Weight(KG) | 1640 | 1910 | 2365 | 2750 | 3795 | 4160 | 5320 | 5860 |
|
|
| Model | BC3-03 | BC3-04 | BC3-05 | BC3-06 | BC3-07 | BC3-08 | BC3-09 | BC3-10 | BC3-11 | BC3-12 |
| Weight(KG) | 130 | 210 | 325 | 380 | 550 | 635 | 890 | 1020 | 1455 | 1730 |
| Model | BC3-13 | BC3-14 | BC3-15 | BC3-16 | BC3-17 | BC3-18 | BC3-19 | BC3-20 | BC3-21 | BC3-22 |
| Weight(KG) | 2260 | 2615 | 3540 | 3765 | 4760 | 5240 | 6050 | 6710 | 8190 | 8950 |
| Model |
|
| BC4-05 | BC4-06 | BC4-07 | BC4-08 | BC4-09 | BC4-10 | BC4-11 | BC4-12 |
| Weight(KG) |
|
| 335 | 385 | 555 | 655 | 890 | 1025 | 1485 | 1750 |
| Model | BC4-13 | BC4-14 | BC4-15 | BC4-16 | BC4-17 | BC4-18 | BC4-19 | BC4-20 | BC4-21 | BC4-22 |
| Weight(KG) | 2280 | 2605 | 3435 | 3765 | 4460 | 4930 | 5400 | 6000 | 7350 | 7850 |
Shanghai YouHuan Transmission Machinery Co., Ltd is one of the leading manufacturers of speed reducer and gearbox for more than 20years in China. We are the senior member of Chinese Speed Reducer and Gearbox Industry Association which is specialized in the designing and manufacturing transmission and driving machinery products, such as different kinds of speed reducers.
Our factory was located in economic zone Wenzhou, Zhejiang province; Our sales office is in Shanghai. Since established in 1985, we have always insisted on science and technology innovation, researching and introducing advanced technology, as well as continuously developing new products to meet the market demands. Our main products are RC, SC, KC, FC, TC series helical gear motors, HC, BC series heavy load industrial gearboxes, worm reducers, WB series Cycloidal gear motors, X series Cycloidal gear motors, and, etc. Our products have been widely used in kinds of industrial equipments, such as chemical machinery, cement agitator machinery, printing and packaging machinery, metallurgy, petrochemical machinery, mine and construction machinery, ceramic machinery, cranes, foods, beverage, pharmaceutical, leather, conveyer, rubber, plastic and so on. Our company has advanced CNC gear grinding machine, machining center and gear inspection center, . Testing and machining equipment.
Our products are well accepted in Chinese market and have been exported to America, South America, Africa, Southeast Asia, and Middle East countries etc.
Youhuan will always insist on high quality and good service in the future.
We look forward to establishing business relation with companies all over the world! Welcome to send us inquiry!
