Product Specifications
| Prod Model: |
TR-200W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control Protocol: DMX512,Automatic And M: |
Prism: Rotating 8-Facet Prism |
| Voltage: |
240V |
| Emitting Color: |
Changeable |
| IP Rating: |
IP20 |
| Strobe: |
Adjustable Speed Strobe |
| Control Mode: |
Dmx Signal Control |
| Certification: |
CE |
| Control Channel: |
16CH |
| Light Source: |
Halogen |
| Material: |
Iron |
Product Description

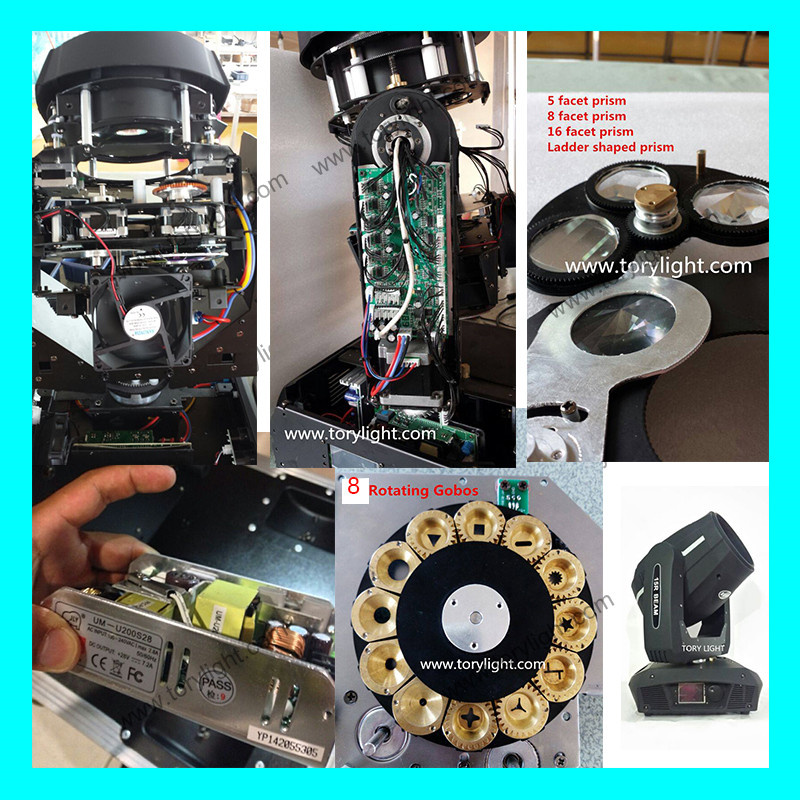

200W 5R Sharpy Beam Moving Head Light
Lamp Source
3 type for option: Yodn MSD200W R5
Philips UHP 189W Lamp
Philips 189W MSD Platinum 5R Lamp
Color temperature: 8,500K
Acerage Life: 2,000Hrs
Electrical
Input Voltage: AC90-240V 50/60HZ
Power Consumption: 250W
Control
Display: LCD display /Touch screen selectable, can be turned 180°&record the using time
Control Protocol: DMX512,automatic and master/slave mode
Channel: 16/20CH
Optical System
YL(YiLong) 3in1 optical group combination
Dimming: 0-100% linear adjustment
Strobe: heat-proof plastic+module pressing alloy materials
Focus: ELectronic
Prism: Rotating 8-facet prism
Frost filter
Beam angle:0-3.8 degree
Movement
Pan:540°
TilL:270°
Pan/Tilt Resolution: 16bit
Gobos&Colors
Rotating Gobos: 1 gobos wheel with 17 fixed gobos+open
Colors: 1 color wheel with 14 fixed colors+open
Physical
Housing: Flame-retardant plastic
Housing Color: Black or White selectable
Fixture Connection: 3-Pin DMX in&out, power in
Cooling: Quiet cooling fan and aluminum radiator
Certificate&Satety
Certificate: CE
Working environment: Indoor
Operation temp:-20~40ºC
