Product Specifications
| Prod Model: |
LCDL10B-18W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Western Europe |
| Light Source: |
LED |
| Installation: |
Exposed Type |
| Material: |
Aluminum |
| Application: |
Engineering |

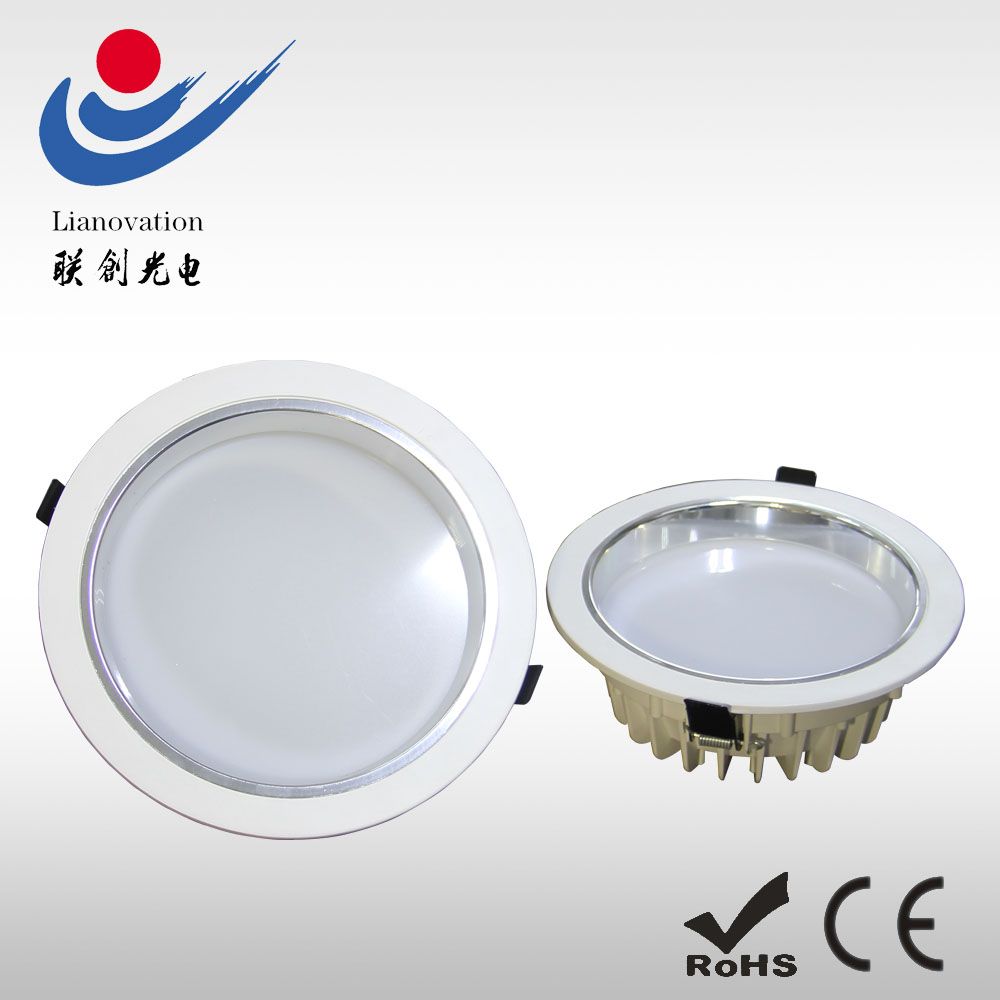

Product Description
Using high quality PC frosted cover, high bright extracting rate, and the light is soft and even.
Using high quality aluminum alloy, excellent structure design, and good heat dissipation effect.
It is appearance concise and no glare.
The product specification is complete, can be used for different space.
It's shockproof and not easy to break.
|
Model No. |
Dimension(mm) |
Material |
Power |
Luminous Efficiency(lm/W) |
Variable parameter |
|
LCDL13-03W |
φ 91× φ 97× H23 |
AL+PC |
3W |
80-110 |
Power: 3-18W
Color Temperature: 2800-7500k
Color Rendering Index(Ra): 70-80
Input Voltage: AC85-135V
AC185-265V, AC86-265V
Light source: SMD, COB
Power: constant current
Beam angle(dcg): 140
Appearance: Ultra-thin, thick, die-casting. |
|
LCDL14-07W |
φ 125× φ 149× H23 |
AL+PC |
7W |
80-110 |
|
LCDL15-10W |
φ 151× φ 173× H28 |
AL+PC |
10W |
80-110 |
|
LCDL16-12W |
φ 168× φ 186× H25 |
AL+PC |
12W |
80-110 |
|
LCDL18-15W |
φ 211× φ 238× H25 |
AL+PC |
15W |
80-110 |
|
LCDL110-18W |
φ 245× φ 265× H26 |
AL +PC |
18W |
80-110 |
