Product Specifications
| Prod Model: |
YZD-5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automation: |
Automatic |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
| Application: |
Machinery & Hardware |
| Type For Cutting Machine: |
Sheet Folding Machine |
| Type: |
Folding Machine |
Product Description

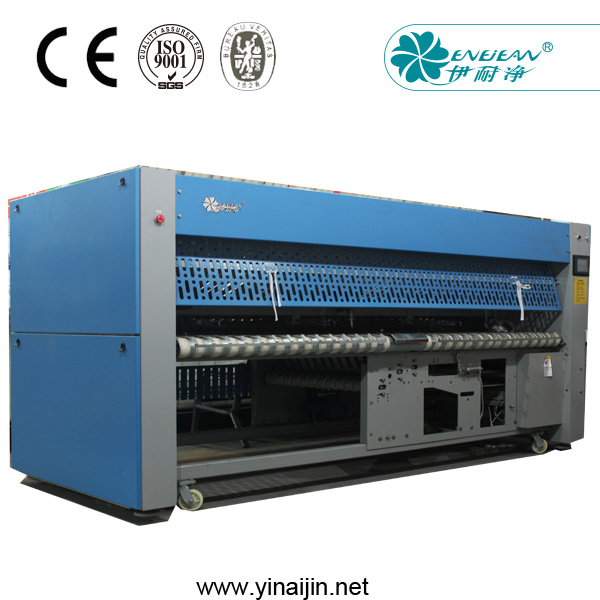

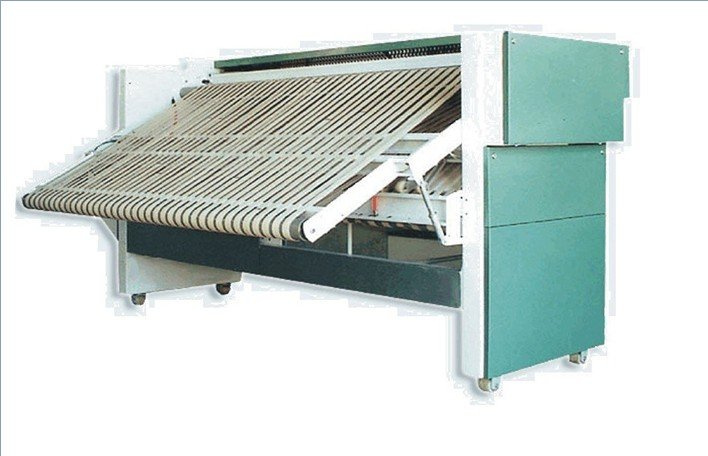

Folding machine /flatwork folder
ZD-ZD-3000V automatic folder Units suitable for large, medium and small guesthouses, hotels, hospitals, equipment specially developed based on user´s need .It has two vertical and three horizontal fold function, and great fold range is 3000 x 3000mm .It is suitable for launderette of hotel, hospitals, schools, army, laundry etc and it is the idea folding equipment.
Transmission system with a fabric speed control and precise positioning can accurately determine length of the fabric and calculate the fold length.Have high accuracy of fold '
Two independent drive motor controlled by VFD, having the function of adjusting steeples folding speed within 50m/min and can match all types of ironing machines.
Highly intelligent LCD touches screen operating system.Dynamically display working condition of the machine .User can compose procedures according to their needs.
With standardize differentiate protection and alarm of fold, ensuring high-quality folding effect.
Complete self-diagnosis function and safety protection system facilitate the daily
Use and maintenance of the machine.Folding machine /flatwork folder show
Packging and shipping

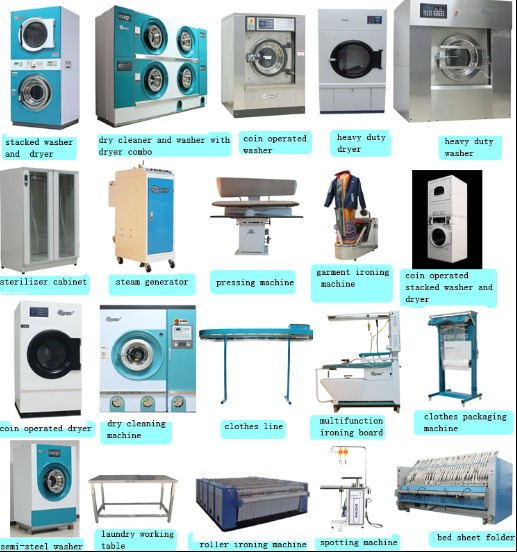

Related products
Guangzhou ENEJEAN Washing Equitment Manufactory CO.,Ltd is one of high-tech enterprises which including the development , production and sale of dry cleaning equipment , washing equipment , laundry equipment , shoes washing and repairing equipment and so on .We have our own factory and enjoy a good reputation in commercial washing machine line .If any of our products be of interest you , please feel free to let us know and contact us.
Contact us
Hot line:4006786277
Tel:02036548602
Mobile phone:+8613622217847
|
model |
ZD-3000V |
|
Model/Parameter |
3000×3000 |
|
× Max folding L ×W(mm) |
5 |
|
Max number of folds |
10-50 |
|
Folding speed (m/min) |
0.7 |
|
Compressed air pressure(MPA) |
0.2 |
|
compressed air(m³//min) |
1.3 |
|
Appearance (W×D×H) |
|
W(mm) |
4150 |
|
D(mm) |
2850 |
|
H(mm) |
1760 |
|
Weight(kg) |
1600 |
