Shanghai DHH Screw Compressor Co., Ltd. >> Belt Screw Compressor (1.3MPA, 1.0 MPA, 0.8MPA)

Belt Screw Compressor (1.3MPA, 1.0 MPA, 0.8MPA)

Name: Belt Screw Compressor (1.3MPA, 1.0 MPA, 0.8MPA)
Brand: china-manufacturer-directory.com
SKU: 679598905
Availability: InStock
Rating: 4.7 (98 reviews)

Supplier:	Shanghai DHH Screw Compressor Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Markets:	North America,South America,Southeast Asia,Africa,Mid East,Western Europe
Configuration:	Stationary
Power Source:	AC Power
Type:	Screw

Product Description

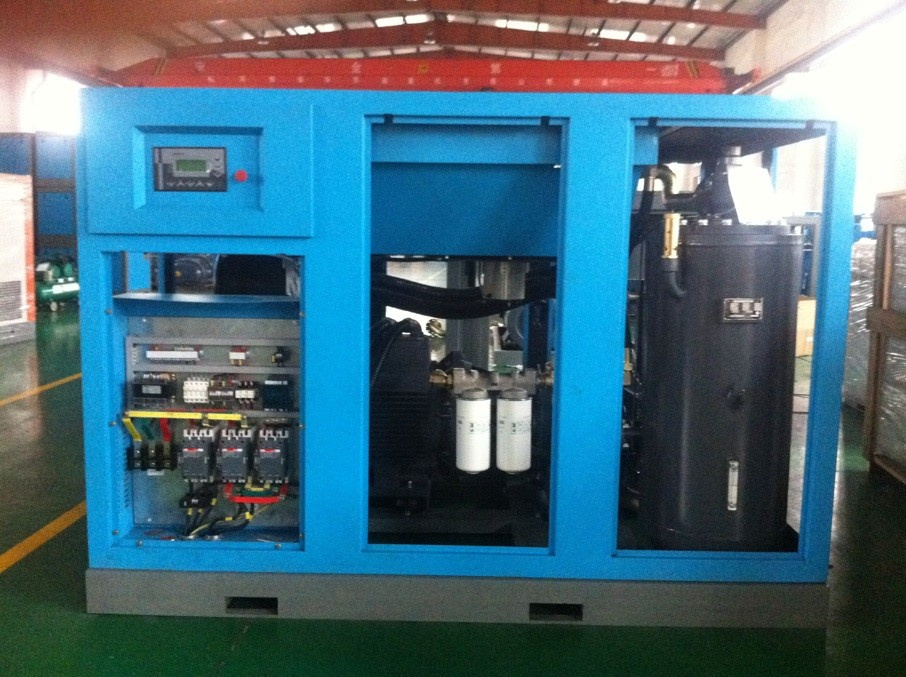

Belt driven screw air compressor 1.3MPa, 0.63m3/min,
1. Reliable quality, competitive price
2. German Air end
3. Perfect service network
4. Easy to install, operate and maintain.
5. Low noise, Low energy consumption, Low running, Low maintenance cost.
6. Aptitude and intelligent Control, PLC control, LCD displayer.

DHH	Air flow Capacity(m 3 /min)/cfm									Power			Noise			Outlet Diameter			Dimension	Weight
MODEL	0.7Mpa			0.8Mpa		1.0Mpa		1.3Mpa			KW	HP		dB(A)			INCH		W× D× H mm	Kg
	m 3 /min	cfm		m 3 /min	cfm	m 3 /min	cfm	m 3 /min	cfm
DB-7.5A	0.91		32.1	0.84	29.6	0.75	26.5	0.63	22.2		5.5	7.5			65			G3/4”	780× 680× 800	300
DB-10A	1.3		45.9	1.2	42.4	1.0	35.3	0.84	29.6		7.5	10			65			G3/4”	780× 680× 800	320
DB-15A	1.7		60	1.6	56.5	1.4	49.4	1.2	42.4		11	15			65			G3/4”	1100× 800× 980	400
DB-20A	2.4		84.8	2.3	81.2	2.0	70.6	1.6	56.5		15	20			68			G3/4”	1100× 800× 980	430
DB-25A	3.0		105.9	2.9	102.4	2.7	95.3	2.3	81.2		18.5	25			68			G1”	1250× 870× 1180	590
DB-30A	3.7		130.7	3.6	127.1	3.2	113	2.8	98.9		22	30			68			G1”	1250× 870× 1180	650
DB-40A	5.2		183.6	5.0	176.6	4.5	158.9	3.8	134.2		30	40			69			G1”	1250× 870× 1180	750
DB-50A	6.5		229.5	6.2	219	5.6	197.8	4.9	173		37	50			69			G1 1/2”	1540× 950× 1290	880
DB-60A	8.0		282.5	7.3	257.8	7.0	247.2	5.9	208.4		45	60			70			G1 1/2”	1540× 950× 1290	1000
DB-75A/W	10.1		356.7	9.5	335.5	8.7	307.2	7.8	275.5		55	75			70			G2”	1600× 1150× 1420	1500

Shanghai DHH Screw Compressor Co., Ltd is high-tech enterprise, which specialized in the R&D and production and exporting of air compressor system equipment over 15 years experience.

---ISO 9001 and CE TUV certified
---Global competitive price and guaranty
---High quality integrated with Germany technology
---Customers over 20 countries in the world
---Supply OEM (customer's logo) for distributors

DHH always make superior quality screw air compressor because of adopting Germany advanced production technology and European famous brands machine parts for compressors.

Shanghai DHH screw compressor Co., Ltd has an experienced expert team, not only provide users with high-quality and high-efficiency compressed air system equipment, but also provide users with optimum air system solutions during before-sale, sale and after-sale services.

Our products are available in 40 countires covering Europe, America, Australia, Asia, Africa, Middle-East, and in countries such as USA, Canada, France, U. K., Germany, Italy, Spain, Poland, Russia, Ukraine, Australia, U. A. E, Saudi Arabia, Egypt, Thailand, Vietnam, Malaysia, Indonesia, India, Iran, South Africa, Colombia, Mexico, Argentina, Brasil, Chile, etc.

More information about us and our products, please visit our website.
