1 Product overview
1.1 Overview

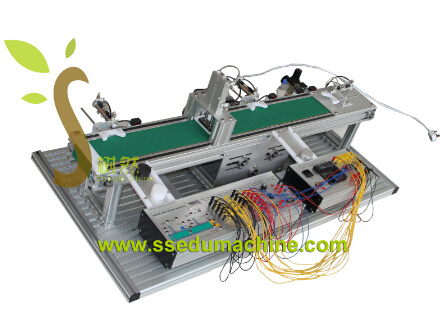

Conveyor control system is a training system which can meet practical field , it can sufficient simulate industrial field automatic production line. This system combined with realistic conveyor system production line, it can make the student improve the understanding of automatic conveyor production system. System mainly be made up of air cylinder, solenoid valve, sensor, motor and programmable logic controller, etc. It is based on a draper-type conveyor, install sensor on different positions for checking the convey objective on the belt. According to input the signal of sensor to programmable logic controller, make the PLC output signal control solenoid valve and cylinder according to requirement, it can realize the sort and count for objective on belt.
This training equipment is consisted of various kinds industrial sensor, pneumatic control unit, electrical switch, PLC programmable logic controller, etc. It make up a mechanotronics mechanical-electrical integration equipment mechanical platform which including loading unit, convey unit, detection module, classified storage and other working area. According to related experiment, student can understand the pneumatic system actuator operation characteristic, understand the connection method of industrial sensor and PLC, master the
PLC programming technique, etc, it can cultivate student corresponding knowledge and technical ability, it can suitable the teaching and technical ability training examine of related specialties of higher vocational college, college and secondary vocational schools, etc.
