Changsha Aube Didactic Equipment Co., Ltd. >> Bench Type Digital Multimeter (LCD-8045)

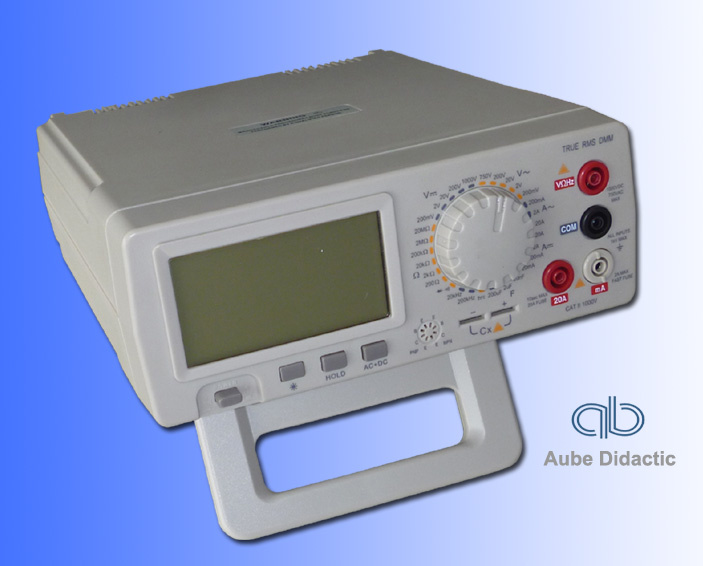

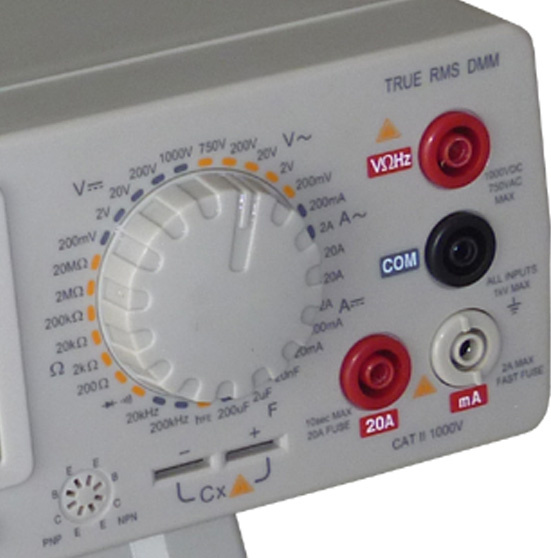

Bench Type Digital Multimeter (LCD-8045)

Name: Bench Type Digital Multimeter (LCD-8045)
Brand: China-Manufacturer-Directory.com
SKU: 742589055
Availability: InStock
Rating: 4.5 (138 reviews)

Supplier:	Changsha Aube Didactic Equipment Co., Ltd.
Price:	Negotiable/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	LCD-8045
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Screen:	4 1/2 Digit Large LCD Display with Backlight
Max. Display:	19999
DC Voltage:	200mv/2V/20V/200V/1000V
AC Voltage:	200mv/2V/20V/200V/750V
Resistance:	200/2k/20k/200k/2m/20m Ohms
Meter Size:	245×220×82mm
Display Mode:	Digital
Power Source:	AC and DC
Theory:	Electronic Meter
Installation:	Desktop

Product Description

Features:
1. 4 1/2 digit large LCD display with backlight;
2.With the DCV,ACV,DCA,ACA,Ω,CAP,Hz,hFE,diode and continuity test function;
3.Max. voltage measuring: DC 1000Vor AC value, resolution:10uV;
4.Max. current measuring: 20A,polarity automatic switch,data hold,backlight
5.AC measuring adopt high accuracy true RMS, with bandwidth and AC+DC measuring,

Basic function	Range			Basic accuracy
DCV	200mV/2V/20V/200V/1000V			+- (0.05%+3)
ACV	200mV/2V/20V/200V/750V			+- (0.8%+80)
DCA	20mA/200mA/2A/20A			+- (0.35%+10)
ACA	200mA/2A/20A			+- (0.8%+80)
Resistance	200/2k/20k/200k/2M/20M ohms			+- (0.1%+5)
Frequency	20kHz/200kHz			+- (1.0%+20)
Capacitance	20nF/2uF/200uF			+- (3.5%+20)
Special function		LCD-8045
Diode test		Yes
hFE test		Yes
True RMS		Yes
Continuity alarm		Yes
Overload protect		Yes
Input protect		10M ohms
Sampling rate		3times/s
AC Frequency response		40Hz-50kHz
Operation way		Manual range
Max. display		19999
Power		AC 220V/110V 50Hz/60Hz
General characteristic
Weight			1.4kg
Meter size			245×220×82mm
Standard accessory			Test leads,power cord,manual
Packing			Gift box
Standard quantity per CTN			8pcs
Carton size			58.5×31×64cm
Standard G.W. per CTN			16kg
