Product Specifications
| Prod Model: |
T200N+ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Heating Supply: |
IR + Hot Air Convection |
| Effective Working Table Area: |
270mm * 230mm |
| Dimension: |
700* 460*310mm |
| Weight: |
45 Kg |
| Online Temperature Test: |
Yes |
| Video Link 1: |
Https://Yadi.Sk/I/J8gghy0icmrxq |
| Video Link 2: |
Https://Yadi.Sk/I/Rmdgqpk3cn8ef |
| Video Link3: |
Https://Yadi.Sk/I/Qeoaub_6cn8gf |
| Current: |
Alternating Current |
| Type: |
PCB Solder |
| Application: |
PCB |
| Model: |
T200n+ |
Product Description

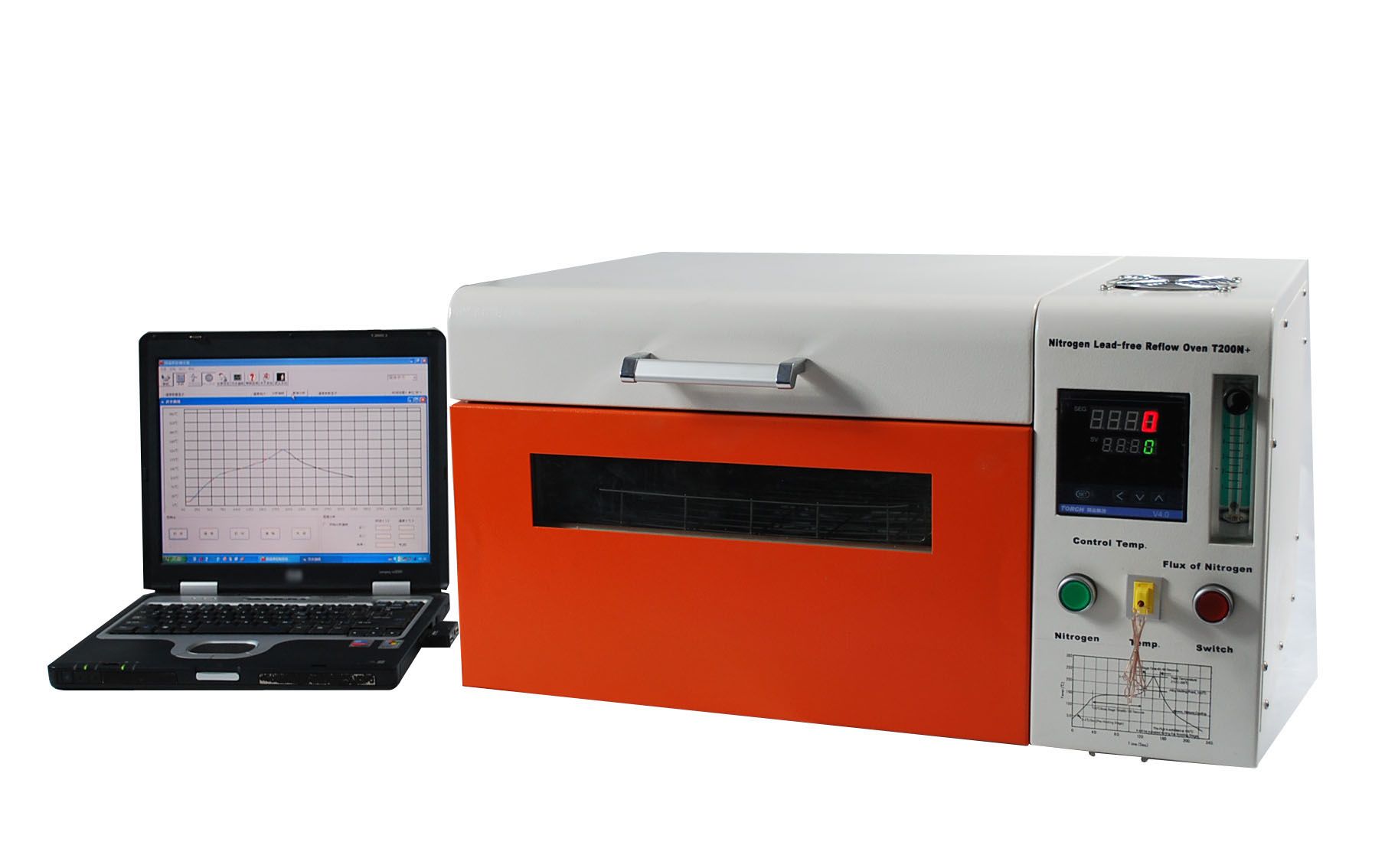

T200N+=nitrogen lead free reflow oven T200N+temperature tester
T200N+ is not only with lead free welding function, but also with temperature measurement function.
Adjusting temperature curve constantly in order to get better welding in SMT field. Adjusted temperature is very important which is testing temperature by temperature tester. Temperature tester is used to measure temperature, process improvement and data analysis. In addition it can save data. This machine can meet requirements of ISO9001 system greater.
High reliability; Measure actual temperature in real time for pad; Draw temperature chart randomly; The format of temperature report is nice; High cost performance.
T200N+ introduce
T200A is manufactured by Torch in 2001, which is the first desk lead free reflow oven.
As an epoch-making product, T200C break instrument controlling market in 2005.
T200N is the first nitrogen reflow oven in domestic in 2006. It entered the Texas instrument of United States, University of Texas in United States, Status PRO Corporation in Germany, LOGICOM company in Singapore, Flextronics Technology (Shanghai), Datang Microelectronics Technology Co., Ltd, Tianjin University, Shanghai Jiao Tong University, Beijing University of Technology, Zhenhua semiconductor companies and other well-known research laboratories and factories. And other well-known enterprises and laboratories.
Torch develops and manufactures new products T200N+ according to requirement and need from domestic and foreign market. T200N+ is suitable to small batch products, it is the good choice for electronics enterprises and research institutes, at the same time it is the complementary equipment for large and medium-sized production line.
T200N+ unique features
With all advance of T200N
With single channel temperature measurement (multi channels is optical), T200N+ has been the first-class reflow oven. It make up market blank.
With heater installation technology which is patent in desk reflow oven, the temperature is more uniformity which is less than 10 degree c, it is the highest standard.
With air cycle and vent technology which is patent in desk reflow oven, it improve temperature uniformity and air cycle effect.
With door drive device which is patent in desk reflow oven to make sure worktable stable when PCB is out, and at the same time it can make chips don't move.
With save nitrogen technology. When door is open, nitrogen will close automatically, when door is close, nitrogen will open automatically. It can save nitrogen and reduce cost effectively.
With vent smoke function. It is convenient to emitting exhaust gas.
With purifying and filtering exhaust gas function
With automatic door device. When finishing welding, door will open. With airproof technology, it can improve heat preservation effect and save nitrogen.
|
T200N+ technology parameters |
|
Temperature control segment |
40 segments
The segment can be set in computer according to the actual requirement. |
|
Temperature-zone numbers |
Single-zone and multi-segment |
|
Temperature control system |
PC control system, SSR non-contact output |
|
Temperature accuracy |
± 2ºC |
|
Warm-up time |
3min |
|
Temperature range |
Room-temperature -360ºC |
|
Heating supply |
Infrared ray + Hot air convection |
|
Effective working table area |
270mm * 230mm |
|
Welding time |
3min ± 1min |
|
Temperature curve |
It can be set, adjusted and tested according to the actual requirement . |
|
Cooling system |
Transverse flow equal cooling |
|
Rated voltage |
3.8 KW Mean power:1.6kw |
|
Weight |
45 kg |
|
Dimension |
Length*width*height 700* 460*310mm |
Beijing Torch Co., Ltd. Found in 2001, has strong force on R&D and manufacture of SMT and PCB equipments and Semiconductor production line.
Torch has unique understanding of SMT technology for long-term providing professional services to domestic and foreign electronic company. It always lead SMT equipment technologies and trends in domestic market.
To meet the require of electronic environment protection in international market, we produce a series of lead free Reflow Oven, Wave Soldering from mini-type to large size type.
At present, we cooperates with Germany Termway Co. Ltd, produce a series of automatic high-speed mounter. Our product features as good quality, competitive price, easy to operate and energy saving. They enjoy great welcome in domestic and oversea market.
A lot of our products got the patents and our company passed ISO9001 and IQNET, CE certificates and we are SGS Audited Supplier.
Since found, we gained a good reputation and remarkable achievement from our customers, like Spaceflight, Aviation, Arms Force, Information industry, College, Scientific Research and so on. You can see our products from the producing line of fire alarm, instruments, computer display, telephone appliance. At present, our products are already sold in many countries such as USA, Brails, India, Japan, Australia, Mexico and Southeast Asian area. We will continue to make great efforts to satisfy the customers' requirement.
