Product Specifications
| Prod Model: |
MV-1510 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Benchtop Non-Contact Video Measuring Instruments |
| Model: |
Mv-1510 |
| Travel-X. Y Axis: |
150*100(Mm) |
| Travel-Z Axis: |
200mm |
| Resolution: |
0.05µ M |
| X, Y-Axis Accuracy: |
± (2.5+L/150)µ M |
| Repeatability: |
0.003mm |
| Stage Size: |
354*228 |
| Stage Load Capacity: |
10kg |
| Dimension L*W*H: |
540*560*850 |
Product Description

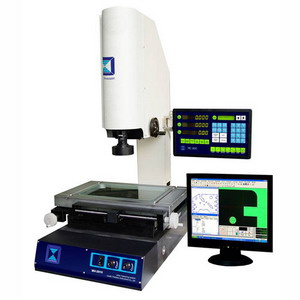

Benchtop Non-Contact Video Measuring Instruments For Precision Metal (MV-1510)
Application:
Benchtop Non-Contact Video Measuring Instruments (MV-1510) is widely used in the measuring machinery, electronics, mold, injection molding, metal, rubber, low voltage electrical, magnetic materials, precision metal, precision stamping, connectors, connectors, terminals, mobile phones, home appliances, computers (PCs), LCD TV (LCD), a printed circuit board (circuit board, PCB), automotive, medical equipment, clocks, screws, springs, instruments, gears, cams, threads, radii template, template thread, wire and cable, tools, bearings, screen, test sieve, sieve cement, net plate (steel mesh, SMT template), and other
Feature:
1. Solid granite frame guarantees strength, accuracy and stability
2. Precision stages are available
3. Higher resolution linear encoder 0.5µ M
4. Superb full-color high resolution image with zoom optics
5. Sighting device: Cross-hair generator
6. Connection: RS232 or USB output and metrology software
7. High resolution S-video color CCD camera
8. New MC800 geometric DRO
9. One-click edge detection.
Specification:
| Model No. | MV-1510 | MV-2010 | MV-3020 | MV-4030 |
| Travel-X. Y axis | 150*100(mm) | 200*100(mm) | 300*200(mm) | 400*300(mm) |
| Travel-Z axis | 200mm | 200mm | 200mm | 200mm |
| Resolution | 0.05µ m | 0.05µ m | 0.05µ m | 0.05µ m |
| X, Y-axis accuracy | ± (2.5+L/150)µ m | ± (2.5+L/150)µ m | ± (2.5+L/150)µ m | ± (2.5+L/150)µ m |
| Repeatability | 0.003mm | 0.003mm | 0.003mm | 0.003mm |
| Stage size | 354*228 | 404*228 | 500*330 | 606*466 |
| Stage load capacity | 10kg | 10kg | 20kg | 30kg |
| Dimension L*W*H | 540*560*850 | 540*560*850 | 760x600x900 | 970x670x940 |
| Net weight | 98kg | 108kg | 138kg | 238kg |
Standard Delivery:
| Measuring software M2D | 1/3' ' High resolution camera | Zoom lens 0.7x-4.5x(28X-180X) |
| Capture Card | USD transfer Box | Learning kit |
Optional Delivery:
| Digital Readout MC800 | Navitar Click Zoom Lens | Navitar Zoom Lens |
| Navitar Coaxial Zoom Lens | SENTECH CCD Camera | Computer
|
