Product Specifications
| Prod Model: |
VIP-5040 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Benchtop Video Inspecting Microscope |
| Model: |
(VIP-5040) |
| Travel-X. Y Axis: |
500*400(Mm) |
| Travel-Z Axis: |
200 |
| Feed Mechanism: |
Manual |
| Resolution: |
0.0005mm |
| Measuring Unit: |
Built-in Linear Scales |
| X, Y-Axis Accuracy(µ M): |
(3+L/175) |
| Repeatability: |
0.003mm |
| Stage Glass: |
570*470mm |
Product Description

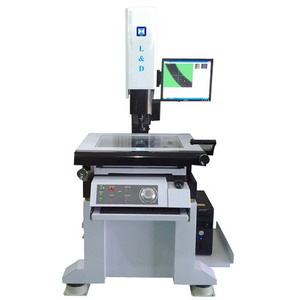

Benchtop Video Inspecting Microscope (VIP-5040)Usage:This
vision measuring system comprises of high resolution and accuracy CCD, continuous zoom lens, high precision linear scale and stage. It is a photoelectric measuring system with high precision and efficiency which is widely used in various precision industries.
Application: Suitable for electronic, molding, press, spring, screw, tool, plastic, rubber, valve, camera, bicycle, motor parts, PCB, conduction rubber, interference board, lead frame and other precision industries.
Feature:1. Granite base and Column ensure stable, accurate, and consistent measurements
2. Ergonomic design, easy to operate
3. Quick release knob on X and Y stage
| Technical parameter: |
| Model No. | VIP-5040 |
| Travel-X. Y axis | 500*400(mm) |
| Travel-Z axis | 200 |
| Feed mechanism | Manual |
| Resolution | 0.5µ m |
| Measuring unit | Built-in linear scales |
| X, Y-axis accuracy(µ m) | ± (3+L/175) |
| Repeatability | 0.003mm |
| Stage glass | 570*470 |
| Stage load capacity | 25kg |
| Illumination | Contour illumination: LED parallel lamp, Surface illumination: LED ring light |
| Video System | Navitar Zoom lens 0.7X-4.5X |
| Japan 1/2' ' color CCD camera |
|
|
| Dimension L*W*H | 1300*1120*1860 |
| Power | 110V/220V |
| Gross/Net weight | 1100KG/798kg |
