Veise (Guang Zhou) Electronics Co., Ltd. >> Best Compact Digital Camera Wireless System 2015 with High Definition

Best Compact Digital Camera Wireless System 2015 with High Definition

Name: Best Compact Digital Camera Wireless System 2015 with High Definition
Brand: china-manufacturer-directory.com
SKU: 706165202
Availability: InStock
Rating: 4.3 (34 reviews)

Supplier:	Veise (Guang Zhou) Electronics Co., Ltd.
Price:	US $ 176-211/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	EXW

Product Specifications

Prod Model:	DF-966H2362
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Free Operating Voltage:	DC10~32V
Back-Light Brightness:	400(CD/M2)
IR Led' S:	18PCS
Shockproof:	10g
Type:	Monitoring System
Application:	All-Round Monitoring
Feature:	Vandal-proof
Video Capture System:	Dome Camera
Video Transmission System:	Wireless Transmission
Software Function:	Monitoring
Software Usage:	Vehicle Monitoring Software
Client Software:	Without Client Software
Model:	Monitor Type
Sensor:	CMOS
Technology:	Wireless
Horizontal Resolution:	420tvl

Product Description

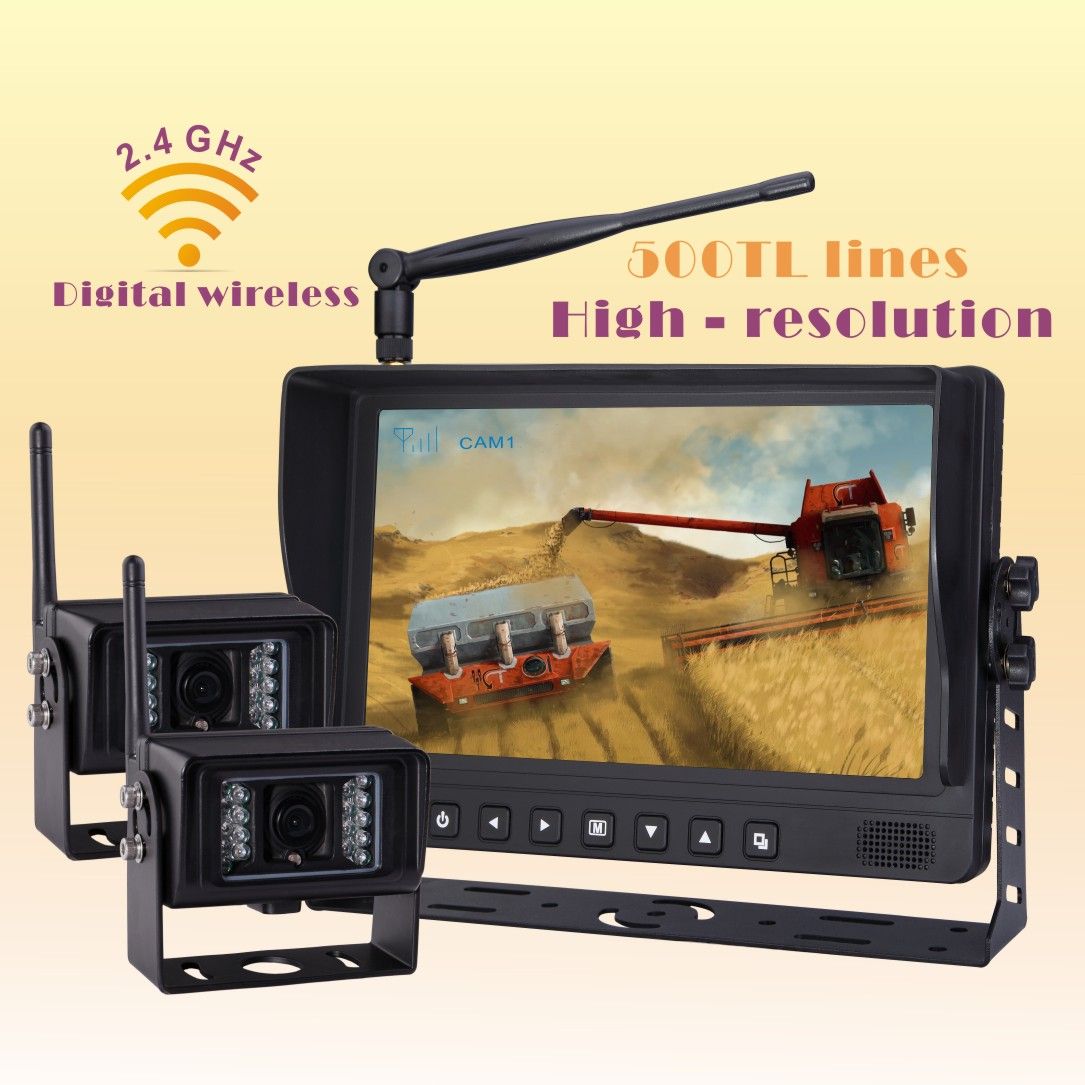

Best Compact digital camera wireless system 2015 with high definition(DF-966H2362)

9"Digital Screen TFT LCD Monitor Built-in 2.4GHz Digital Wireless Receiver, Graphical menu,
CAM1 and CAM2 individually set automatically receive image mode, CAM1 image mode automatically
Our wireless system fit to many brands including:John Deere,Ford/New Holland,Case-International,White/Oliver/Mpl Moline,Deutz,Yanmar,Gleaner,Steiger,Versatile,and more

Digital Wireless Receive Monitor(Model:SP-966H2)

9" Digital Screen TFT LCD Monitor with Removable Sun Visor

Built in 2 CH 2.4GHz Digital Wireless Receiver

Operation Frequency:2400 ~ 2483.5MHz

Receiving Sensitivity:≤ -86dBm(1MHZ QPSK MD300RE)

Overlapping Hopping Channel:80

Camera1/2 (Mirror/Normal) image

Color System:PAL/NTSC(AUTO)

Display Resolution: 800RGB(H) X 480(V) dot

Wide view angle(CR>10):(up/ down): 45/65 (left/right): 65/65

Brightness (cd/m2): 400

Contrast ratio: 500:1

Operating temperature:-20º C to +70º C

Storage temperature: -30º C to +80º C

Free Operating Voltage: DC10~32V

External dimensions:(L x W x T) ((234 x158 x 81mm)) without mounting Sun Visor

Weight Approx: 485g

Digital Wireless Waterproof IR Camera(MODEL:DF-8275SFS*2)

Image Type: 1/4 inch Color CMOS

Built in 2.4GHz Digital wireless t ransmitter

Transmission Power:18dBm with Power control

Line of Sight Range:≤100M

Horizontal Resolution:500TV Lines

Effective pixel:NTSC:640(H)X480(V);PAL:640(H)X480(V)

Usable Illumination : 0Lux ( Built in 18pcs IR LED's for Picture Support in the Dark)

Free viewing angle: 120°

Waterproof: IP69K

Shockproof: 10G

Free Operating Voltage: DC10-32 Volts

Dimensions: 106(W) x 75(H) x 70.4(D) mm (without mounting)

Weight : 450g

Accessorie

U- Support Bracket\Angle Adjustment Screw\Removable Sun Visor\Electrical Connecting Cable\Antenna*2\ Auto cigarette lighter\User's Manual

Veise (Guang Zhou) Electronics Co., Ltd. is a high-tech enterprise engaging in the R&D, selling and manufacturing of vehicle rear view monitor camera system, mobile DVR quad back up system, farm CCTV systems for car, heavy truck, trailer, SUV, farm tractor, forklift, compactor vehicle, street sweeper, mobile home, passenger bus and mining vehicle.

Since 1997, our company insists on developing innovative vehicles vision safety system for both workers and vehicles, such as can not only eradicate blind spots night-vision equipped cameras but also improve workplace safety, minimize vehicle damage, human injuries and fatalities. Independent research and development of the world's first infrared night vision waterproof camera, digital screen monitor with removable sun visor, DVR quad monitor, wireless camera monitor backup System and more.

Our company are passed the requirement from quality management system for production, such as ISO/TS16949: 2009 Advanced Product Quality Planning (APQP), Design Failure Mode and Effects Analysis(DFMEA), Process Failure Mode and Effects Analysis(PFMEA), Measurement System Analysis(MAS), Statistical Process Control(SPC), Production Part Approval Process(PPAP) to design a production approach, effectively improve the quality of company management capability and product quality.

Applying the energy-saving Low power techniques and industrial grade material quality standard, the company design all the mechanical parts pre-verification through 3D simulation minimiz mechanical and assembling errors, and protect from water and vibration. Our Producing capacity of the rear view backup camera system is: 30000 sets monitors, 40000 sets cameras per month of SMT components and simplify the process. Can provide professional OEM, ODM service.

Our company has introducted advanced production facilities and reliable test equipment: Anti load dump, Waterproof, Vibration testing instrument, Environment temperature, Salt fog detection apparatus ets, VEISE monitor camera system complies with ISO-7637-2.

Our rear view Monitor and camera has design patent, model patent. And get the MA, IP69K, EMC, FCC, RoHS, E-MARK. Without special requirements the lead-time is 2-4 weeks and warranty for 2 years.
