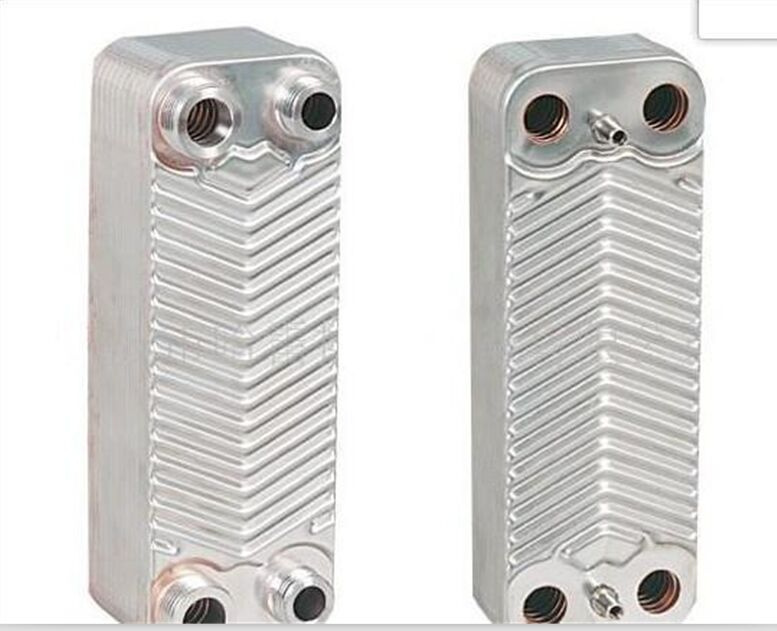

Best Quality Brazed Plate Heat Exchanger for Pool

Product Specifications

Prod Model:	JXZ30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	ISO9001
Warranty:	1 Year
Condition:	New
Location:	Factory
Principle:	Recuperative Heat Exchanger
Structure Material:	Metal Material
Application:	Condenser
Heat Transfer Surface:	Plate Heat Exchanger
Core:	Plate
Ceramic Heating Equipment Type:	Plate Heat Exchanger
Mixing Heat Exchanger Type:	Plate Heat Exchanger
Recuperative Heat Exchanger Type:	Plate Heat Exchanger

Product Description

Work principle

Fluid A passes from the port on the left of the heat exchanger through every other channel created by the plates to the opposite end port on the left of the heat exchanger (looking at it the long way). Fluid B passes from the port on the right through the other channels created by the plates and comes out the other port on the right side. The fluids are essentially touching each other through the plates and heat is transferred from the hot fluid to the cold fluid. (but the fluids do not mix)


Corrosion

Corrosion is usually how these units will fail. Use fluids with reasonable pH levels to ensure a long lasting life. Hard water will corrode faster than regular water. (Use distilled if possible; Distilled should never corrode it) Salt water will corrode stainless steel very fast. It is recommended to clean the exchanger often if you are using corrosive fluids. Normal usage (non-corrosive fluids) should expect 10-20 years of life. Fluids containing chlorides will corrode the unit quickly.

 Application

Refrigeration system
Evaporator
Condenser
Economizer and desuperheaters
Air drier
Heat pump
Absorption chiller
HVAC
Radiant floor

Provide all of the following model

Model	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	Weight(mm)	Amount of liquid (L)	Heat transfer area ()	Maximum flow (m³/h)
JXZ14	9+2.3N	76	42	206	172	0.7+0.06N	0.010(N-2)	0.014(N-2)	8
JXZ15	9+13N	80	42	190	154	0.9+0.06N	0.010(N-2)	0.014(N-2)	12
JXZ20	9+21	76	42	310	280	1.0+0.08N	0.018(N-2)	0.020(N-2)	8
JXZ25	9+1.5N	93	39	325	270	1.0+0.09N	0.014(N-2)	0.025(N-2)	8
JXZ26	9+2.45N	111	50	310	250	1.3+0.13N	0.025(N-2)	0.026(N-2)	18
JXZ26B	9+2.45N	111	50	310	250	1.3+0.13N	0.025(N-2)	0.026(N-2)	18
JXZ50V	9+2.45N	111	50	525	466	2.0+0.23N	0.047(N-2)	0.050(N-2)	18
JXZ50C	9+2.45N	111	50	525	466	2.0+0.23N	0.047(N-2)	0.050(N-2)	18
JXZ95V	11+2.43N	191	92	616	519	7.8+0.44N	0.105(N-2)	0.095(N-2)	42
JXZ95B	11+2.8N	191	92	616	519	7.8+0.44N	0.125(N-2)	0.095(N-2)	42
JXZ95C	11+2.8N	191	92	616	519	7.8+0.44N	0.125(N-2)	0.095(N-2)	42
JXZ190	13+2.65N	307	179	699	567	10+0.51N	0.217(N-2)	0.190(N-2)	140
JXZ210	12+2.78N	321	211	738	599	13.085N	0.225(N-2)	0.021(N-2)	100
