Product Specifications
| Prod Model: |
corner raduis end mills |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Grain Size: |
0.6um |
| Helix Angle: |
35 Degree |
| HRC: |
55 |
| Bending Strength: |
>=4000 |
| Coating: |
Tisin |
| Flute: |
4f |
| Samples: |
Available |
| OEM: |
Accept |
Product Description

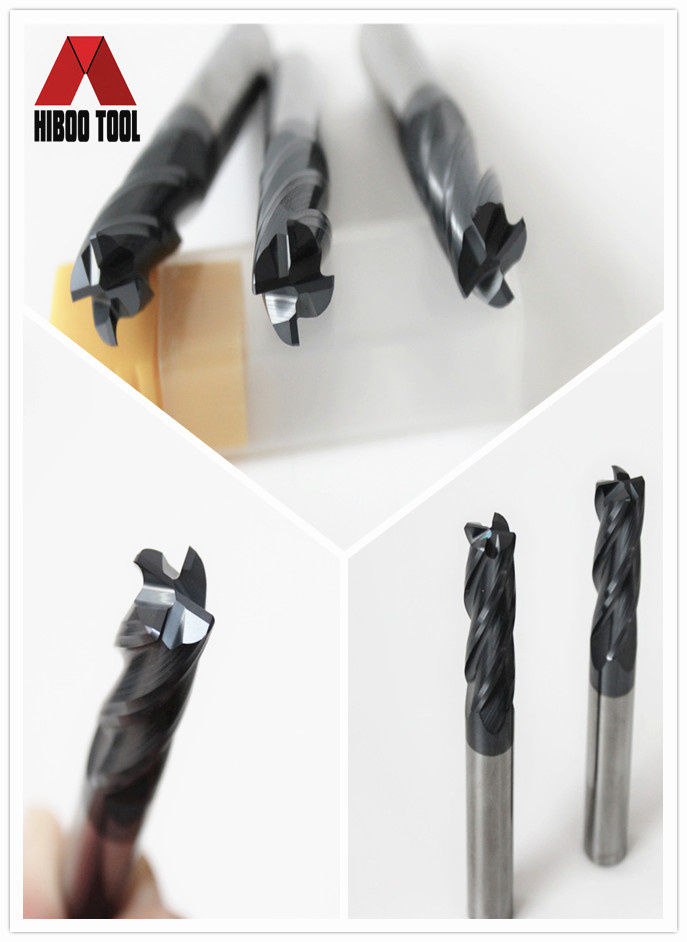

HRC55 TiSiN coated corner raduis carbide maching tools
1. HRC55 Micro grain carbide rod
| HRC55 |
| YG10.2 &WF25(Taiwan) |
Grain Size:0.6um
Co:10 %
Flexural strength:4000N/mm2 |
2. Made by world latest 5-AXIS CNC tools grinder, promise the quality and precision of cutter.
3. Super TiSiN Coating reduce the coeffiction of friction, and improve the tools life much.
| | AlTiN | TiAIN | TiSiN | Nano |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
4. Each end mill is inspected by Zoller measuring and inspected machine.
5. We accept the specification as your requirement.
6. Work Piece: Suitable for processing steel, stainless steel, nickel alloy, Titanium alloy, cast iron,
Plastic and other materials' hardness below HRC55
| order number | cutting | Flute | Shank | Corner | A.0.L | |
| d | l | D | R Corner | L | |
| 1×3×4D×R0.2×50L×4F | 1 | 3 | 4 | R0.2 | 50 | |
| 1×3×4D×R0.3×50L×4F | 1 | 3 | 4 | R0.3 | 50 | |
| 1.5×3×4D×R0.2×50L×4F | 1.5 | 4 | 4 | R0.2 | 50 | |
| 1.5×3×4D×R0.3×50L×4F | 1.5 | 4 | 4 | R0.3 | 50 | |
| 2×6×4D×R0.2×50L×4F | 2 | 6 | 4 | R0.2 | 50 | |
| 2×6×4D×R0.3×50L×4F | 2 | 6 | 4 | R0.3 | 50 | |
| 2.5×8×4D×R0.2×50L×4F | 2.5 | 6 | 4 | R0.2 | 50 | |
| 2.5×8×4D×R0.5×50L×4F | 2.5 | 6 | 4 | R0.5 | 50 | |
| 3×8×3D×R0.3×50L×4F | 3 | 8 | 3 | R0.3 | 50 | |
| 3×8×3D×R0.5×50L×4F | 3 | 8 | 3 | R0.5 | 50 | |
| 3×8×4D×R0.3×50L×4F | 3 | 8 | 4 | R0.3 | 50 | |
| 3×8×4D×R0.5×50L×4F | 3 | 8 | 4 | R0.5 | 50 | |
| 4×10×4D×R0.5×50L×4F | 4 | 10 | 4 | R0.5 | 50 | |
| 4×10×4D×R1.0×50L×4F | 4 | 10 | 4 | R1.0 | 50 | |
| 4×10×6D×R0.5×50L×4F | 4 | 10 | 6 | R0.5 | 50 | |
| 4×10×6D×R1.0×50L×4F | 4 | 10 | 6 | R1.0 | 50 | |
| 5×13×6D×R0.5×50L×4F | 5 | 13 | 6 | R0.5 | 50 | |
| 5×13×6D×R1.0×50L×4F | 5 | 13 | 6 | R1.0 | 50 | |
| 6×15×6D×R0.5×50L×4F | 6 | 15 | 6 | R0.5 | 50 | |
| 6×15×6D×R1.0×50L×4F | 6 | 15 | 6 | R1.0 | 50 | |
| 8×20×8D×R0.5×60L×4F | 8 | 20 | 8 | R0.5 | 60 | |
| 8×20×8D×R1.0×60L×4F | 8 | 20 | 8 | R1.0 | 60 | |
| 8×20×8D×R1.5×60L×4F | 8 | 20 | 8 | R1.5 | 60 | |
| 10×25×10D×R0.5×75L×4F | 10 | 25 | 10 | R0.5 | 75 | |
| 10×25×10D×R1.0×75L×4F | 10 | 25 | 10 | R1.0 | 75 | |
| 10×25×10D×R1.5×75L×4F | 10 | 25 | 10 | R1.5 | 75 | |
| 10×25×10D×R2.0×75L×4F | 10 | 25 | 10 | R2.0 | 75 | |
| 12×30×12D×R0.5×75L×4F | 12 | 30 | 12 | R0.5 | 75 | |
| 12×30×12D×R1.0×75L×4F | 12 | 30 | 12 | R1.0 | 75 | |
| 12×30×12D×R1.5×75L×4F | 12 | 30 | 12 | R1.5 | 75 | |
| 12×30×12D×R2.0×75L×4F | 12 | 30 | 12 | R2.0 | 75 | |
| | |
| 3×8×3D×R0.3×75L×4F | 3 | 8 | 3 | R0.3 | 75 | |
| 3×8×3D×R0.5×75L×4F | 3 | 8 | 3 | R0.5 | 75 | |
| 3×8×4D×R0.5×75L×4F | 3 | 8 | 4 | R0.5 | 75 | |
| 3×8×4D×R1.0×75L×4F | 3 | 8 | 4 | R1.0 | 75 | |
| 4×10×4D×R0.5×75L×4F | 4 | 10 | 4 | R0.5 | 75 | |
| 4×10×4D×R1.0×75L×4F | 4 | 10 | 4 | R1.0 | 75 | |
| 4×10×6D×R0.5×75L×4F | 4 | 10 | 6 | R0.5 | 75 | |
| 4×10×6D×R1.0×75L×4F | 4 | 10 | 6 | R1.0 | 75 | |
| 5×13×6D×R0.5×75L×4F | 5 | 13 | 6 | R0.5 | 75 | |
| 5×13×6D×R1.0×75L×4F | 5 | 13 | 6 | R1.0 | 75 | |
| 6×15×6D×R0.5×75L×4F | 6 | 15 | 6 | R0.5 | 75 | |
| 6×15×6D×R1.0×75L×4F | 6 | 15 | 6 | R1.0 | 75 | |
| 8×20×8D×R0.5×100L×4F | 8 | 20 | 8 | R0.5 | 100 | |
| 8×20×8D×R1.0×100L×4F | 8 | 20 | 8 | R1.0 | 100 | |
| 8×20×8D×R1.5×100L×4F | 8 | 20 | 8 | R1.5 | 100 | |
| 10×25×10D×R0.5×100L×4F | 10 | 25 | 10 | R0.5 | 100 | |
| 10×25×10D×R1.0×100L×4F | 10 | 25 | 10 | R1.0 | 100 | |
| 10×25×10D×R1.5×100L×4F | 10 | 25 | 10 | R1.5 | 100 | |
| 10×25×10D×R2.0×100L×4F | 10 | 25 | 10 | R2.0 | 100 | |
| 12×30×12D×R0.5×100L×4F | 12 | 30 | 12 | R0.5 | 100 | |
| 12×30×12D×R1.0×100L×4F | 12 | 30 | 12 | R1.0 | 100 | |
| 12×30×12D×R1.5×100L×4F | 12 | 30 | 12 | R1.5 | 100 | |
| 12×30×12D×R2.0×100L×4F | 12 | 30 | 12 | R2.0 | 100 | |
7.Hiboo Shipping and delivery
For samples , we dispatch your tools in 7 workdays .
For formal orders,We delivery tools to you in 7-30 workdays , it will depond on your order quantity .
8.Why Choose Hiboo Tools
several years' professional producting and exporting experience
Advanced RD department meet your special demands
High precision CNC machines,high standard and strict inspection
Custom demand are welcomed ,OEM and ODM Service
All payment terms supported
Fast delivery time and Convenient Transportations
More than 2000 products are available
For your suggestions or complaints,We will handle them Soonest
We located In Changzhou City, About 1 Hours from Shanghai, China. We has committed to manufacturing solid carbide end mills, Drills, reamers, Inserts, Both standard and Nonstandard tools, offering high quality cutting tools, competitive price and unequaled customer service.
Our carbide cutting tools For the medical fields including Orthodontics, Orthopedics, Catheters, and Surgical instruments; For the automotive parts and engines, motorcycles, snowmobiles, and bicycle industries; For pattern and mold makers; For general manufacturing in marine, recreational and consumer products industries; For the plastics industry, and For the woodworking industry.
Efficient workshop and 5AXIS grind machines run by skillful operators. We have our partners as complementarities sited around our factory in 5 Km who is product turning tools, holder And others, they are all around our factory in 5 Km. So, you can trust us that we must satisfy your needs.
We earned reputation of good quality, Fast producting, Delivery in time, reliable service. Hiboo will continue to introduce some new series of tools to meet different requirements. Sincerely Welcome to inquiry products and visit our company, thanks.
