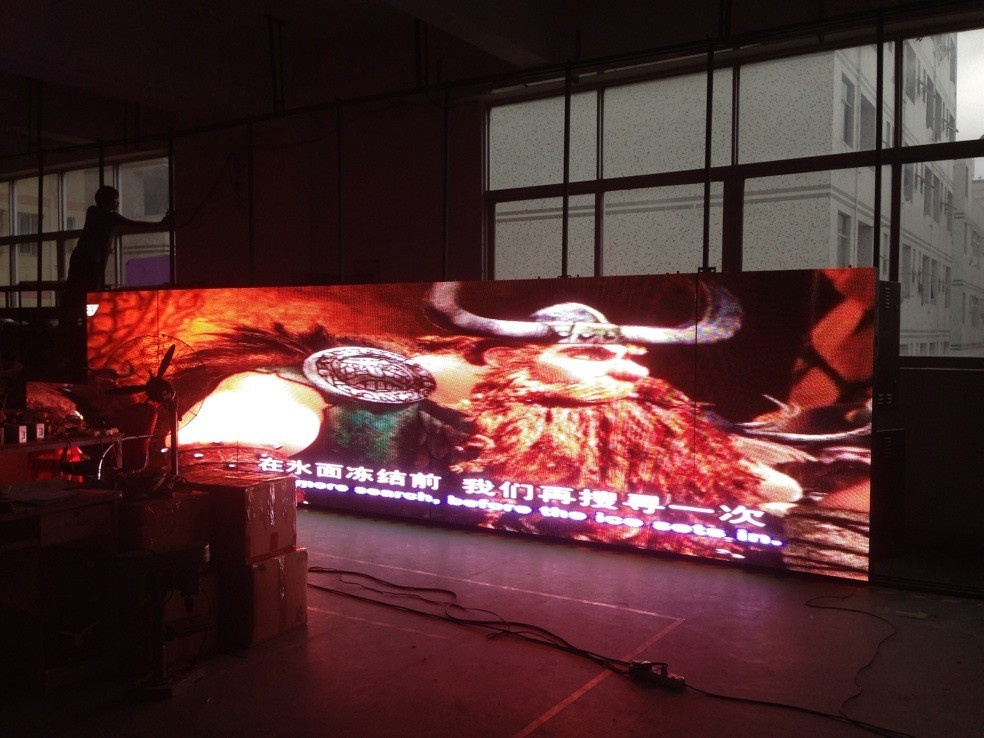

Best Viewing Angle Indoor P8 Full Color LED Display

Name: Best Viewing Angle Indoor P8 Full Color LED Display
Brand: China-Manufacturer-Directory.com
SKU: 738321085
Availability: InStock
Rating: 4.3 (69 reviews)

Supplier:	Shenzhen Foxgolden Technology Limited
Price:	US $ 10/Square Meter
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	FOX indoor p8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Physical Pixel Pitch:	8 Mm
Module Resolution:	32*16 Pixels
Module Size:	256*128 Mm
Physical Resolution:	128*98 Pixels
Cabinet Size:	1024768(100-120) Mm
Physical Density:	12288 Pixels/Cabinet
Brightness:	≥ 1000 CD/M 2
Power Supply:	AC 110 / 220V, 50/60Hz
Average Power Consumption:	400 W/M 2
Control System:	Linsn
Tube Chip Color:	Full Color
Display Function:	Video Display
Scanning Mode:	1/4 Scan
Application:	Shopping Guide
Pixel Configuration:	1R,1G,1B
Certification:	UL
Pixel Pitch:	8mm
IP Rating:	IP20-IP45
Pixel Density:	15625dots/Sqm

Product Description

High resolution indoor full color SMD P8 LED display
1. Long lifespan
2. Large view angle
3. Hi-brightness
4. Good after-sales

Application: Entertainment center, stage background, train station, exitbition, shopping center, stadium etc.

Item	Parameter
Pixel	Physical pixel pitch: 8 mm
	Pixel configuration: 1R1G1B		Chip	Wave	Brightness	Packing
		R	Opto	620-625nm	250-350mcd	SMD3528
		G	Silan	525-530nm	600-700mcd	SMD3528
		B	Silan	465-470nm	100-150mcd	SMD3528
Module	Module resolution: 32*16 pixels
	Module size: 256*128 mm
Cabinet	Physical resolution: 128*98 pixels
	Cabinet size: 1024768(100-120) mm
	Physical density: 12288 pixels/cabinet
	Module quantity: pcs = 4 (w) x 6 (h)
	Material: Steel
	Weight: 32 Kg
Electricity parameter	Brightness: ≥ 1000 cd/m 2
	Brightness adjusted: 100 grade by software, or by Auto-optic induced
	Color processing: 16bit
	Display color: 280 trillion
	Color temperature(k): 5000_ 9500 (choice by user)
	Physical density: 15625 pixels/m 2
	Whole display flatness: ≤ 1mm juncture
	Best view distance: ≥ 13m
	Best view angle: Horizontal ± 140° , Vertical ± 140°
	Storage temperature: -35° C ~ +85° C Working temperature: -20° C ~ +50° C
	Driving method: Constant driving current Scan: 1/8
	Refresh frequency: ≥ 2000Hz
	Frame rate: ≥ 60Hz
	Humidity(RH): ≤ 90~95%
	Protection grades : IP65
	Working Voltage: DC 5V
	Power supply: AC 110 / 220V, 50/60Hz
	Average power consumption: 400 w/m 2
	Max power consumption: 800 w/m 2
	MTBF: 10, 000 hours
	Screen lifetime: 100, 000 hours
Control system	Control system: Linsn
	Signal interface: DVI
	Communication distance: Internet cable: ≤ 100m Fiber cable: 1000m
	Signal transfer mode: Pixels to pixels display synchronized
