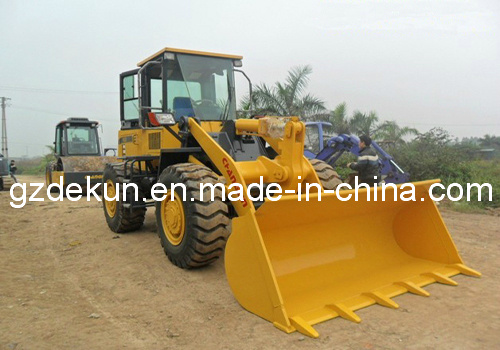

Best Wheel Loader with Cheap Price 936 3 Tons Loading

Name: Best Wheel Loader with Cheap Price 936 3 Tons Loading
Brand: China-Manufacturer-Directory.com
SKU: 718890175
Availability: InStock
Rating: 4.5 (59 reviews)

Supplier:	Guangzhou Dekun Construction Machinery Co., Ltd.
Price:	US $ 1-10/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Bucket Capacity:	1.7 Cbm
Rated Load:	3tons
Operating Weight:	10200kg
Lifting Time:	5.1s
Lowering Time:	3s
Dumping Time:	1.1s
Walking Mode:	Wheeled
Condition:	New
Type:	Small Loader
Certification:	ISO9001: 2000
Load And Unload Method:	Disable The Cab and Bucket

Product Description

Features of 936 wheel loader for sale:

1)Adopting the new DEUTZ engine, strong power, low fuel consumption.

2)Bivariate system uses a unique sub-structure, easy maintenance and smooth power transmission.
3)Unit time for loading and unloading of materials Σ T = t1 + t2 + t3 = 9.2s.

4)The state-of-the-art hydraulic system design, not only to improve the work system's ability to shovel, but also the oil temperature of the hydraulic system, so that prolong the service life of the hydraulic components.

5)Can be equipped with automatic hammer, snow-shoving board, coal buckte, rock bucket, high-dump device are available.

Main Specification	Units
Rated load	kg	3000
Operating weight	kg	10200
Bucket capacity	CBM	1.7
Max.digging force	kN	96
Max.traveling force	kN	105
Engine model		Deutz TD226B/YuchaiYC6B125
Rated Power	kw	92
Rated Speed	r/min	2200
Min.fuel Consumption	g/kw.h	Less or Equal 225
Max.Torque	N.m	500
Transmission System
Torque converter type		Single stage,single phase,three elements
Cooling ways		Oil cooling,pressure circling
Transmission type		Spur gear parallet shaft,constant-mesh
Shifts(Foward/Reverse)		F3/R3
Forward travelling speed
I Gear	km/h	6.6
II Gear	km/h	13.8
III Gear	km/h	30.1
Reverse travelling speed
I Gear	km/h	8.2
II Gear	km/h	17
III Gear	km/h	29
Axles and Main drive
Drive system		Four-wheel driving
Main drive type		One spiral bevel gear ,stllge ,one-stage
Gear ratio		3.889
Hub reduction		Planetary gear tow-stage
Gear ratio		4.941
Max.grade ability		27°
Steering System
Type		Middle articulated frame,Co-axis flow amp.steering
Steering angle		±38°
Min.steering radius	mm	4885
Displacement of the redirecter	ml/r	400
Mode of steering pump		Gear pump
Steering cylinders inner Bore*Stroke	mm	2-Φ70*357
Operation pressure	MPa	14
Brake System
Travel brake type single-pipe,air over hydraulic caliper disc brake ,activate 4-wheel brake
Service brake type : air control,clamp brake
Operation hydraulic System
Type		Cable Shifting
No. of Cylinder-Bore*Stroke		2-Φ125*697
Dump cylinder		1-Φ150*470
Multi-valve		Hydraulic multi-valve
System operation pressure	MPa	16
Lifting time	s	5.1
Lowering time	s	3
Dumping time	s	1.1
Tyre
Standard tyre		17.5-25-12PR
Tyre pressure	MPa	0.275-0.294
Refill Capacity
Fuel tank	L	130
Engine crank case	L	17
T/C and Transmission	L	35
Hydraulic tank	L	120
Axles main drive	L	2*11
Hub reduction	L	4*1.5
Brake system	L	2*0.5
Work Equipment
Strong Z-bar structure provides strong breakour force.
Dumping clearance (at dumping angle 45 °)	mm	2934
Dumping reach (at dumping angle 45 °)	mm	1043
