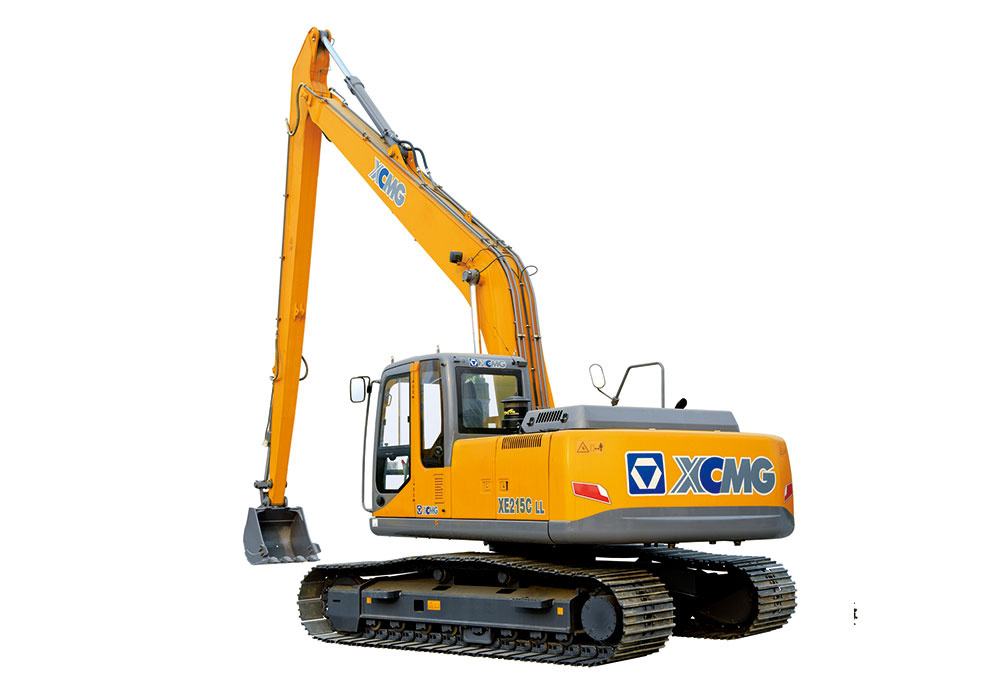

Best XCMG Crawler Excavator Xe215cll

Name: Best XCMG Crawler Excavator Xe215cll
Brand: china-manufacturer-directory.com
SKU: 766960195
Availability: InStock
Rating: 4.8 (139 reviews)

Supplier:	Anhui Hengfei Import and Export Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	XE215CLL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Overall Length:	12050mm
Overall Width:	3190mm
Overall Height:	3150mm
Type:	Crawler Excavator
Size:	Medium-Sized
Certification:	ISO9001: 2000
Condition:	New

Product Description

XCMG Medium-sized Crawler Excavator XE215CLL of high quality with a reasonable price.

PARAMETER SPARE

Model	Unit	XE215CLL
Operating weight		kg	22350
Standard bucket capacity		m³	0.5
Engine	Engine Model	/	ISUZU BB-6BG1TRP
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	√
	Air to air intercooler	/	×
	No. of cylinders	/	6
	Rated power/speed	kw/rpm	106.5/1950
	Max. torque/speed	N.m	551/1600
	Displacement	L	6.494
The main performance	Travel speed	km/h	5.5/2.8
	Swing speed	r/min	12.2
	Max. gradeability	/	≤35
	Ground pressure	kPa	36.2
	Max.Bucket digging force	kN	78.7
	Max.arm crowd force	kN	40
	Max.traction force	kN	179
Hydraulic system	Main pump	/	2 Plunger pump
	Rate flow of main pump	L/min	2×206
	Max pressure of prime relief valve	MPa	32.3/34.3
	Max pressure of travel system	MPa	34.3
	Max pressure of swing system	MPa	28
	Max pressure of pilot system	MPa	3.9
Oil capacity	Fuel tank capacity	L	360
	Hydraulic tank capacity	L	220
	Engine lubrication	L	25
Overall dimensions	A Overall length	mm	12050
	B Overall width	mm	3190
	C Overall height	mm	3150
	D Overall width of upperstructure	mm	2710
	E Track length	mm	4255
	F Overall width of undercarriage	mm	3190
	G Crawer width		800
	H Track length on ground	mm	3462
	I Crawer gauge	mm	2390
	J Clearance under counter weight	mm	1060
	K Ground clearance	mm	470
	L Min.tail swing radius	mm	2750
Working range	A Max. digging height	mm	13250
	B Max. dumping height	mm	10942
	C Max. digging depth	mm	11690
	D 8inch horizonal digging depth	mm	---
	E Max. vertical wall digging depth	mm	11200
	F Max. digging reach	mm	15394
	G Min. swing radius	mm	4835
	Angle of arm deflection	Degree
